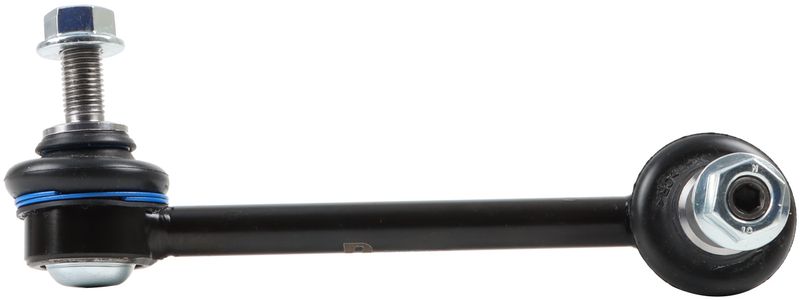

Delphi TC4813 Suspension Stabilizer Bar Link - Rear Right

Delphi TC4813 Rear Right Stabilizer Bar Link

Delphi TC4813 is a rear right suspension stabilizer bar link built as a standard replacement for select Tesla applications. It uses ball joint ends, a steel housing, and a rubber dust boot to support consistent suspension connection and OE-style fitment.

Key Features

• Part number: TC4813
• Rear right suspension stabilizer bar link
• Standard replacement grade
• Ball joint ends on both sides
• Steel housing with rubber boot
• Dust boot included
• Locking nuts and hardware included
• Bar diameter: 12.00 mm
• Length: 144.00 mm
• Wrench size: 10 mm

Fitment

• Fits 2017-2025 Tesla 3, rear right.
• Fits 2022-2023 Tesla S, rear right.
• Fits 2022-2023 Tesla X, rear right.
• Fits 2020-2023 Tesla Y, rear right.

Detailed Description

Delphi applies OE-focused dimensional and material analysis to this rear stabilizer bar link to help match the original suspension geometry and connection points. The TC4813 is engineered for the rear right position and is listed for Tesla 3, Tesla S, Tesla X, and Tesla Y applications across the model years shown. This part cross-references MOOG Chassis Products K750961 for the same application.

Built with a steel housing, plastic bearing material, and rubber boot material, this stabilizer link is specified as non-greaseable and non-reinforced. The ball joint design at both ends supports suspension articulation, while the included dust boot helps protect the joint area from road contamination. Delphi TC4813 is a direct-fit style replacement for drivers servicing rear suspension noise, looseness, or worn link components on Tesla 3, Tesla S, Tesla X, and Tesla Y vehicles.

Common Uses

• Replacing a worn rear sway bar link
• Addressing clunking or rattling from the rear suspension
• Restoring stabilizer bar connection integrity
• Correcting looseness at the rear right suspension link
• Servicing OE-style suspension wear on Tesla models

Installation Notes

Install at the rear right suspension position only. Verify the bar length, end type, and mounting orientation before installation, and confirm the vehicle application against the fitment list. The included locking nuts and hardware support installation, and the 10 mm wrench size should be matched to the fastener specification during service.

Quality Assurance

Delphi tests steering and suspension components for extreme temperature exposure and salt spray resistance, and uses dimensional and material analysis to support OE-level fitment consistency. Part number TC4813 is built to Delphi’s OE-oriented standards for aftermarket replacement use.
