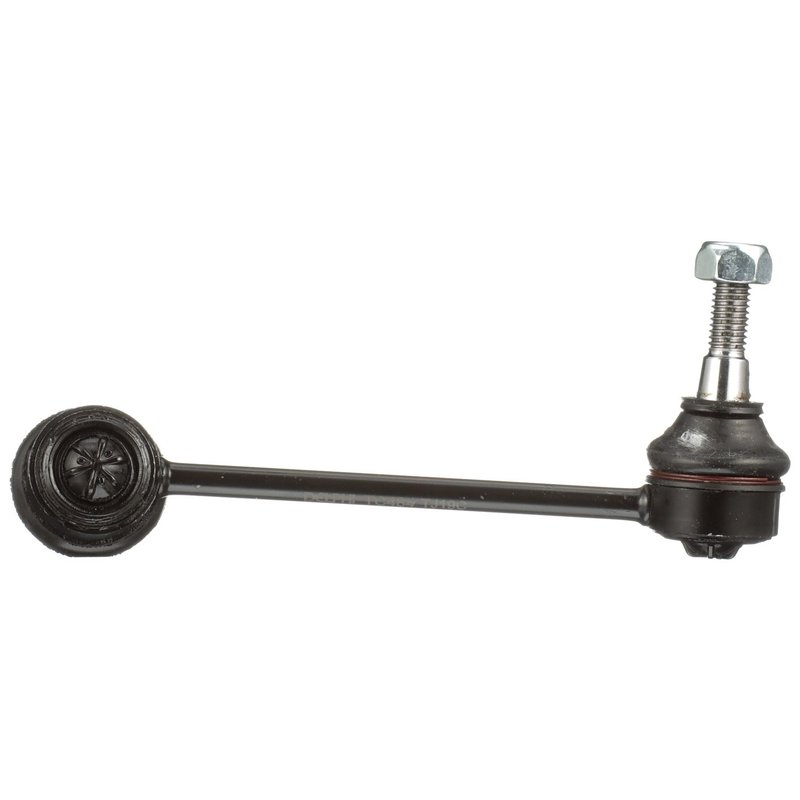

Delphi TC484 Suspension Stabilizer Bar Link - Front Left

Delphi Suspension Stabilizer Bar Link for Mercedes-Benz Vehicles

The Delphi TC484 suspension stabilizer bar link is engineered for front left suspension systems on select Mercedes-Benz models. Constructed from durable steel with integrated ball joint ends, this component ensures reliable performance and precise handling for vehicles such as the 300SD, 500SEL, and S500.

• Made from high-strength steel for durability and corrosion resistance
• Features ball joint ends on both sides for smooth articulation
• Includes a dust boot to protect internal components from contaminants
• Black rubber bushings for vibration dampening (bushings not included)
• Compatible with front left position on multiple Mercedes-Benz models
• Locking nuts included for secure installation
• Standard replacement grade for reliable everyday use

Product Details and Specifications

The Delphi TC484 suspension stabilizer bar link measures approximately 152 mm (5.984 inches) in length, with a width of 65 mm (2.559 inches) and a height of 73 mm (2.874 inches). Both ends feature ball joints that provide the necessary flexibility and movement within the suspension system. The housing and main body are constructed from steel, ensuring strength and longevity under typical driving conditions. The bushings are made from rubber, while the bearing material is polyoxymethylene (POM), which offers low friction and wear resistance. This part is designed without grease fittings and does not include bushings, washers, or bolts, but it does come with locking nuts to secure the assembly. The bolt thread size is M12 x 1.50, with a bolt length of 152 mm (5.984 inches).

Compatible Mercedes-Benz Models

This suspension stabilizer bar link is compatible with a range of Mercedes-Benz vehicles, including but not limited to the 300SD, 300SE, 350SDL, 400SE, 400SEL, 500SEC, 500SEL, 600SEC, 600SEL, CL500, CL600, S320, S350, S420, S500, and S600. It is specifically designed for the front left position, ensuring proper fit and function within the suspension system of these models.

Common Applications and Problem Resolution

• Reduces excessive body roll during cornering
• Eliminates clunking noises from worn stabilizer links
• Restores proper suspension alignment and handling
• Prevents premature tire wear caused by suspension play
• Improves overall vehicle stability and ride comfort

Installation Notes and Tips

When installing the Delphi TC484 stabilizer bar link, ensure the vehicle is securely lifted and supported. Remove the old stabilizer link carefully, noting the orientation and position. Use the included locking nuts to secure the new link, tightening to manufacturer torque specifications. Since this part is not greaseable, avoid forcing the ball joints during installation to prevent damage. Verify proper alignment and suspension movement after installation.

Quality Assurance and Warranty

Delphi suspension components are manufactured to meet or exceed OEM standards. The TC484 stabilizer bar link is a standard replacement grade part, designed for reliable performance and durability. It includes locking nuts for secure installation. Please refer to Delphi's warranty policy for specific coverage details.
