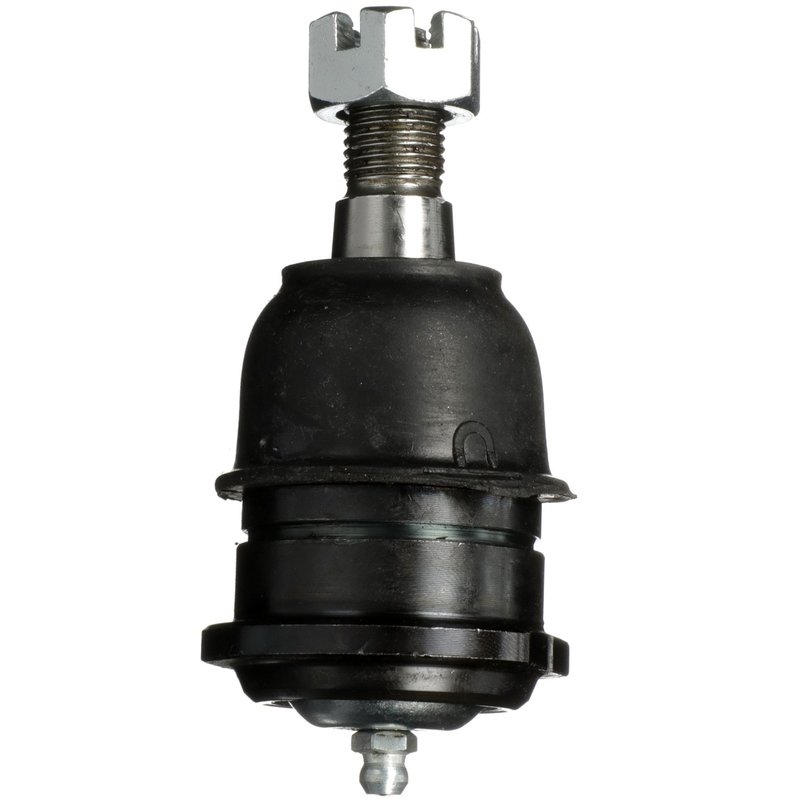

Delphi TC5040 Suspension Ball Joint - Front Lower

Delphi Suspension Ball Joint for Nissan 200SX and Maxima

The Delphi TC5040 suspension ball joint is engineered for reliable performance in Nissan vehicles such as the 200SX, 810, and Maxima. Designed with durable steel construction and a pressed mounting type, this ball joint supports stable suspension operation and precise steering control.

• Constructed from high-strength steel for durability
• Includes a grease fitting for easy maintenance
• Equipped with a chloroprene rubber dust boot to protect against contaminants
• Pressed mounting type with tapered threaded stud for secure fitment
• Compatible with Nissan 200SX, 810, and Maxima models
• Mounting hardware and nuts included for installation
• Standard suspension grade type for everyday driving conditions

Product Details and Specifications

The Delphi TC5040 suspension ball joint features a maximum outside diameter of 64.0 mm (2.52 inches) and a length of 64 mm, providing a precise fit for compatible Nissan models. The stud thread diameter measures 22.2 mm (0.875 inches) with a threaded stud length of 22.2 mm (0.874 inches), ensuring secure attachment. The ball joint assembly includes a dust boot made from chloroprene rubber (CR), which offers resistance to wear and environmental elements. This assembly is designed without bushings but includes mounting hardware and nuts, facilitating a straightforward installation process. The cotter pin hole is present, although the cotter pin and castle nut are not included.

Applications and Problem Solving

This suspension ball joint is intended for use in the front suspension system of Nissan 200SX, 810, and Maxima vehicles. It addresses common suspension issues such as:

• Excessive play or looseness in the steering linkage
• Uneven tire wear caused by worn ball joints
• Clunking noises during suspension movement
• Reduced steering responsiveness and control
• Protection against dirt and moisture infiltration with the included dust boot

Installation Notes and Tips

Installation of the Delphi TC5040 ball joint requires pressing the unit into the suspension arm. Ensure the tapered threaded stud aligns correctly with the mounting points on the vehicle. Use the included mounting hardware and nuts to secure the ball joint assembly. Grease the fitting after installation to maintain smooth operation and extend service life. Verify the cotter pin hole alignment for safety, although the cotter pin itself is not included.

Quality Assurance and Warranty

Delphi suspension components are manufactured to meet OEM standards for fit, form, and function. The TC5040 ball joint undergoes rigorous quality control to ensure durability and performance in Nissan 200SX, 810, and Maxima models. While specific warranty details are not provided, Delphi products typically come with a limited warranty against defects in materials and workmanship.
