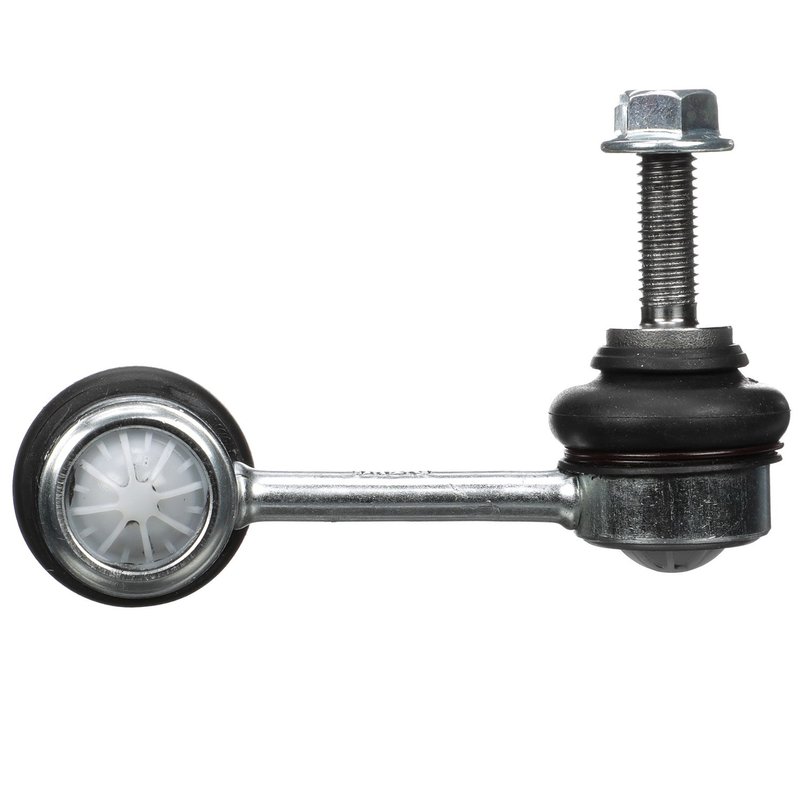

Delphi TC5065 Suspension Stabilizer Bar Link - Rear Left
| Brand | Delphi TC5065 |
|---|---|
| Position | Rear Left |
| Bearing Material | Plastic |
| Bolt Head Diameter | 10.0 |
| Bolt Length | 1.406 |
| Bolt Length | 35.7 |
| Bolt Thread Diameter | 10.0 |
| Bolt Thread Size | 10 |
| Bolts Included | No |
| Bushing Color | Black |
| Bushings Included | No |
| Dust Boot Included | Yes |
| End 1 Type | Ball Joint |
| End 2 Type | Ball Joint |
| Grade Type | Regular |
| Greaseable | No |
| Height | 3.15 |
| Height | 80.0 |
| Housing Material | Steel |
| Item Grade | Standard Replacement |
| Length | 3.346 |
| Length | 85.0 |
| Locking Nuts Included | Yes |
| Material | Steel |
| Washers Included | No |
| Weight | 0.18 |
| Width | 3.15 |
| Width | 80.0 |
| Fits | Porsche · 9 vehicles |
Standard replacement. OE expertise and dimensional analysis help ensure compatibility.
Steel construction. Built with a steel housing and ball joint ends for dependable strength.
Dust boot included. Helps protect the joint from dirt and moisture.
Cross-references 997 333 069 05, 997 333 069 06 and K750595 for the same application. See all 3.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Delphi Rear Left Stabilizer Bar Link TC5065
Delphi TC5065 is a rear left suspension stabilizer bar link built for OE-style replacement on select Porsche 911 models. It uses steel construction, ball joint ends, and a dust boot to support consistent sway bar connection and suspension response.
Key Features
- Fits 2006-2013 Porsche 911, rear left
- Also listed for 2005 Porsche 911, rear left, optional
- Steel housing and steel construction
- Ball joint ends on both sides for stabilizer bar linkage
- Dust boot included; bushings, washers, bolts, and grease fittings not included
- Standard replacement part with black bushing color and locking nuts included
- Delphi part number TC5065 for direct catalog lookup
Detailed Description
Delphi TC5065 is a suspension stabilizer bar link for the rear left position on Porsche 911 applications. It is engineered with OE-focused dimensional and material analysis to match the original part more closely, helping maintain proper sway bar connection geometry and suspension feel. Delphi subjects steering and suspension components to extreme temperature and salt-spray testing to verify durability in demanding conditions. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application. Delphi TC5065 is a practical OE replacement choice for Porsche 911 rear suspension service.
Common Repair Symptoms
- Clunking or knocking from the rear suspension
- Loose or imprecise handling during cornering
- Excessive sway bar movement or worn linkage play
- Uneven rear suspension response over bumps
- Visible wear at the stabilizer bar link joints or boots
Installation Notes and Tips
Verify rear left fitment before ordering, especially on the 2005 Porsche 911 where application is listed as optional. Inspect the sway bar, mounting points, and adjacent suspension hardware for wear before installation. Torque fasteners to the vehicle manufacturer’s specifications and confirm the link seats correctly without preload.
Quality Assurance
Delphi applies OE-level engineering and material analysis to its aftermarket steering and suspension portfolio. TC5065 is tested for temperature extremes and corrosion exposure to support dependable service in real-world driving conditions.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2013 | Porsche | 911 | Rear Left | — |
| 2012 | Porsche | 911 | Rear Left | — |
| 2011 | Porsche | 911 | Rear Left | — |
| 2010 | Porsche | 911 | Rear Left | — |
| 2009 | Porsche | 911 | Rear Left | — |
| 2008 | Porsche | 911 | Rear Left | — |
| 2007 | Porsche | 911 | Rear Left | — |
| 2006 | Porsche | 911 | Rear Left | — |
| 2005 | Porsche | 911 | Rear Left | Optional |
