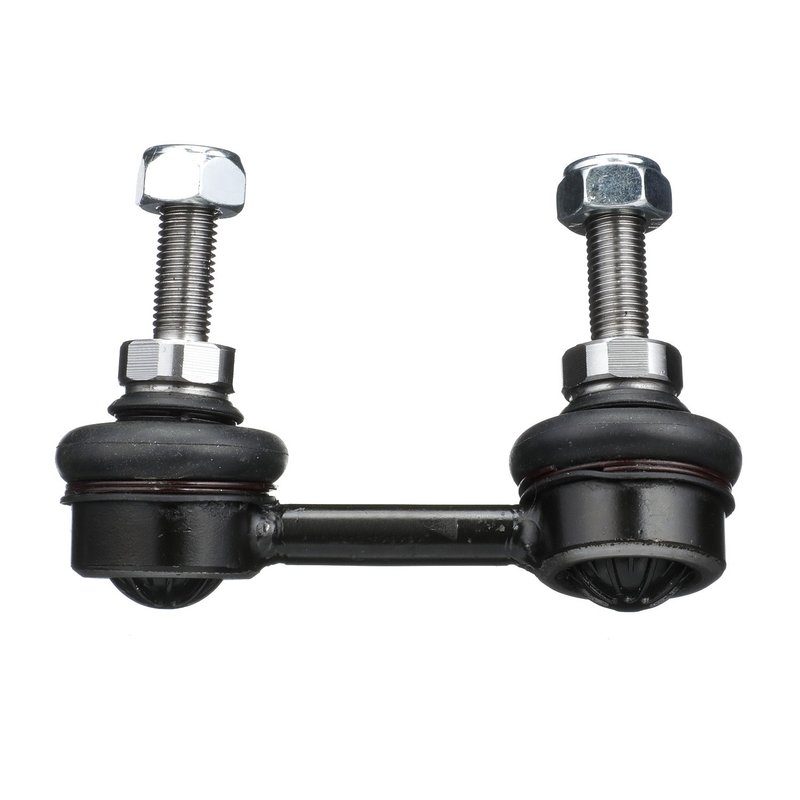

Delphi TC5067 Suspension Stabilizer Bar Link - Rear Right
| Brand | Delphi TC5067 |
|---|---|
| Position | Rear Right |
| Bearing Material | Plastic |
| Bolt Head Diameter | 10.0 |
| Bolt Length | 1.181 |
| Bolt Length | 30.0 |
| Bolt Thread Diameter | 10.0 |
| Bolt Thread Size | 10 |
| Bolts Included | No |
| Bushings Included | No |
| Dust Boot Included | Yes |
| End 1 Type | Ball Joint |
| End 2 Type | Ball Joint |
| Grade Type | Regular |
| Greaseable | No |
| Height | 3.15 |
| Height | 80.0 |
| Housing Material | Steel |
| Item Grade | Standard Replacement |
| Length | 2.953 |
| Length | 75.0 |
| Locking Nuts Included | Yes |
| Material | Steel |
| Washers Included | No |
| Width | 1.772 |
| Width | 45.0 |
| Wrench Size | 19.0 |
| Fits | Nissan · 9 vehicles |
Standard replacement. OE expertise helps ensure compatibility with the aftermarket part.
Steel construction. Built with ball joints and a dust boot for dependable suspension function.
OE-tested durability. Withstands extreme temperatures and 720 hours of salt spray.
Cross-references Beck/Arnley 101-7962, MOOG Chassis Products K750663 and 56261-3TA0A for the same application. See all 4.
Rear Right Stabilizer Bar Link for Nissan
Delphi TC5067 is a rear right suspension stabilizer bar link built with steel construction and ball joint ends for OE-style suspension service. It is a standard replacement part for select Nissan Altima and Nissan Maxima applications, with fitment focused on the rear right position.
Key Features
- Steel housing and steel construction for suspension durability
- Ball joint ends on both sides for stabilizer bar connection
- Dust boot included to help protect the joint area
- Locking nuts included
- Standard replacement design for OE-style fit and function
- Rear right position application
- Delphi part number TC5067
Detailed Description
Delphi TC5067 is engineered as a suspension stabilizer bar link for the rear right side. It measures 75.0 mm in length, 45.0 mm in width, and 80.0 mm in height, with a 10 mm bolt thread size and a 19 mm wrench size. The link uses ball joint ends at both connections, a plastic bearing material, and a dust boot for added joint protection. Delphi applies dimensional and material analysis to support OE-style compatibility, and its testing includes exposure to extreme temperatures and extended salt spray conditions. This part cross-references Beck/Arnley 101-7962 for the same application.
Vehicle Fitment
- Fits 2013-2018 Nissan Altima, rear right.
- Fits 2016-2018 Nissan Maxima, rear right.
Common Repair Symptoms
- Clunking or rattling from the rear suspension
- Excess body roll during cornering
- Loose or unstable rear-end handling
- Worn or noisy stabilizer bar link joints
- Suspension play at the rear right corner
Installation Notes and Tips
Install this link at the rear right suspension position only. Verify the existing link length, thread size, and end style before installation, and inspect the stabilizer bar and adjoining suspension components for wear. Because locking nuts are included, confirm thread engagement and torque fasteners to the vehicle manufacturer’s specification.
Quality Assurance
Delphi backs this suspension link with OE-focused engineering practices, including dimensional checks, material analysis, temperature cycling, and salt spray testing to support consistent aftermarket replacement performance.
| Year | Make | Model | Body Type | Position | Notes |
|---|---|---|---|---|---|
| 2018 | Nissan | Altima | — | Rear Right | — |
| 2018 | Nissan | Maxima | — | Rear Right | — |
| 2017 | Nissan | Altima | — | Rear Right | — |
| 2017 | Nissan | Maxima | — | Rear Right | — |
| 2016 | Nissan | Altima | — | Rear Right | — |
| 2016 | Nissan | Maxima | — | Rear Right | — |
| 2015 | Nissan | Altima | — | Rear Right | — |
| 2014 | Nissan | Altima | — | Rear Right | — |
| 2013 | Nissan | Altima | Sedan | Rear Right | — |
