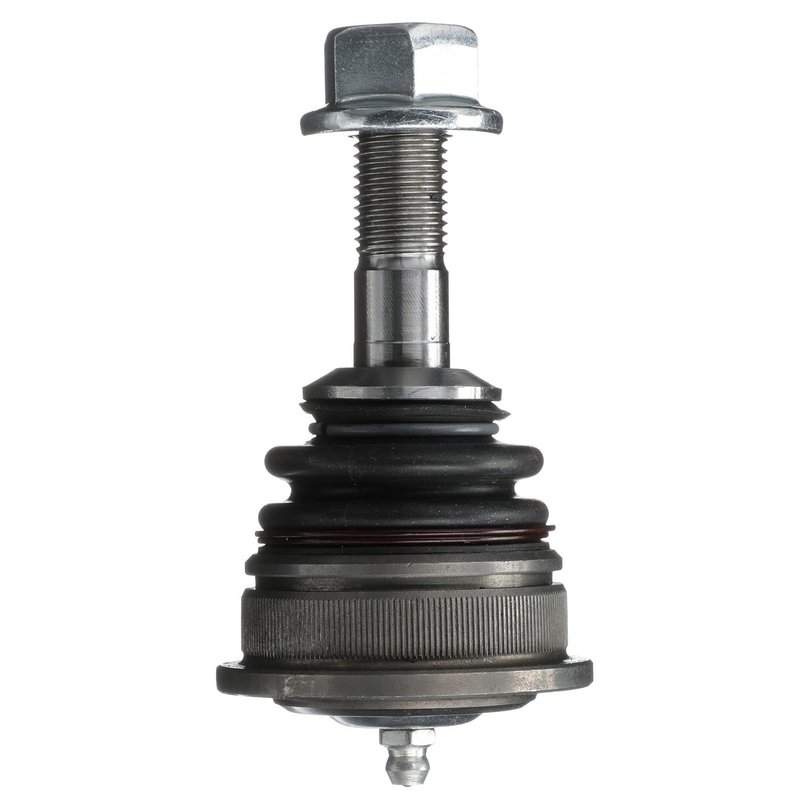

Delphi TC5085 Suspension Ball Joint - Front Upper

Delphi Suspension Ball Joint TC5085 Overview

The Delphi TC5085 suspension ball joint is engineered for front upper suspension applications on select Ford and Mercury vehicles. Designed with durable materials and precise specifications, this ball joint supports reliable steering and suspension performance for models like the Ford Crown Victoria, Mercury Grand Marquis, and Marauder.

• Constructed with alloy steel SAE 5140 ball material and carbon steel housing for strength
• Includes a chloroprene rubber dust boot to protect against contaminants
• Pressed mounting type for secure installation
• Comes with mounting hardware and nuts included
• Standard replacement grade suitable for front upper suspension position

Technical Specifications and Features

The Delphi TC5085 ball joint features a gray finish and is built to meet OEM standards. The stud thread diameter measures 14.0 mm with a thread pitch of 1.5 and a length of 23.0 mm, ensuring compatibility with the specified vehicle models. The assembly includes a dust boot made from durable chloroprene rubber (CR) to maintain joint integrity by preventing dirt and moisture ingress. The overall width is 36.6 mm, and the height is approximately 84.7 mm, designed to fit the front upper suspension position precisely. This ball joint does not include bushings, castle nuts, cotter pins, or washers but does come with necessary mounting hardware and nuts for installation.

Compatible Vehicles and Applications

This suspension ball joint is compatible with the following vehicles:

• Ford Crown Victoria (front upper suspension)
• Mercury Grand Marquis (front upper suspension)
• Mercury Marauder (front upper suspension)

Part number TC5085 is specifically designed to meet the suspension requirements of these models, providing a direct replacement for worn or damaged ball joints.

Common Issues Addressed by Delphi TC5085 Ball Joint

• Excessive play or looseness in the front upper suspension
• Uneven tire wear caused by worn ball joints
• Steering instability or wandering
• Clunking or knocking noises during suspension movement
• Reduced suspension responsiveness and handling performance

Installation Notes and Tips

Installation of the Delphi TC5085 ball joint requires pressing the unit into the suspension arm. Ensure the mounting surfaces are clean and free of debris before installation. Use the included mounting hardware and nuts to secure the ball joint properly. Since this part does not include a castle nut or cotter pin, verify if your vehicle requires these components separately. Proper torque specifications should be followed according to the vehicle manufacturer’s guidelines to ensure safe and effective installation.

Quality Assurance and Warranty

The Delphi TC5085 suspension ball joint is manufactured to meet standard replacement grade requirements, ensuring reliable performance and durability. Delphi provides quality assurance through rigorous testing and material standards. While specific warranty details may vary, Delphi typically offers coverage against manufacturing defects to support customer confidence in the product’s longevity and function.
