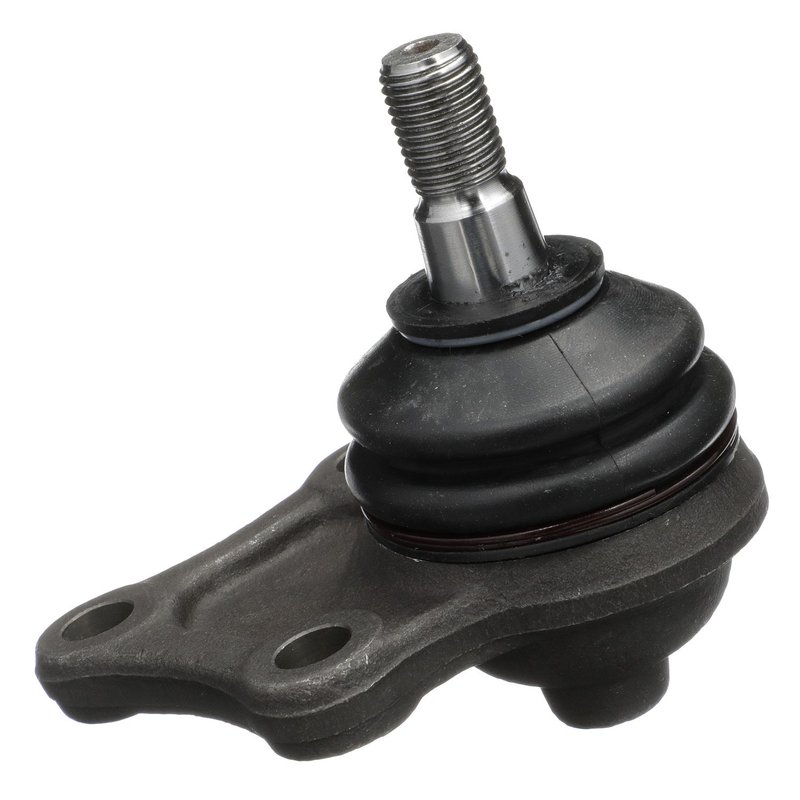

Delphi TC5088 Suspension Ball Joint - Front Lower

Delphi Suspension Ball Joint TC5088 Overview

The Delphi TC5088 suspension ball joint is engineered for reliable performance in Ford B2000 and Mazda Courier vehicles. Designed with durable materials and precise specifications, this ball joint supports smooth steering and suspension operation.

• Ball material: alloy steel SAE 5140 for strength and durability
• Housing material: carbon steel for structural integrity
• Includes dust boot made of chloroprene rubber (CR) to protect against contaminants
• Comes with mounting hardware including bolts, nuts, and washers for secure installation
• Stud thread diameter: 14.0 mm (0.551 inches) with a thread length of 21.0 mm (0.827 inches)
• Mounting type: bolt-on with three mounting holes spaced 38.0 mm apart
• Dimensions: width 108.5 mm, height 101.63 mm
• Wrench size required: 22.0 mm (0.866 inches)

Technical Details and Construction

The Delphi TC5088 suspension ball joint features a robust ball made from SAE 5140 alloy steel, known for its high tensile strength and wear resistance. The housing is constructed from carbon steel, providing a solid foundation for suspension movement. A chloroprene rubber dust boot is included to shield the joint from dirt and moisture, extending service life. This assembly is designed as a bolt-on replacement, including all necessary mounting hardware such as bolts, nuts, and washers, ensuring a straightforward installation process. The stud thread diameter and length are optimized for secure fitment in compatible vehicles.

Compatible Vehicles and Applications

This suspension ball joint is compatible with Ford B2000 and Mazda Courier models, making it suitable for owners seeking a direct replacement part. The Delphi TC5088 is intended for use in suspension systems where maintaining precise steering geometry and smooth articulation is critical.

• Restores proper steering control and suspension alignment
• Eliminates excessive play or looseness in the suspension
• Reduces noise and vibration caused by worn ball joints
• Prevents premature tire wear due to suspension issues
• Protects suspension components from dirt and moisture ingress

Installation Notes and Tips

Installation of the Delphi TC5088 ball joint requires basic mechanical skills and appropriate tools, including a 22 mm wrench. The bolt-on design with included mounting hardware simplifies the replacement process. It is recommended to inspect related suspension components during installation and replace any worn parts to ensure optimal performance. Proper torque specifications should be followed to secure the mounting bolts and nuts.

Quality Assurance and Warranty

Delphi suspension components are manufactured to meet industry standards for durability and performance. The TC5088 ball joint undergoes rigorous quality control to ensure reliability in Ford B2000 and Mazda Courier applications. While specific warranty details may vary, Delphi typically offers coverage against manufacturing defects to provide confidence in the product's longevity.
