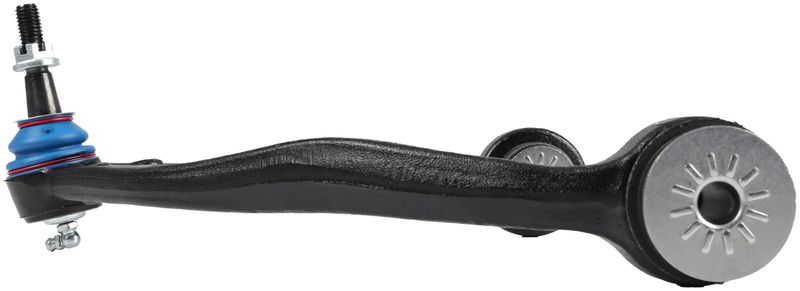

Delphi TC5189PX Suspension Control Arm and Ball Joint Assembly - Front Left Upper

OE Quality 60-Day Returns

Professional+

Delphi TC5189PX Suspension Control Arm and Ball Joint Assembly - Front Left Upper

Brand	Delphi TC5189PX
Position	Front Left Upper
Thread Direction	Clockwise (right)
Bushing Color	Black
Length	13.346
Length	339.00
Finish	Painted
Pre-Greased	Yes
Castle Nut Included	Yes
Grease Fitting Included	Yes
Bushings Included	Yes
Dust Boot Included	Yes
Ball Joint Mounting Type	Machined
Ball Joint Stud Type	Threaded
Ball Joint Included	Yes
Control Arm Construction	Casting/forged
Control Arm Material	Steel
Cotter Pin Included	Yes
Mounting Hardware Included	Yes
Grade Type	Improved design
Mounting Hole Quantity	2
Boot Material	Chloroprene rubber (cr)
Adjustable	No
Locking Nut Included	No
Greaseable	Yes
Length Center Bore To Center Bore	11.220
Length Center Bore To Center Bore	285.00
Control Arm Maximum Width	11843
Control Arm Maximum Width	300.80
Control Arm Color	Black
Ball Joint Stud Length	1.299
Ball Joint Stud Length	33.00
Product line	Professional+
Fits	Cadillac, Chevrolet, and GMC · 94 vehicles

Serviceable design. Greaseable construction supports maintenance and long-term suspension performance.

OE-style assembly. Includes the ball joint, bushings, and related mounting components in one unit.

Steel construction. Casting/forged control arm build with a painted finish for chassis service.

Cross-references Dorman - OE Solutions CB90267RD, Mevotech Original Grade GK80669 and Mevotech Supreme CMK80669 for the same application. See all 7.

$102.05Free shipping

In stock · usually ships same day before 1pm CST

Step 1 — Confirm fitment

Free return shipping if it doesn't fit when you check fitment here first.

Confirm position

Select your vehicle to confirm fitment

Verify this part fits before purchasing — free returns if it doesn't

Step 2 — Quantity

Free shipping to the continental U.S.

Free returns within 60 days if it doesn't fit when fitment is verified.

Not what you need? See all Suspension Control Arm and Ball Joint Assembly options

Professional+ Front Left Upper Control Arm

Delphi Professional+ TC5189PX is a suspension control arm and ball joint assembly built for demanding service. It is engineered to reduce axial deflection under load, helping maintain alignment and steering response on compatible GM full-size SUVs and trucks.

Key Features

Steel control arm with casting/forged construction for strength in chassis service.
Pre-greased, greaseable design with a serviceable grease fitting for maintenance access.
Machined ball joint with threaded stud for precise assembly fit.
Painted finish and chloroprene rubber dust boot for added protection against road exposure.
Includes bushings, ball joint, castle nut, cotter pin, and mounting hardware.

Detailed Description

The Delphi Professional+ line is aimed at fleet and working vehicles that see frequent use and harsh road conditions. This TC5189PX control arm assembly uses premium materials and serviceable components to support long-term suspension performance, reduce downtime, and extend part life through regreasing. It is a fitment-based replacement for applications such as the Chevrolet Silverado 1500, Chevrolet Tahoe, GMC Sierra 1500, and Cadillac Escalade in the front left upper position. This part cross-references MOOG Chassis Products CK80669 and Mevotech Original Grade GK80669 for the same application.

Common Issues Addressed

Excessive suspension play from worn control arm bushings or ball joint wear.
Alignment drift caused by deflection under load.
Clunking or looseness from deteriorated chassis joints.
Reduced steering stability on high-mileage suspension systems.
Premature wear from exposure to road debris, moisture, and weather.

Installation Notes and Tips

Compatible With 2007-2016 Cadillac Escalade, front left upper; 2007-2016 Cadillac Escalade ESV, front left upper; 2007-2013 Cadillac Escalade EXT, front left upper; 2007-2016 Chevrolet Silverado 1500, front left upper; 2015-2016 Chevrolet Suburban, front left upper; 2007-2014 Chevrolet Suburban 1500, front left upper; 2007-2016 Chevrolet Tahoe, front left upper; 2007-2016 GMC Sierra 1500, front left upper; 2007-2016 GMC Yukon, front left upper; 2015-2016 GMC Yukon XL, front left upper; 2007-2014 GMC Yukon XL 1500, front left upper; 2007-2013 Chevrolet Avalanche, front left upper. Verify alignment after installation and inspect adjacent suspension components for wear before service.

Quality Assurance

Delphi Professional+ chassis parts are built for fleet and working-vehicle duty, with serviceable construction and materials selected for harsh operating conditions. The design supports long service life and maintenance-friendly performance in suspension applications.

This part fits 94 vehicles

Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.

Year	Make	Model	Position	Notes
2016	Cadillac	Escalade	Front Left Upper	Professional+
2016	Cadillac	Escalade ESV	Front Left Upper	Professional+
2016	Chevrolet	Silverado 1500	Front Left Upper	Professional+
2016	Chevrolet	Suburban	Front Left Upper	Professional+
2016	Chevrolet	Tahoe	Front Left Upper	Professional+
2016	GMC	Sierra 1500	Front Left Upper	Professional+
2016	GMC	Yukon	Front Left Upper	Professional+
2016	GMC	Yukon XL	Front Left Upper	Professional+
2015	Cadillac	Escalade	Front Left Upper	Professional+
2015	Cadillac	Escalade ESV	Front Left Upper	Professional+
2015	Chevrolet	Silverado 1500	Front Left Upper	Professional+
2015	Chevrolet	Suburban	Front Left Upper	Professional+
2015	Chevrolet	Tahoe	Front Left Upper	Professional+
2015	GMC	Sierra 1500	Front Left Upper	Professional+
2015	GMC	Yukon	Front Left Upper	Professional+
2015	GMC	Yukon XL	Front Left Upper	Professional+
2014	Cadillac	Escalade	Front Left Upper	Professional+
2014	Cadillac	Escalade ESV	Front Left Upper	Professional+
2014	Chevrolet	Silverado 1500	Front Left Upper	Professional+
2014	Chevrolet	Suburban 1500	Front Left Upper	Professional+
2014	Chevrolet	Tahoe	Front Left Upper	Professional+
2014	GMC	Sierra 1500	Front Left Upper	Professional+
2014	GMC	Yukon	Front Left Upper	Professional+
2014	GMC	Yukon XL 1500	Front Left Upper	Professional+
2013	Cadillac	Escalade	Front Left Upper	Professional+
2013	Cadillac	Escalade ESV	Front Left Upper	Professional+
2013	Cadillac	Escalade EXT	Front Left Upper	Professional+
2013	Chevrolet	Avalanche	Front Left Upper	Professional+
2013	Chevrolet	Silverado 1500	Front Left Upper	Professional+
2013	Chevrolet	Suburban 1500	Front Left Upper	Professional+
2013	Chevrolet	Tahoe	Front Left Upper	Professional+
2013	GMC	Sierra 1500	Front Left Upper	Professional+
2013	GMC	Yukon	Front Left Upper	Professional+
2013	GMC	Yukon XL 1500	Front Left Upper	Professional+
2012	Cadillac	Escalade	Front Left Upper	Professional+
2012	Cadillac	Escalade ESV	Front Left Upper	Professional+
2012	Cadillac	Escalade EXT	Front Left Upper	Professional+
2012	Chevrolet	Avalanche	Front Left Upper	Professional+
2012	Chevrolet	Silverado 1500	Front Left Upper	Professional+
2012	Chevrolet	Suburban 1500	Front Left Upper	Professional+
2012	Chevrolet	Tahoe	Front Left Upper	Professional+
2012	GMC	Sierra 1500	Front Left Upper	Professional+
2012	GMC	Yukon	Front Left Upper	Professional+
2012	GMC	Yukon XL 1500	Front Left Upper	Professional+
2011	Cadillac	Escalade	Front Left Upper	Professional+
2011	Cadillac	Escalade ESV	Front Left Upper	Professional+
2011	Cadillac	Escalade EXT	Front Left Upper	Professional+
2011	Chevrolet	Avalanche	Front Left Upper	Professional+
2011	Chevrolet	Silverado 1500	Front Left Upper	Professional+
2011	Chevrolet	Suburban 1500	Front Left Upper	Professional+
2011	Chevrolet	Tahoe	Front Left Upper	Professional+
2011	GMC	Sierra 1500	Front Left Upper	Professional+
2011	GMC	Yukon	Front Left Upper	Professional+
2011	GMC	Yukon XL 1500	Front Left Upper	Professional+
2010	Cadillac	Escalade	Front Left Upper	Professional+
2010	Cadillac	Escalade ESV	Front Left Upper	Professional+
2010	Cadillac	Escalade EXT	Front Left Upper	Professional+
2010	Chevrolet	Avalanche	Front Left Upper	Professional+
2010	Chevrolet	Silverado 1500	Front Left Upper	Professional+
2010	Chevrolet	Suburban 1500	Front Left Upper	Professional+
2010	Chevrolet	Tahoe	Front Left Upper	Professional+
2010	GMC	Sierra 1500	Front Left Upper	Professional+
2010	GMC	Yukon	Front Left Upper	Professional+
2010	GMC	Yukon XL 1500	Front Left Upper	Professional+
2009	Cadillac	Escalade	Front Left Upper	Professional+
2009	Cadillac	Escalade ESV	Front Left Upper	Professional+
2009	Cadillac	Escalade EXT	Front Left Upper	Professional+
2009	Chevrolet	Avalanche	Front Left Upper	Professional+
2009	Chevrolet	Silverado 1500	Front Left Upper	Professional+
2009	Chevrolet	Suburban 1500	Front Left Upper	Professional+
2009	Chevrolet	Tahoe	Front Left Upper	Professional+
2009	GMC	Sierra 1500	Front Left Upper	Professional+
2009	GMC	Yukon	Front Left Upper	Professional+
2009	GMC	Yukon XL 1500	Front Left Upper	Professional+
2008	Cadillac	Escalade	Front Left Upper	Professional+
2008	Cadillac	Escalade ESV	Front Left Upper	Professional+
2008	Cadillac	Escalade EXT	Front Left Upper	Professional+
2008	Chevrolet	Avalanche	Front Left Upper	Professional+
2008	Chevrolet	Silverado 1500	Front Left Upper	Professional+
2008	Chevrolet	Suburban 1500	Front Left Upper	Professional+
2008	Chevrolet	Tahoe	Front Left Upper	Professional+
2008	GMC	Sierra 1500	Front Left Upper	Professional+
2008	GMC	Yukon	Front Left Upper	Professional+
2008	GMC	Yukon XL 1500	Front Left Upper	Professional+
2007	Cadillac	Escalade	Front Left Upper	Professional+
2007	Cadillac	Escalade ESV	Front Left Upper	Professional+
2007	Cadillac	Escalade EXT	Front Left Upper	Professional+
2007	Chevrolet	Avalanche	Front Left Upper	Professional+
2007	Chevrolet	Silverado 1500	Front Left Upper	Professional+
2007	Chevrolet	Suburban 1500	Front Left Upper	Professional+
2007	Chevrolet	Tahoe	Front Left Upper	Professional+
2007	GMC	Sierra 1500	Front Left Upper	Professional+
2007	GMC	Yukon	Front Left Upper	Professional+
2007	GMC	Yukon XL 1500	Front Left Upper	Professional+
No rows match your filter.

Directly replaces or cross-references 7 part numbers

Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.

Dorman - OE Solutions — CB90267RDMevotech Original Grade — GK80669Mevotech Supreme — CMK80669Mevotech TTX — CTXK80669MOOG Chassis Products — CK806691509619725812725
