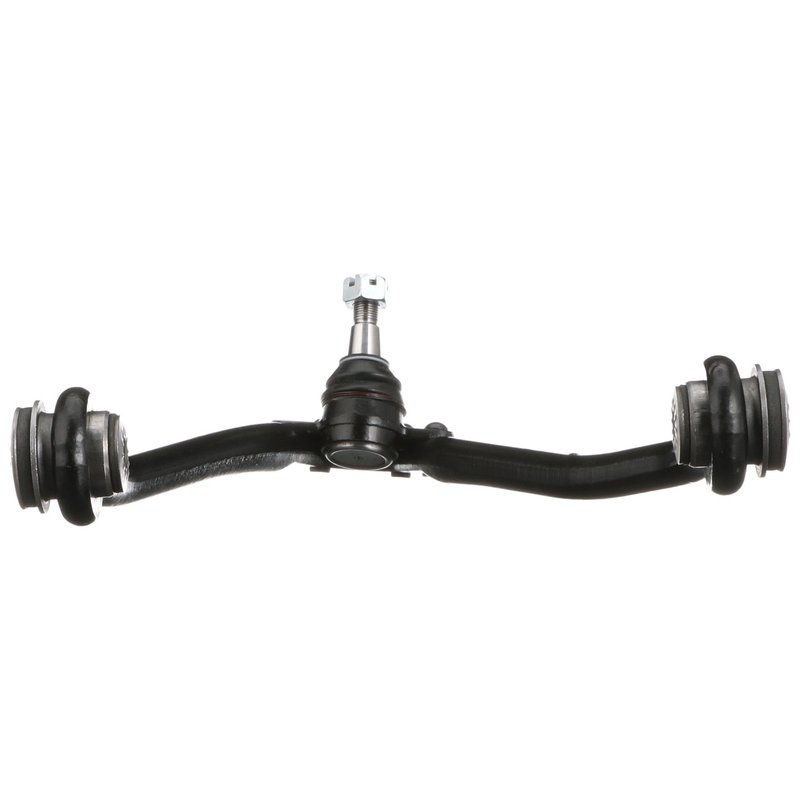

Delphi TC5195 Suspension Control Arm and Ball Joint Assembly - Front Left Upper

Delphi Suspension Control Arm and Ball Joint Assembly Overview

The Delphi TC5195 suspension control arm and ball joint assembly is designed for front left upper suspension applications on select Chevrolet and GMC trucks and vans. This pre-greased, greaseable assembly offers a durable steel construction with a threaded ball joint stud, engineered to meet standard replacement requirements for light suspension grade use.

• Pre-greased and grease fitting included for easy maintenance
• Steel control arm with casting and forged construction for strength
• Threaded ball joint stud with 0.63 inch (16.0 mm) thread diameter
• Rubber bushing material for vibration dampening
• Designed for front left upper suspension position
• Compatible with Chevrolet and GMC C1500 Suburban, C2500, C2500 Suburban, C3500, Express 2500, Express 3500, Savana 2500, and Savana 3500 models

Durable Construction and Design Features

The TC5195 control arm assembly features a robust steel construction combining casting and forging processes to ensure structural integrity and longevity. The black finish provides corrosion resistance suitable for typical road conditions. The rubber bushings help absorb road vibrations, contributing to a smoother ride. The ball joint stud is threaded with a 0.63 inch (16.0 mm) diameter, allowing secure attachment and compatibility with factory mounting points. This assembly is greaseable and includes a grease fitting, facilitating routine maintenance to extend service life.

Compatible Vehicles and Applications

This suspension control arm and ball joint assembly is specifically compatible with front left upper suspension on Chevrolet and GMC trucks and vans, including the C1500 Suburban, C2500, C2500 Suburban, C3500, Express 2500, Express 3500, Savana 2500, and Savana 3500 models. The part number TC5195 ensures precise fitment for these vehicles, maintaining proper suspension geometry and handling characteristics.

Common Suspension Issues Addressed

• Worn or damaged control arm bushings causing steering instability
• Loose or failing ball joints leading to uneven tire wear
• Corroded or weakened control arm structure affecting suspension alignment
• Excessive suspension noise or vibration from faulty components
• Difficulty maintaining proper front suspension geometry

Installation Notes and Tips

Installation of the Delphi TC5195 control arm assembly should be performed by a qualified technician using appropriate tools. Ensure the vehicle is securely lifted and supported before removal of the old control arm. The grease fitting included allows for lubrication after installation; regular greasing is recommended to maintain ball joint performance. Verify torque specifications for mounting bolts and ball joint stud to factory standards. Alignment check and adjustment are advised following installation to ensure optimal handling.

Quality Assurance and Warranty

Delphi suspension components are manufactured to meet or exceed OEM standards for fit, form, and function. The TC5195 assembly is a standard replacement grade part, designed to provide reliable service life under normal operating conditions. While specific warranty details may vary, Delphi typically offers limited warranties covering defects in materials and workmanship. Consult product documentation or supplier for exact warranty terms.
