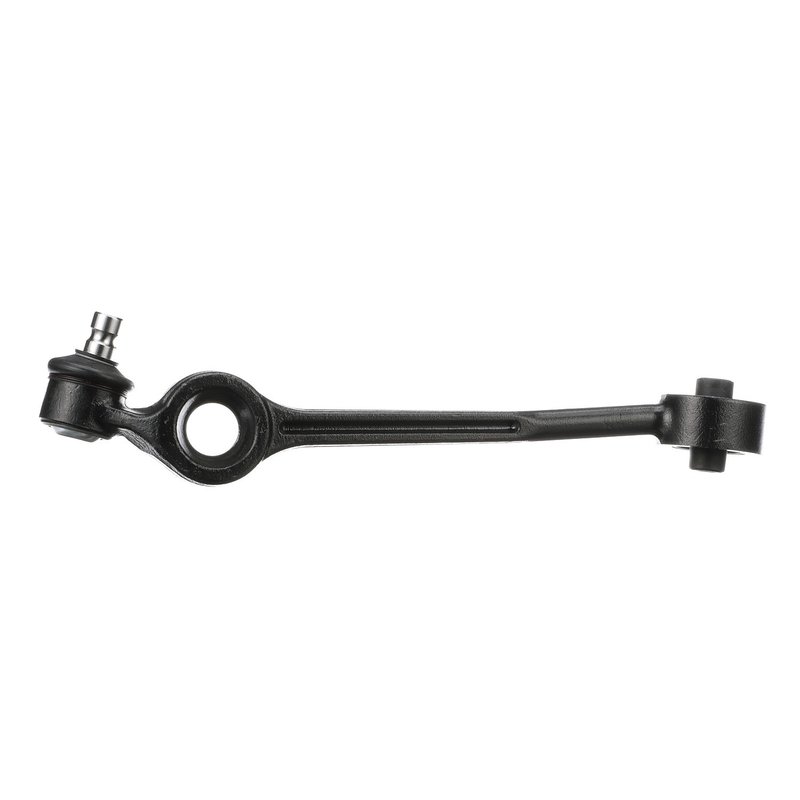

Delphi TC5243 Suspension Control Arm and Ball Joint Assembly - Front Left Lower

Delphi Suspension Control Arm and Ball Joint Assembly Overview

The Delphi TC5243 suspension control arm and ball joint assembly is engineered for front left lower suspension applications on select Audi models. Designed with durable steel construction and natural rubber bushings, this assembly provides reliable performance for Audi 100, 100 Quattro, 200, 200 Quattro, and 5000 Quattro vehicles.

• Durable steel control arm with casting and forged construction
• Includes natural rubber bushings for effective vibration dampening
• Machined ball joint mounting with pinch-type stud for secure fit
• Standard replacement grade suitable for light suspension use
• Mounting hardware included for straightforward installation

Technical Details and Features

The Delphi TC5243 control arm assembly features a black steel arm measuring approximately 15.067 inches (382.7 mm) in length and 4.331 inches (110 mm) in maximum width. It includes one mounting hole with a diameter of 12.2 mm, and the ball joint stud has an 18 mm thread diameter and a 70 mm stud length. The assembly is not greaseable and does not include a grease fitting, but it comes pre-equipped with natural rubber bushings to maintain suspension integrity and reduce noise. This part is designed specifically for light suspension grade applications and is not adjustable.

Compatible Audi Models and Applications

This suspension control arm and ball joint assembly is compatible with the following Audi vehicles:

• Audi 100 (front left lower suspension)
• Audi 100 Quattro (front left lower suspension)
• Audi 200 (front left lower suspension)
• Audi 200 Quattro (front left lower suspension)
• Audi 5000 Quattro (front left lower suspension)

Common Suspension Issues Addressed

• Worn or damaged control arm bushings causing steering instability
• Loose or failing ball joints leading to uneven tire wear
• Excessive suspension noise or vibration from deteriorated components
• Misalignment issues affecting vehicle handling and safety
• Corrosion or structural fatigue in original control arm assembly

Installation Notes and Tips

Installation of the Delphi TC5243 control arm assembly requires basic suspension knowledge and appropriate tools. Since the assembly includes mounting hardware and bushings, it simplifies the replacement process. Ensure the vehicle is securely lifted and supported before removal. Align the control arm properly to avoid suspension misalignment. Torque all fasteners to manufacturer specifications. Because this part is not greaseable, no additional lubrication is necessary during installation.

Quality Assurance and Warranty

Delphi suspension components meet standard replacement grade requirements, ensuring reliable fit and function for compatible Audi models. The TC5243 assembly is manufactured with quality steel and natural rubber materials to maintain durability under normal driving conditions. Warranty coverage details should be confirmed with the parts provider or vehicle manufacturer.
