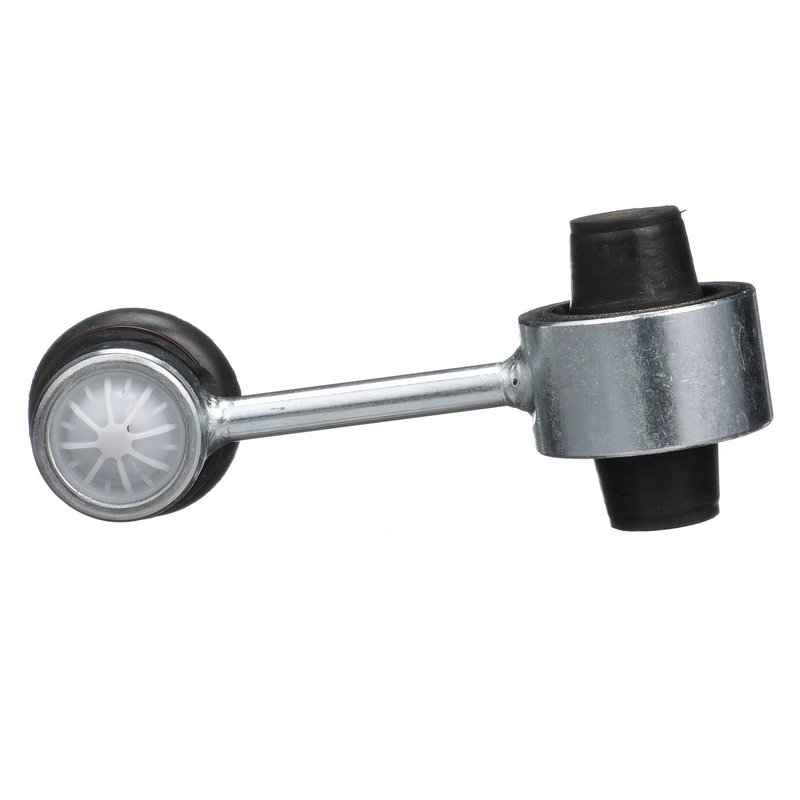

Delphi TC5266 Suspension Stabilizer Bar Link - Rear

Delphi Suspension Stabilizer Bar Link Overview

The Delphi TC5266 Suspension Stabilizer Bar Link is engineered for reliable rear suspension performance on select Scion, Subaru, and Toyota models. Designed with durable steel construction and natural rubber bushings, this stabilizer bar link helps maintain vehicle stability and handling precision.

• Constructed from high-strength steel for durability
• Includes black natural rubber bushings for noise and vibration reduction
• Features a bushing end and a ball joint end for secure fitment
• Comes with washers and locking nuts for proper installation
• Dust boot included to protect the ball joint from contaminants
• Compatible with rear suspension systems on Scion 86, Subaru BRZ, FR-S, GR86, Impreza, Legacy, WRX, and WRX STI
• Standard replacement grade for reliable everyday use

Detailed Product Description

The Delphi TC5266 suspension stabilizer bar link is designed to connect the stabilizer bar to the suspension, reducing body roll and improving handling during cornering. Measuring approximately 3.7 inches (94 mm) in length and 2.15 inches (54.7 mm) in width, this component features a steel housing and a plastic bearing to ensure smooth articulation. The black natural rubber bushings absorb vibrations and minimize noise, while the included dust boot protects the ball joint end from dirt and moisture. This part is not greaseable but includes locking nuts and washers to secure the assembly firmly in place. The bolt thread size is 10 mm with a bolt length of 0.846 inches, designed for precise fitment in the rear suspension of compatible vehicles.

Compatible Vehicles and Applications

This stabilizer bar link is compatible with the rear suspension of the following vehicles:

• Scion 86
• Subaru BRZ, Impreza, Legacy, WRX, WRX STI
• Toyota FR-S, GR86

It is intended as a standard replacement part to restore suspension stability and handling characteristics on these models.

Common Issues Addressed by the TC5266 Stabilizer Bar Link

• Excessive body roll during cornering
• Clunking or rattling noises from the rear suspension
• Uneven tire wear due to suspension instability
• Loose or worn suspension components affecting handling
• Reduced steering response and vehicle control

Installation Notes and Tips

• Ensure the vehicle is securely lifted and supported before installation
• Remove the old stabilizer bar link carefully to avoid damaging surrounding components
• Use the included locking nuts and washers to secure the new link
• Check bolt thread size (10 mm) and torque specifications for your vehicle
• Inspect bushings and dust boot for proper seating during installation

Quality Assurance and Warranty

The Delphi TC5266 suspension stabilizer bar link is manufactured to meet standard replacement grade specifications, ensuring consistent performance and durability. The steel construction and quality bushings provide reliable service life under normal driving conditions. Delphi offers a limited warranty against defects in materials and workmanship, providing confidence in the product's quality.
