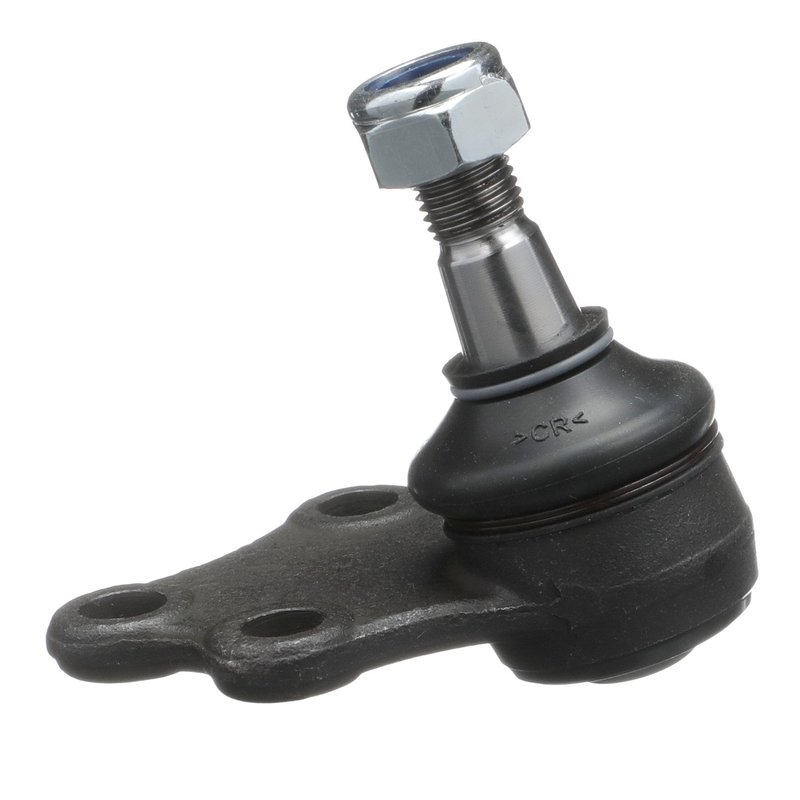

Delphi TC5282 Suspension Ball Joint - Front Left Lower

Delphi Suspension Ball Joint TC5282 Overview

The Delphi Suspension Ball Joint TC5282 is engineered for reliable suspension performance in various vehicle applications. Constructed with durable alloy steel and carbon steel materials, this ball joint offers precise fitment and long-lasting durability for compatible makes and models.

• Ball material: Alloy steel SAE 5140 for strength and wear resistance
• Housing material: Carbon steel for structural integrity
• Maximum outside diameter: 1.791 inches (45.5 mm)
• Length: 95 mm
• Stud thread diameter: 0.551 inches (14.0 mm)
• Includes dust boot made of chloroprene rubber for protection against contaminants
• Mounting hardware and nuts included for installation
• Non-greasable design with no grease fitting
• Black color finish for corrosion resistance
• Three mounting holes with 24.5 mm spacing

Technical Details and Construction

The Delphi TC5282 suspension ball joint features a robust ball stud made from SAE 5140 alloy steel, known for its high tensile strength and fatigue resistance. The housing is crafted from carbon steel, providing a solid foundation to withstand suspension loads. The dust boot, made from chloroprene rubber, helps prevent dirt and moisture intrusion, extending the service life of the joint. This ball joint assembly measures 95 mm in length and 71.5 mm in width, with a height of approximately 84.4 mm (3.323 inches), ensuring compatibility with specific suspension systems. The stud thread length is 22.5 mm (0.886 inches), designed to fit securely with included nuts and mounting hardware. Note that this part does not include a castle nut, cotter pin, or grease fitting, reflecting a maintenance-free, sealed design.

Compatible Vehicles and Applications

The Delphi TC5282 suspension ball joint is suitable for use in various automotive suspension systems requiring a durable, non-adjustable ball joint. While specific vehicle fitment depends on make and model, this part number is commonly referenced for replacement in certain domestic and import vehicles requiring a 14 mm stud thread diameter and three mounting holes. Always verify compatibility with your vehicle’s suspension specifications before purchase.

Common Suspension Issues Addressed

• Excessive play or looseness in the front suspension
• Uneven tire wear caused by worn ball joints
• Clunking or knocking noises during steering or over bumps
• Steering instability or wandering
• Vibration or rough ride quality due to joint wear

Installation Notes and Tips

• Ensure vehicle is securely lifted and supported before removal
• Compare new ball joint dimensions with the original part for fitment confirmation
• Use appropriate tools sized for 22 mm wrench on stud and mounting hardware
• Do not attempt to grease the ball joint as it is a sealed, non-greasable design
• Torque mounting nuts to manufacturer specifications to ensure safety and performance

Quality Assurance and Warranty

Delphi suspension components, including the TC5282 ball joint, are manufactured to meet or exceed OEM standards for durability and performance. The materials and construction methods used provide reliable service life under normal operating conditions. Warranty coverage details vary by distributor and vehicle application; consult your parts provider for specific warranty information related to this part number.
