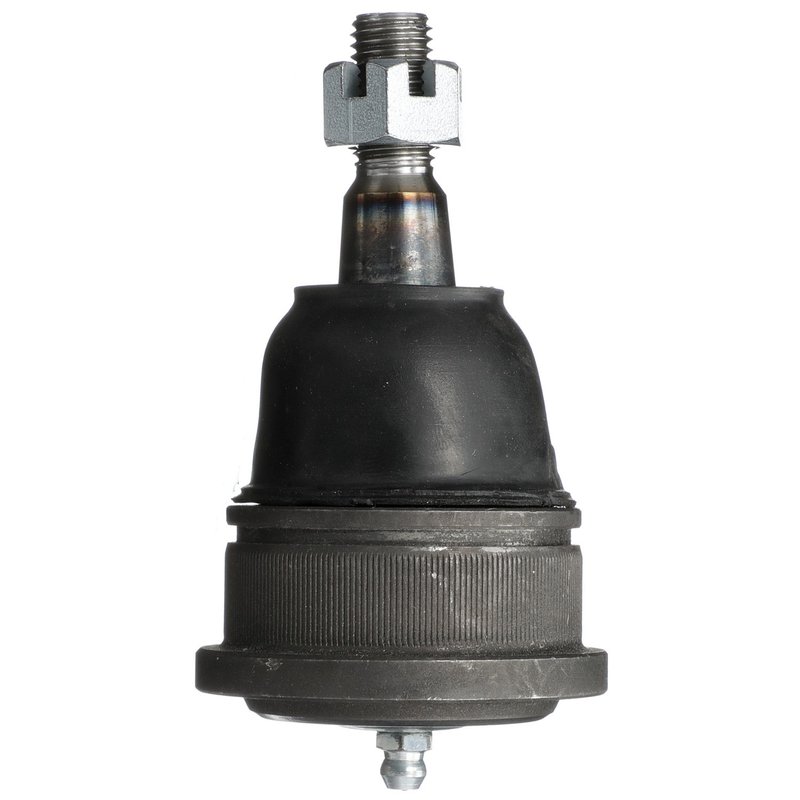

Delphi TC5288 Suspension Ball Joint - Front Lower

Delphi Suspension Ball Joint TC5288 Overview

The Delphi Suspension Ball Joint TC5288 is engineered for front lower suspension applications on select Chrysler, Dodge, Ram, and Volkswagen vehicles. Designed with durable materials and precise specifications, this ball joint ensures reliable steering and suspension performance for models like the Grand Caravan, Town & Country, Routan, and C/V.

• Constructed with alloy steel SAE 5140 ball and carbon steel housing for strength and durability
• Includes a chloroprene rubber dust boot to protect against contaminants
• Pressed mounting type with tapered stud ends for secure fitment
• Comes with mounting hardware and nuts for straightforward installation
• Standard replacement grade designed for front lower suspension positions

Technical Specifications and Features

The TC5288 ball joint features a gray finish and precise dimensions to match OEM requirements. The stud thread diameter measures 12.0 mm (0.47 inches) with a thread pitch of 1.5, and the stud thread length is 24.0 mm (0.945 inches). The tapered stud ends have diameters of 15.5 mm (0.61 inches) and 19.0 mm (0.748 inches), ensuring a tight and secure connection. The assembly includes a dust boot made from durable chloroprene rubber to prevent dirt and moisture ingress, extending the service life of the joint. This ball joint does not include bushings or washers but comes with necessary mounting hardware and nuts for installation.

Compatible Vehicles and Applications

This Delphi ball joint TC5288 is compatible with front lower suspension systems on the following vehicles:

• Chrysler Grand Caravan
• Dodge C/V
• Ram Routan
• Volkswagen Town & Country

It is designed to meet the suspension demands of these models, providing stable steering and suspension articulation.

Common Suspension Issues Addressed

• Eliminates excessive play or looseness in the front lower suspension
• Reduces uneven tire wear caused by worn ball joints
• Improves steering response and vehicle handling
• Prevents clunking noises from suspension movement
• Protects suspension components from dirt and moisture with included dust boot

Installation Notes and Tips

• Ensure vehicle is securely lifted and supported before removal
• Use appropriate tools to press out the old ball joint and press in the new one
• Verify stud thread dimensions and taper match OEM specifications
• Install mounting hardware and nuts included with the part
• Check alignment after installation to maintain proper suspension geometry

Quality Assurance and Warranty

The Delphi TC5288 suspension ball joint is manufactured to meet standard replacement grade specifications, ensuring reliable performance and durability. The part includes a dust boot made from chloroprene rubber to enhance longevity. Delphi provides quality assurance backed by industry standards, though specific warranty terms should be confirmed with the parts provider or vehicle manufacturer.
