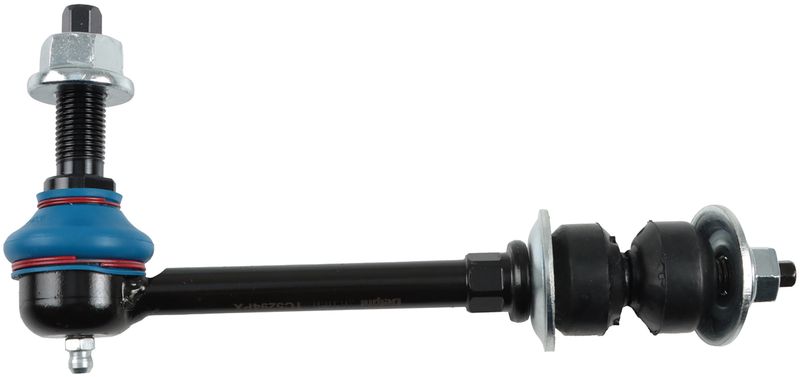

Delphi TC5294PX Suspension Stabilizer Bar Link Kit - Front
| Brand | Delphi TC5294PX |
|---|---|
| Position | Front |
| Bushing Outside Diameter | 1.22 |
| Bushing Outside Diameter | 31.00 |
| Bushing Color | Black |
| Length | 196.00 |
| Length | 7.717 |
| End 1 Type | Ball joint |
| End 2 Type | Bushing |
| Bushings Included | Yes |
| Dust Boot Included | Yes |
| Sleeve Length | 1.528 |
| Sleeve Length | 38.80 |
| Washers Included | Yes |
| Grade Type | Improved design |
| Bolts Included | No |
| Boot Material | Rubber |
| Greaseable | Yes |
| Weight | 0.29 |
| Bearing Material | Plastic |
| Bushing Material | Rubber |
| Locking Nuts Included | Yes |
| Hardware Included | Yes |
| Bushing Inside Diameter | 0.394 |
| Bushing Inside Diameter | 10.00 |
| Product line | Professional+ |
| Fits | Dodge and Ram · 6 vehicles |
Serviceable design. Greaseable components help extend part life in demanding chassis use.
Improved construction. Ball joint and bushing ends support controlled suspension movement.
Professional+ line. Built for fleet and working vehicles exposed to harsh conditions.
Cross-references Dorman - Premium SL82155PR, Mevotech Original Grade GS25890 and Mevotech Supreme MS25890 for the same application. See all 9.
Overview
Delphi Professional+ suspension stabilizer bar link kit, part number TC5294PX, is built for front suspension service on select Ram and Dodge Ram heavy-duty trucks. It combines serviceable construction with greaseable components to support long-term chassis performance in demanding use.
Key Features
- Professional+ chassis part engineered for fleet and working vehicle demands
- Minimizes axial deflection under load to help maintain alignment and handling
- Greaseable design with serviceable components for extended part life
- Premium materials built for harsh road and weather exposure
- Improved design with ball joint and bushing end construction
- Includes dust boot, bushings, washers, and locking nuts
Detailed Description
Delphi TC5294PX is a front suspension stabilizer bar link kit from the Professional+ line, developed for durability in high-use chassis applications. The design uses a ball joint on one end and a bushing on the other, with rubber bushings, a rubber boot, and a plastic bearing material to support controlled movement and reduce wear. Its greaseable, serviceable construction is intended to extend service life and help reduce downtime in demanding Ram 2500, Ram 3500, and Dodge Ram 2500 or Dodge Ram 3500 applications. This part cross-references MOOG Chassis Products K750581 and Dorman - Premium SL82155PR for the same application. Part number TC5294PX is a direct fit for the listed front positions.
What It Helps Address
- Excess movement in the stabilizer bar link assembly
- Handling looseness caused by worn chassis linkage components
- Alignment instability under load
- Premature wear from road and weather exposure
- Downtime from non-serviceable suspension parts
Installation Notes
Compatible with front-position applications only as listed in the fitment data. Verify the vehicle year, make, and model before installation. Hardware details should be confirmed against the product listing and vehicle requirements. Part number TC5294PX should be matched to the exact application shown for Ram and Dodge Ram trucks.
Quality Assurance
Delphi Professional+ chassis parts are built for working vehicles and fleet use, with serviceable components that can be regreased to support longer part life and consistent performance.
| Year | Make | Model | Body Type | Drive Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2012 | Ram | 2500 | Extended Crew Cab Pickup | 4WD | 6.7L | L6 | Front | Professional+ |
| 2012 | Ram | 3500 | Standard Cab Pickup | 4WD | 6.7L | L6 | Front | Professional+ |
| 2011 | Ram | 2500 | Extended Crew Cab Pickup | 4WD | 6.7L | L6 | Front | Professional+ |
| 2011 | Ram | 3500 | Standard Cab Pickup | 4WD | 6.7L | L6 | Front | Professional+ |
| 2010 | Dodge | Ram 2500 | Extended Crew Cab Pickup | 4WD | 6.7L | L6 | Front | Professional+ |
| 2010 | Dodge | Ram 3500 | Standard Cab Pickup | 4WD | — | — | Front | Professional+ |
