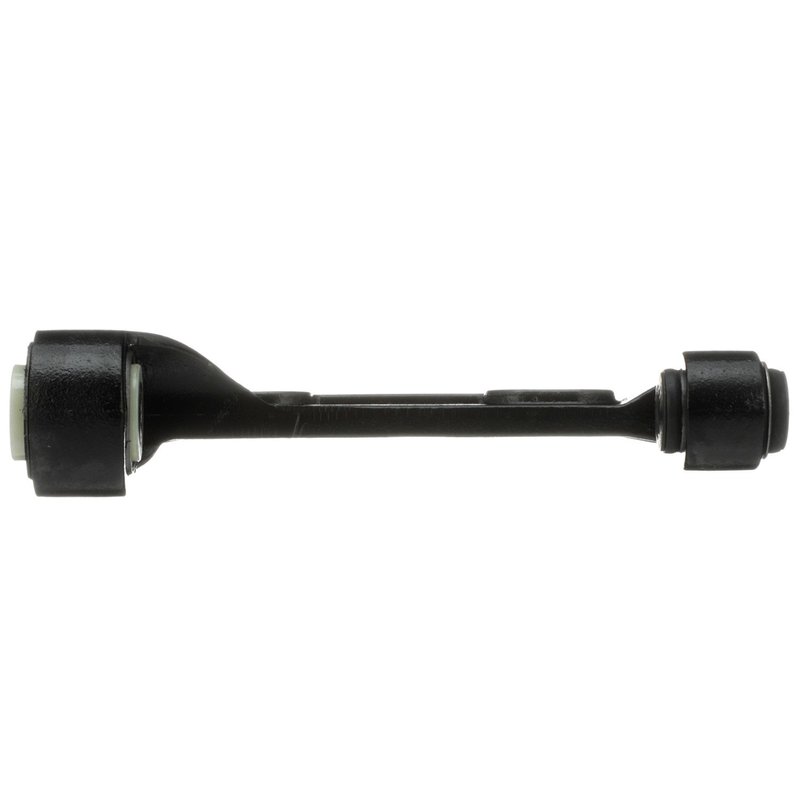

Delphi TC5334 Suspension Control Arm Support Bracket - Front Right Lower

OE-Style Front Right Lower Support

Delphi TC5334 is a suspension control arm support bracket for the front right lower position. It is built as a standard replacement part for vehicles that need OE-style fit and material consistency in the suspension mounting area.

Compatible with Chevrolet Trailblazer, GMC Envoy, Saab 9-7x, Buick Rainier, Chevrolet SSR, Trailblazer EXT, Envoy XL, Envoy XUV, and Oldsmobile Bravada applications, this bracket supports accurate suspension alignment and secure control arm mounting.

• Front right lower suspension control arm support bracket
• Standard replacement grade for OE-style service
• Built using Delphi dimensional and material analysis for fit consistency
• Tested for extreme temperature exposure and salt spray resistance
• Cross-references Beck/Arnley 102-7073 and MOOG Chassis Products RK641135 for the same application

Vehicle Fitment

• Fits 2002-2009 Chevrolet Trailblazer, front right lower
• Fits 2002-2006 Chevrolet Trailblazer EXT, front right lower
• Fits 2005-2006 Chevrolet SSR, front right lower
• Fits 2002-2009 GMC Envoy, front right lower
• Fits 2002-2006 GMC Envoy XL, front right lower
• Fits 2004-2005 GMC Envoy XUV, front right lower
• Fits 2005-2009 Saab 9-7x, front right lower
• Fits 2004-2007 Buick Rainier, front right lower
• Fits 2002-2004 Oldsmobile Bravada, front right lower

What It Helps Address

• Worn or damaged front right lower control arm support bracket
• Suspension mounting looseness at the lower control arm location
• Alignment issues caused by bracket wear or deformation
• Corrosion-related bracket deterioration in the suspension area
• Replacement needs after front suspension service on GM platform vehicles

Installation Notes

Verify the front right lower position before installation and compare the original bracket to the replacement part for mounting and geometry match. Because this is a suspension bracket, proper torque procedures and a final alignment check are recommended after installation.

Quality Assurance

Delphi applies OE-focused engineering to its aftermarket steering and suspension portfolio. TC5334 is evaluated for temperature extremes below -40 degrees C and above 120 degrees C, and it is exposed to 720 hours of salt spray testing to help confirm durability in harsh conditions.
