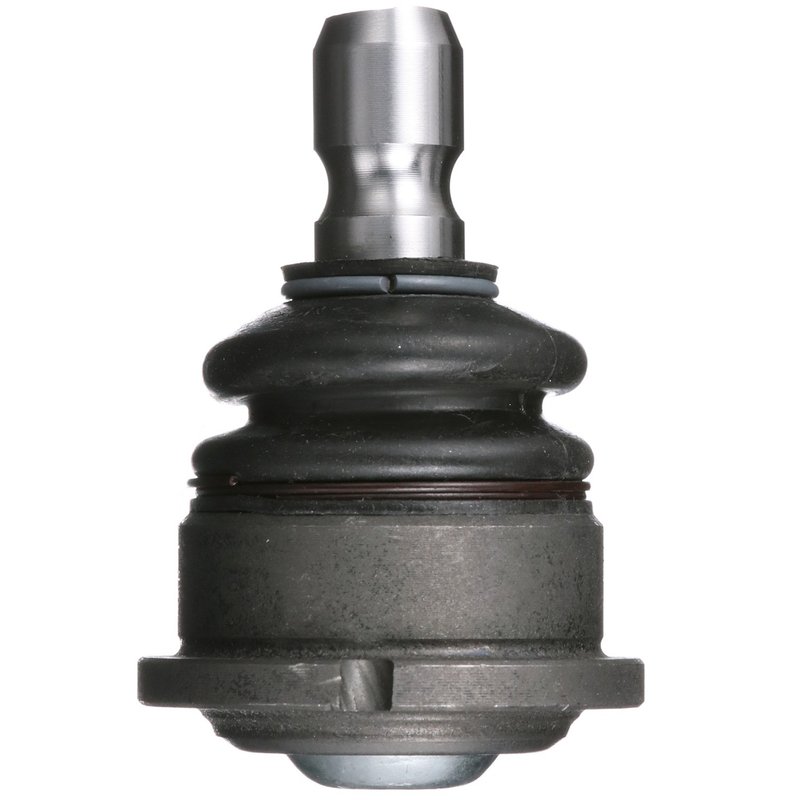

Delphi TC5400 Suspension Ball Joint - Front Upper
| Brand | Delphi TC5400 |
|---|---|
| Position | Front Upper |
| Adjustable | No |
| Ball Joint Assembly | No |
| Bushings Included | No |
| Castle Nut Included | Yes |
| Color | Gray |
| Cotter Pin Hole | Yes |
| Cotter Pin Included | Yes |
| Dust Boot Included | Yes |
| Dust Boot Material | Choloroprene Rubber (CR) |
| Height | 3.287 |
| Height | 83.5 |
| Item Grade | Standard Replacement |
| Length | 42 |
| Material | Steel |
| Mount Plate Included | Yes |
| Mounting Hardware Included | Yes |
| Mounting Hole Quantity | 0 |
| Mounting Type | Pressed |
| Nuts Included | Yes |
| Stud Tapered End 1 Diameter | 0.506 |
| Stud Tapered End 1 Diameter | 12.85 |
| Stud Tapered End 2 Diameter | 0.61 |
| Stud Tapered End 2 Diameter | 15.5 |
| Stud Thread Diameter | 0.472 |
| Stud Thread Length | 0.906 |
| Stud Thread Length | 23.0 |
| Stud Thread Pitch | 1.25 |
| Tapered Stud | Yes |
| Washers Included | Yes |
| Width | 42.0 |
| Fits | Cadillac · 5 vehicles |
Standard replacement. OE expertise helps match the original part for dependable compatibility.
Pressed-in design. Built for a secure fit with mounting hardware included.
Steel construction. Includes a dust boot and corrosion-resistant hardware for added durability.
Cross-references Dorman - OE Solutions 522-469, Dorman - OE Solutions 522-470 and Dorman - OE Solutions 523-286 for the same application. See all 13.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Front Upper Ball Joint for Cadillac CTS
Delphi TC5400 is a front upper suspension ball joint for 2003-2007 Cadillac CTS applications. Built with a steel body, pressed mounting type, and a tapered stud, it is made for OE-style suspension service where precise fit and consistent steering response matter.
Key Features
- Fits 2003-2007 Cadillac CTS, front upper
- Steel construction with gray finish
- Pressed mounting type for suspension service applications
- Dust boot included with chloroprene rubber (CR) material
- Castle nut, cotter pin, washers, nuts, and mounting plate included
- Standard replacement grade for OE-style repair
- Delphi part number TC5400
Detailed Description
Delphi TC5400 is engineered as a front upper suspension ball joint for the Cadillac CTS, covering 2003 through 2007 model years. It uses a pressed-in mounting design and a tapered stud with a 1.25 thread pitch, helping maintain proper suspension geometry at the upper control arm connection point. Delphi applies OE-focused dimensional and material analysis to support fitment consistency between original and replacement components. This part cross-references MOOG Chassis Products K500119 for the same application.
Common Repair Symptoms
- Front-end clunking or popping over bumps
- Excessive play in the upper suspension joint
- Uneven tire wear related to worn suspension geometry
- Loose or imprecise steering feel
- Visible dust boot wear or joint contamination
Installation Notes and Tips
Because this is a pressed ball joint, proper removal and installation tools are required. Inspect the surrounding control arm, fasteners, and alignment settings before reassembly. Verify the tapered stud orientation, torque all hardware to vehicle specifications, and perform a wheel alignment after installation on the Cadillac CTS.
Quality Assurance
Delphi tests steering and suspension components under extreme temperature and corrosion conditions, including sub-zero and high-heat exposure plus extended salt-spray testing. The TC5400 is built to OE-focused standards for material durability and dimensional accuracy in front upper suspension service.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2007 | Cadillac | CTS | Front Upper | — |
| 2006 | Cadillac | CTS | Front Upper | — |
| 2005 | Cadillac | CTS | Front Upper | — |
| 2004 | Cadillac | CTS | Front Upper | — |
| 2003 | Cadillac | CTS | Front Upper | — |
