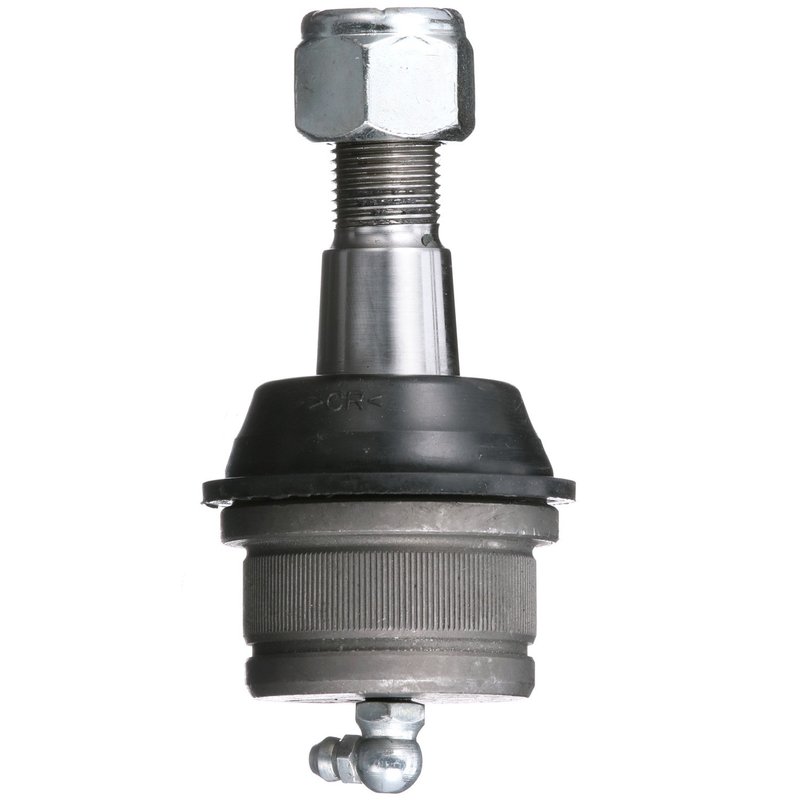

Delphi TC5459 Suspension Ball Joint - Front Lower

Delphi Suspension Ball Joint TC5459 Overview

The Delphi Suspension Ball Joint TC5459 is engineered for reliable suspension performance on select Ford and Mazda vehicles. Designed with durable steel construction and equipped with essential hardware, this ball joint supports smooth steering and stable handling for models like the Ford Bronco II and Mazda Navajo.

• Constructed from high-strength steel for durability
• Includes castle nut, cotter pin, washers, and mounting hardware
• Grease fitting included for easy maintenance and extended life
• Equipped with a chloroprene rubber dust boot to protect against contaminants
• Pressed mounting type with tapered stud design for secure fitment
• Compatible with Ford Bronco II, Explorer, F-100, Ranger and Mazda Navajo

Technical Specifications and Features

The TC5459 suspension ball joint features a 64 mm length and width, with a height of approximately 132.3 mm (5.209 inches). The stud thread diameter measures 17.5 mm (0.688 inches) with a tapered stud end diameter of 22.6 mm (0.89 inches), ensuring precise fitment and secure mounting. This ball joint assembly includes a grease fitting for lubrication, a dust boot made from chloroprene rubber to resist wear and environmental damage, and all necessary mounting hardware such as nuts, washers, cotter pins, and a castle nut. The pressed mounting type and tapered stud design provide a reliable connection to the suspension system, maintaining vehicle stability and steering control.

Compatible Vehicles and Applications

This Delphi ball joint TC5459 is compatible with a range of Ford and Mazda trucks and SUVs, including:

• Ford Bronco II
• Ford Explorer
• Ford F-100
• Ford Ranger
• Mazda Navajo

It is designed to replace worn or damaged suspension ball joints in these models, restoring proper suspension geometry and improving handling characteristics.

Common Suspension Issues Addressed

• Excessive play or looseness in steering components
• Uneven tire wear due to misaligned suspension
• Clunking or knocking noises from front suspension
• Reduced steering responsiveness or stability
• Contaminant ingress causing premature joint failure

Installation Notes and Tips

Installation of the Delphi TC5459 ball joint requires pressing out the old ball joint and pressing in the new one, as it features a pressed mounting type. Ensure the tapered stud seats fully in the control arm or knuckle. Use the included castle nut and cotter pin to secure the stud properly, preventing loosening during operation. Grease the fitting after installation to maintain lubrication and extend service life. It is recommended to have a professional alignment performed after replacement to ensure proper suspension geometry.

Quality Assurance and Warranty

Delphi suspension components are manufactured to meet or exceed OEM specifications, ensuring reliable performance and durability. The TC5459 ball joint is constructed from high-quality steel and features protective dust boots and grease fittings to enhance longevity. While specific warranty details may vary, Delphi typically offers coverage against defects in materials and workmanship. Consult product documentation or authorized sources for exact warranty terms.
