Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

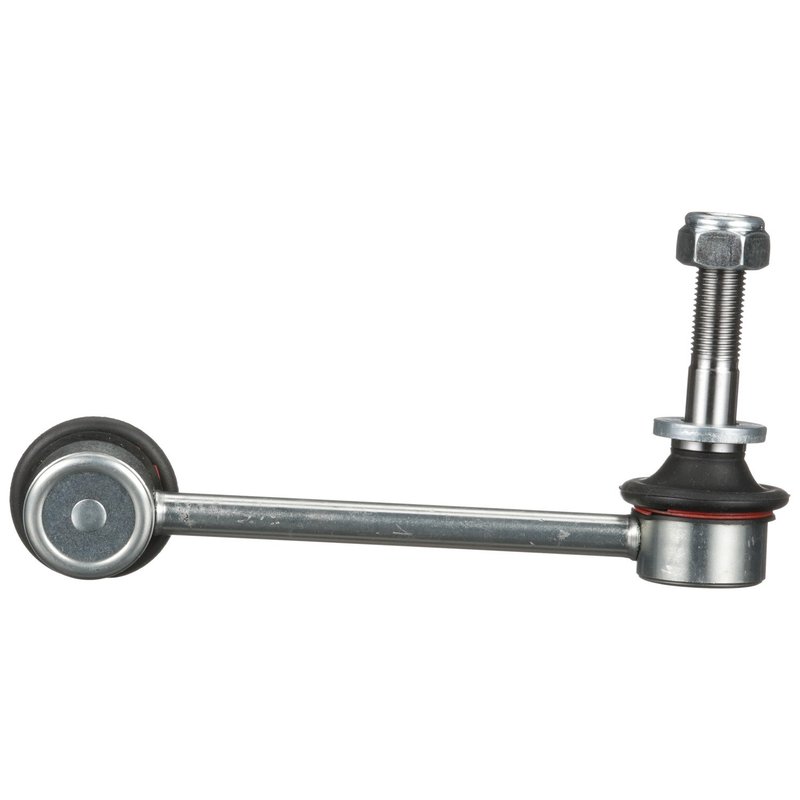

Delphi TC5466 Suspension Stabilizer Bar Link - Front Right
| Brand | Delphi TC5466 |
|---|---|
| Position | Front Right |
| Bearing Material | Plastic |
| Bolt Head Diameter | 0.79 |
| Bolt Head Diameter | 20.0 |
| Bolt Length | 1.77 |
| Bolt Length | 45.0 |
| Bolt Thread Diameter | 0.47 |
| Bolt Thread Diameter | 12.0 |
| Bolt Thread Size | 1.25 |
| Bolts Included | No |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Grade Type | Regular |
| Greaseable | No |
| Height | 7.48 |
| Height | 190.0 |
| Housing Material | Steel |
| Item Grade | Standard Replacement |
| Length | 3.94 |
| Length | 100.0 |
| Locking Nuts Included | Yes |
| Material | Steel |
| Washers Included | No |
| Weight | 0.17 |
| Width | 3.35 |
| Width | 85.0 |
| Fits | Toyota · 31 vehicles |
Standard replacement. OE expertise helps ensure compatibility with the aftermarket part.
Steel construction. Built with a steel housing for dependable suspension support.
Dust boot included. Helps protect the link from dirt and debris.
Cross-references Beck/Arnley 101-6394, MOOG Chassis Products K80946 and 48820-04020 for the same application. See all 3.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Delphi TC5466 Front Right Stabilizer Bar Link
Delphi TC5466 is a front right suspension stabilizer bar link built for Toyota Tacoma applications from 2005-2022. It uses a steel housing with a dust boot and standard replacement construction to support consistent sway bar connection performance on the front suspension.
Key Features
- Fits 2005-2022 Toyota Tacoma, front right
- Steel construction with steel housing
- Dust boot included
- Locking nuts included
- Standard replacement grade
- Delphi OE-focused aftermarket steering and suspension design
- Part number TC5466
Detailed Description
The Delphi TC5466 stabilizer bar link is engineered for the front right position on Toyota Tacoma trucks. Delphi applies OE dimensional and material analysis to help maintain proper part-to-vehicle match, and the component is tested across extreme temperature and corrosion conditions to verify durability in demanding service environments. This part cross-references Beck/Arnley 101-6394 for the same application. If you are replacing a worn front sway bar link on a Toyota Tacoma, TC5466 provides a direct-fit service part for the listed vehicle range.
Common Repair Symptoms
- Front-end clunking or rattling over bumps
- Excessive sway bar movement at the front right corner
- Loose or worn stabilizer link joints
- Uneven handling response during cornering
- Noise from the suspension stabilizer bar connection
Installation Notes
Install TC5466 at the front right suspension position on the listed Toyota Tacoma applications. Verify the existing link length, thread size, and mounting orientation before installation. Because this part is a standard replacement stabilizer bar link, inspect the surrounding sway bar bushings, control arm hardware, and adjacent suspension components during service. Professional installation is recommended when replacing front suspension linkage components.
Quality Assurance
Delphi backs this part with OE-focused engineering practices, including dimensional and material validation plus environmental testing for temperature extremes and salt spray exposure. The result is a suspension stabilizer bar link built to meet the demands of everyday road use on Toyota Tacoma front suspension service.
| Year | Make | Model | Submodel | Drive Type | Transmission | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2022 | Toyota | Tacoma | — | — | — | Front Right | — |
| 2021 | Toyota | Tacoma | — | — | — | Front Right | — |
| 2020 | Toyota | Tacoma | — | — | — | Front Right | — |
| 2019 | Toyota | Tacoma | — | — | — | Front Right | — |
| 2018 | Toyota | Tacoma | — | — | — | Front Right | — |
| 2017 | Toyota | Tacoma | — | — | — | Front Right | — |
| 2016 | Toyota | Tacoma | — | — | — | Front Right | — |
| 2015 | Toyota | Tacoma | — | — | — | Front Right | — |
| 2015 | Toyota | Tacoma | Pre Runner | RWD | — | Front Right | — |
| 2015 | Toyota | Tacoma | — | 4WD | — | Front Right | — |
| 2014 | Toyota | Tacoma | — | — | — | Front Right | — |
| 2014 | Toyota | Tacoma | Pre Runner | RWD | — | Front Right | — |
| 2014 | Toyota | Tacoma | — | 4WD | — | Front Right | — |
| 2013 | Toyota | Tacoma | Pre Runner | RWD | — | Front Right | — |
| 2013 | Toyota | Tacoma | — | 4WD | — | Front Right | — |
| 2012 | Toyota | Tacoma | Pre Runner | RWD | — | Front Right | — |
| 2012 | Toyota | Tacoma | — | 4WD | — | Front Right | — |
| 2011 | Toyota | Tacoma | Pre Runner | RWD | Automatic | Front Right | — |
| 2011 | Toyota | Tacoma | — | 4WD | — | Front Right | — |
| 2010 | Toyota | Tacoma | Pre Runner | RWD | — | Front Right | — |
| 2010 | Toyota | Tacoma | — | 4WD | — | Front Right | — |
| 2009 | Toyota | Tacoma | Pre Runner | RWD | — | Front Right | — |
| 2009 | Toyota | Tacoma | — | 4WD | — | Front Right | — |
| 2008 | Toyota | Tacoma | Pre Runner | RWD | — | Front Right | — |
| 2008 | Toyota | Tacoma | — | 4WD | — | Front Right | — |
| 2007 | Toyota | Tacoma | Pre Runner | RWD | — | Front Right | — |
| 2007 | Toyota | Tacoma | — | 4WD | — | Front Right | — |
| 2006 | Toyota | Tacoma | Pre Runner | RWD | — | Front Right | — |
| 2006 | Toyota | Tacoma | — | 4WD | — | Front Right | — |
| 2005 | Toyota | Tacoma | Pre Runner | RWD | — | Front Right | — |
| 2005 | Toyota | Tacoma | — | 4WD | — | Front Right | — |
