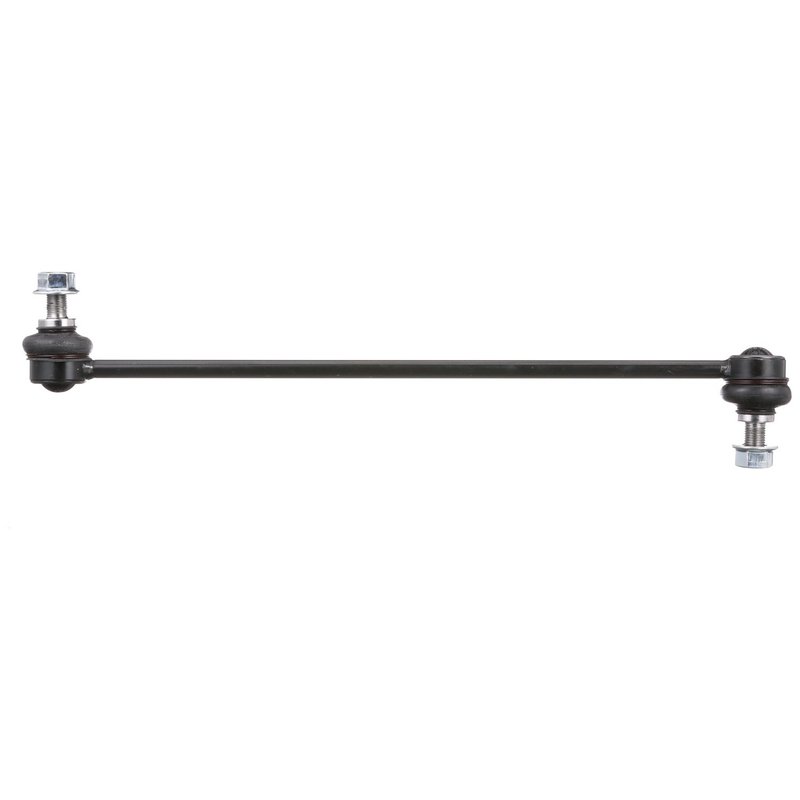

Delphi TC5496 Suspension Stabilizer Bar Link - Front
| Brand | Delphi TC5496 |
|---|---|
| Position | Front |
| Bearing Material | Plastic |
| Bolt Head Diameter | 12.0 |
| Bolt Length | 0.925 |
| Bolt Length | 23.5 |
| Bolt Thread Diameter | 12.0 |
| Bolt Thread Size | 12 |
| Bolts Included | No |
| Bushings Included | No |
| Dust Boot Included | Yes |
| End 1 Type | Ball Joint |
| End 2 Type | Ball Joint |
| Grade Type | Regular |
| Greaseable | No |
| Height | 3.937 |
| Height | 100.0 |
| Housing Material | Steel |
| Item Grade | Standard Replacement |
| Length | 14.508 |
| Length | 368.5 |
| Locking Nuts Included | Yes |
| Material | Steel |
| Washers Included | No |
| Weight | 0.32 |
| Width | 1.575 |
| Width | 40.0 |
| Fits | Honda · 9 vehicles |
Standard replacement. OE expertise and dimensional analysis help ensure compatibility with the aftermarket part.
Steel construction. Built with a steel body and housing for dependable suspension performance.
Ball joint ends. Both ends use ball joints for smooth articulation in the stabilizer bar link.
Cross-references Beck/Arnley 101-6389, MOOG Chassis Products K750097 and 51320-SJC-A01 for the same application. See all 3.
Delphi TC5496 Front Stabilizer Bar Link
Delphi TC5496 is a front suspension stabilizer bar link built for OE-style replacement on the 2006-2014 Honda Ridgeline. It uses steel construction, ball joint ends, and a dust boot to support consistent sway bar connection and steering response in everyday driving.
Key Features
- Front suspension stabilizer bar link for Honda Ridgeline applications
- Steel housing and steel construction for standard replacement use
- Ball joint ends on both sides for sway bar connection
- Dust boot included to help protect the joint area
- Locking nuts included
- Non-greaseable design with regular grade construction
- Delphi part number TC5496
Detailed Description
Delphi TC5496 is a front stabilizer bar link engineered for the 2006-2014 Honda Ridgeline. It is built with steel material, a steel housing, and ball joint ends at both connections to restore the stabilizer barโs link between the suspension and chassis. Delphi applies dimensional and material analysis to support OE-level fitment, and the part is tested across extreme temperature ranges and salt-spray exposure to evaluate durability in demanding conditions. This part cross-references Beck/Arnley 101-6389 for the same application.
What It Helps Address
- Front-end clunking or rattling from a worn stabilizer bar link
- Excessive sway bar play that can affect handling feel
- Loose or noisy suspension movement over bumps
- Uneven steering response caused by worn link joints
- Replacement needs on a 2006-2014 Honda Ridgeline front suspension
Installation Notes and Tips
Fits 2006-2014 Honda Ridgeline, front. Verify the existing link length, bolt thread size, and mounting style before installation. Because this is a non-greaseable stabilizer bar link with ball joint ends, inspect the surrounding sway bar bushings and adjacent suspension components during service. Delphi TC5496 is also listed as a cross-reference to MOOG Chassis Products K750097 for the same application.
Quality Assurance
Delphi uses OE-focused engineering and validation methods for its steering and suspension portfolio. This part is evaluated for temperature extremes below -40 degrees C and above 120 degrees C, and it is exposed to 720 hours of salt spray testing to assess corrosion resistance and durability.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2014 | Honda | Ridgeline | Front | — |
| 2013 | Honda | Ridgeline | Front | — |
| 2012 | Honda | Ridgeline | Front | — |
| 2011 | Honda | Ridgeline | Front | — |
| 2010 | Honda | Ridgeline | Front | — |
| 2009 | Honda | Ridgeline | Front | — |
| 2008 | Honda | Ridgeline | Front | — |
| 2007 | Honda | Ridgeline | Front | — |
| 2006 | Honda | Ridgeline | Front | — |
