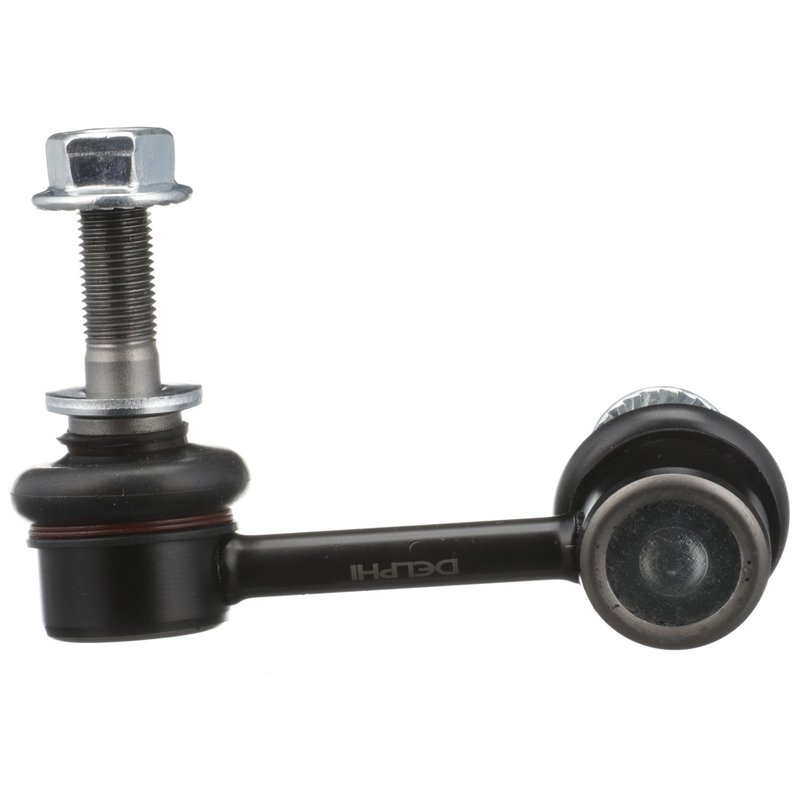

Delphi TC5522 Suspension Stabilizer Bar Link - Front Right

Delphi Suspension Stabilizer Bar Link Overview

The Delphi TC5522 suspension stabilizer bar link is engineered for precise fitment and reliable performance on select Lexus models. Designed to maintain suspension stability, this component is essential for vehicles like the Lexus GS300, GS350, IS250, IS300, IS350, RC300, and RC350.

• Durable steel ball pin construction for strength and longevity
• Performance-grade standard replacement part
• Includes dust boot and washers for protection and secure installation
• Male M12 x 1.25 threaded ends on both sides for direct fit
• Compatible with front right position on specified Lexus models

Technical Specifications and Features

The TC5522 stabilizer bar link features a steel housing and a ball pin made from high-strength steel, ensuring durability under demanding driving conditions. The bearing material is polyoxymethylene (POM), which offers low friction and wear resistance. This link measures 123.0 mm (4.843 inches) in length with a width of 72.0 mm (2.835 inches) and a height of 84.0 mm (3.307 inches). Both ends have male M12 x 1.25 threads, facilitating straightforward installation. The part includes dust boots and washers but does not come with bushings or bolts. Locking nuts are included to secure the connection and maintain suspension integrity. The TC5522 is a non-greaseable component designed for the front right suspension stabilizer bar on compatible Lexus vehicles.

Compatible Lexus Models and Applications

This suspension stabilizer bar link is compatible with the following Lexus models: GS300, GS350, IS250, IS300, IS350, RC300, and RC350. It is specifically designed for the front right position, ensuring proper fit and function within the suspension system. The Delphi TC5522 part number corresponds to a direct replacement for worn or damaged stabilizer bar links on these vehicles.

Common Issues Addressed by the TC5522 Stabilizer Bar Link

• Excessive body roll during cornering
• Clunking or knocking noises from the front suspension
• Uneven tire wear due to suspension instability
• Loose or worn suspension components affecting handling
• Reduced steering response and vehicle control

Installation Notes and Tips

Installation of the Delphi TC5522 stabilizer bar link requires removal of the old link from the front right suspension. Ensure the vehicle is securely lifted and supported before beginning work. The included locking nuts should be torqued to manufacturer specifications to prevent loosening. Since this part is non-greaseable, no additional lubrication is necessary beyond what is provided by the dust boot. Verify thread compatibility (M12 x 1.25) before installation to avoid cross-threading. Professional installation is recommended for optimal safety and performance.

Quality Assurance and Warranty

Delphi suspension components are manufactured to meet or exceed OEM standards. The TC5522 stabilizer bar link is a performance-grade, standard replacement part backed by Delphi's quality control processes. While specific warranty details may vary, Delphi typically offers coverage against manufacturing defects. Refer to Delphi's official documentation for exact warranty terms.
