Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

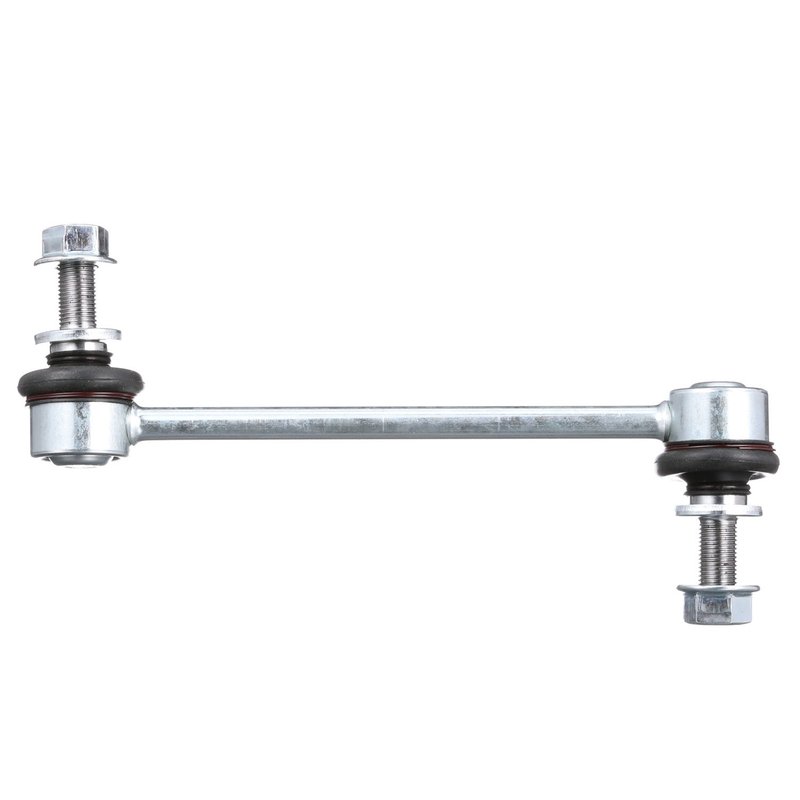

Delphi TC5560 Suspension Stabilizer Bar Link - Rear
| Brand | Delphi TC5560 |
|---|---|
| Position | Rear |
| Bearing Material | Plastic |
| Bolt Head Diameter | 12.0 |
| Bolt Length | 1.181 |
| Bolt Length | 30.0 |
| Bolt Thread Diameter | 12.0 |
| Bolt Thread Size | 12 |
| Bolts Included | No |
| Bushings Included | No |
| Dust Boot Included | Yes |
| End 1 Type | Ball Joint |
| End 2 Type | Ball Joint |
| Grade Type | Regular |
| Greaseable | No |
| Height | 4.606 |
| Height | 117.0 |
| Housing Material | Steel |
| Item Grade | Standard Replacement |
| Length | 7.421 |
| Length | 188.5 |
| Locking Nuts Included | Yes |
| Material | Steel |
| Washers Included | No |
| Weight | 0.2 |
| Width | 1.575 |
| Width | 40.0 |
| Fits | Toyota · 6 vehicles |
Standard replacement. OE expertise and dimensional analysis help ensure compatibility.
Steel construction. Built with a dust boot for added protection and durability.
Ball joint ends. Provides stable suspension linkage with a direct-fit design.
Cross-references 101-4983, 536-369 and 48830-AF010 for the same application. See all 4.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Rear Stabilizer Bar Link for Toyota Tundra
Delphi TC5560 is a rear suspension stabilizer bar link built for the 2002-2006 Toyota Tundra. It uses steel construction with ball joint ends and a dust boot to support consistent rear suspension control and OE-style fitment.
Key Features
- Fits 2002-2006 Toyota Tundra, rear
- Steel housing and steel construction for durable service
- Ball joint ends on both sides for suspension articulation
- Dust boot included to help protect the joint area
- Standard replacement part for rear stabilizer bar service
- Delphi TC5560 cross-references Monroe Shocks & Struts 172286 for the same application
Detailed Description
Delphi TC5560 is a rear suspension stabilizer bar link for Toyota Tundra models from 2002 through 2006. It is engineered with OE-focused dimensional and material analysis to support proper compatibility with the original suspension layout. The steel body, ball joint ends, and included dust boot make it a direct replacement choice for rear sway bar link service on the Toyota Tundra. Delphi TC5560 is also referenced by part number TC5560 in catalog and service lookup use.
Common Issues This Part May Address
- Rear suspension noise over bumps or uneven pavement
- Excessive play in the stabilizer bar connection
- Clunking or rattling from worn rear link joints
- Reduced rear-end stability from a loose sway bar link
- Wear-related handling changes in a Toyota Tundra rear suspension
Installation Notes and Tips
Verify rear position and match the original link length, thread size, and end style before installation. Inspect the stabilizer bar bushings, mounting points, and adjacent suspension components for wear while replacing the link. Torque fasteners to the vehicle manufacturer’s specification and confirm that the dust boot seats correctly after installation.
Quality Assurance
Delphi applies OE engineering standards to its aftermarket steering and suspension portfolio. This part is tested across extreme temperature ranges and salt-spray exposure to support durability in demanding service conditions. Delphi TC5560 is built as a standard replacement stabilizer bar link for the specified Toyota Tundra rear application.
| Year | Make | Model | Body Type | Drive Type | Position | Notes |
|---|---|---|---|---|---|---|
| 2006 | Toyota | Tundra | Extended Cab Pickup | RWD | Rear | — |
| 2005 | Toyota | Tundra | Extended Cab Pickup | RWD | Rear | — |
| 2004 | Toyota | Tundra | Standard Cab Pickup | RWD | Rear | — |
| 2004 | Toyota | Tundra | Extended Cab Pickup | RWD | Rear | — |
| 2003 | Toyota | Tundra | — | RWD | Rear | — |
| 2002 | Toyota | Tundra | — | RWD | Rear | — |
