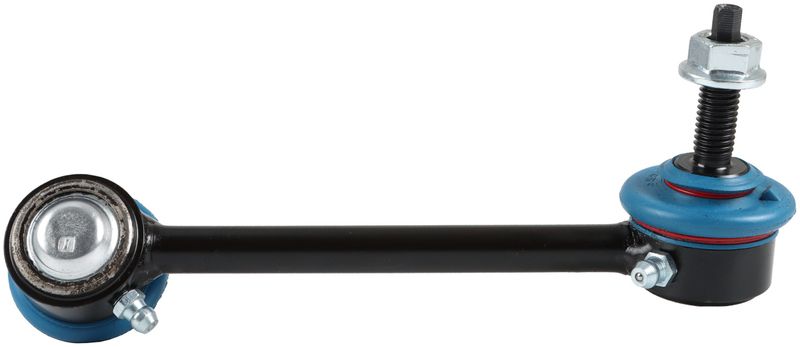

Delphi TC5593PX Suspension Stabilizer Bar Link - Front Left
| Brand | Delphi TC5593PX |
|---|---|
| Position | Front Left |
| Material | Steel |
| Length | 188.00 |
| Length | 7.402 |
| Color | Black |
| End 1 Type | Ball joint |
| End 2 Type | Ball joint |
| Pipe Diameter | 0.472 |
| Pipe Diameter | 12.00 |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Width | 2.598 |
| Width | 66.00 |
| Washers Included | No |
| Height | 101.80 |
| Height | 4.007 |
| Nuts Included | Yes |
| Grade Type | Improved design |
| Bolts Included | No |
| Housing Material | Steel |
| Boot Material | Rubber |
| Greaseable | Yes |
| Bar Diameter | 0.472 |
| Bar Diameter | 12.00 |
| Weight | 0.64 |
| Bearing Material | Plastic |
| Wrench Size | 6mm |
| Distance Between Mounting Holes | 156.00 |
| Locking Nuts Included | Yes |
| Hardware Included | Yes |
| Product line | Professional+ |
| Fits | Chevrolet, GMC, and Isuzu · 21 vehicles |
Serviceable design. Greaseable construction supports periodic maintenance and longer part life.
Durable materials. Steel housing, rubber boot, and plastic bearing materials handle harsh conditions.
Improved Design. Built to reduce axial deflection and help maintain suspension alignment.
Cross-references Dorman - Premium SL90231XL, Mevotech Original Grade GK80582 and Mevotech Supreme MK80582 for the same application. See all 7.
Overview
Delphi Professional+ suspension stabilizer bar link TC5593PX is built for fleet and working vehicles that need consistent chassis control under load. It uses steel construction, ball joint ends, and a greaseable design to support long service life and stable handling.
Compatible With Chevrolet Colorado, GMC Canyon, and Isuzu i-370 and i-350 applications, this front left stabilizer bar link is engineered to reduce axial deflection and help maintain alignment. The TC5593PX part number is also referenced by several cross-application chassis listings.
Key Features
- Steel stabilizer bar link with black finish
- Ball joint ends for controlled suspension movement
- Greaseable design for serviceable maintenance
- Dust boot included to help protect internal components
- Improved Design grade construction
- Nuts and locking nuts included
Detailed Description
Delphi Professional+ chassis parts are developed for demanding service conditions where suspension performance and uptime matter. This stabilizer bar link is built to minimize axial deflection under load, which helps preserve alignment and handling response while supporting longer suspension life. The TC5593PX uses steel housing and bar construction, rubber boot material, and plastic bearing material for a durable service-focused design.
Fits 2004-2012 Chevrolet Colorado, front left. Fits 2004-2012 GMC Canyon, front left. Fits 2007-2008 Isuzu i-370, front left. Fits 2006 Isuzu i-350, front left. This part cross-references MOOG Chassis Products (e.g., K80582) for the same application.
What It Helps Address
- Excessive sway bar link play or looseness
- Noisy suspension movement from worn ball joint ends
- Handling instability caused by worn chassis linkage
- Premature wear from contaminated or dry service points
- Alignment concerns related to suspension deflection
Installation Notes
Verify front left fitment before installation and compare the existing link length, end style, and mounting-hole spacing to the replacement part. The greaseable design supports periodic servicing, and the included dust boot and locking nuts should be checked during installation for proper seating and torque.
Quality Assurance
Delphi Professional+ chassis parts are built with premium materials for harsh road and weather exposure and are intended to support extended service life in demanding fleet use. The serviceable, regreasable design is part of the Professional+ line’s focus on long-term performance and reduced downtime.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2012 | Chevrolet | Colorado | RWD | Front Left | Professional+ |
| 2012 | GMC | Canyon | RWD | Front Left | Professional+ |
| 2011 | Chevrolet | Colorado | RWD | Front Left | Professional+ |
| 2011 | GMC | Canyon | RWD | Front Left | Professional+ |
| 2010 | Chevrolet | Colorado | RWD | Front Left | Professional+ |
| 2010 | GMC | Canyon | RWD | Front Left | Professional+ |
| 2009 | Chevrolet | Colorado | RWD | Front Left | Professional+ |
| 2009 | GMC | Canyon | RWD | Front Left | Professional+ |
| 2008 | Chevrolet | Colorado | RWD | Front Left | Professional+ |
| 2008 | GMC | Canyon | RWD | Front Left | Professional+ |
| 2008 | Isuzu | i-370 | 4WD | Front Left | Professional+ |
| 2007 | Chevrolet | Colorado | RWD | Front Left | Professional+ |
| 2007 | GMC | Canyon | RWD | Front Left | Professional+ |
| 2007 | Isuzu | i-370 | 4WD | Front Left | Professional+ |
| 2006 | Chevrolet | Colorado | RWD | Front Left | Professional+ |
| 2006 | GMC | Canyon | RWD | Front Left | Professional+ |
| 2006 | Isuzu | i-350 | — | Front Left | Professional+ |
| 2005 | Chevrolet | Colorado | RWD | Front Left | Professional+ |
| 2005 | GMC | Canyon | RWD | Front Left | Professional+ |
| 2004 | Chevrolet | Colorado | RWD | Front Left | Professional+ |
| 2004 | GMC | Canyon | RWD | Front Left | Professional+ |
