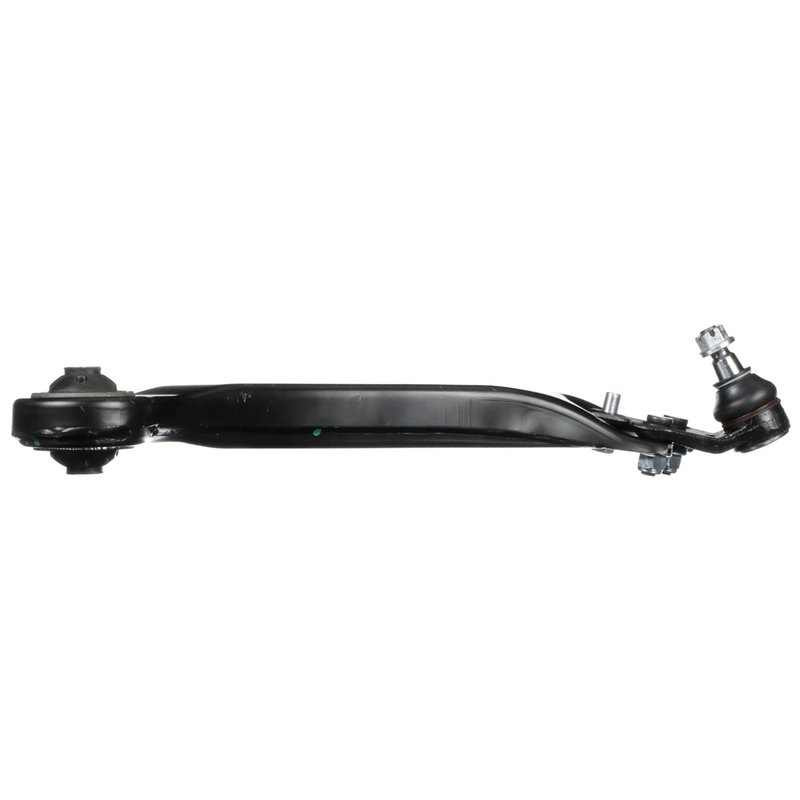

Delphi TC5614 Suspension Control Arm and Ball Joint Assembly - Front Right Lower

Delphi Suspension Control Arm and Ball Joint Assembly Overview

The Delphi TC5614 suspension control arm and ball joint assembly is designed for front right lower suspension applications on select Lexus and Toyota models. This pre-greased, stamped steel control arm offers a reliable replacement option engineered to meet standard suspension requirements for vehicles like the Toyota Camry, Avalon, and Lexus ES300h and ES350.

• Pre-greased stamped steel control arm for durability
• Includes mounting hardware for straightforward installation
• Ball joint with threaded stud and bolt-in mounting type
• Designed for light suspension grade applications
• Compatible with front right lower position on Lexus and Toyota models

Technical Details and Construction

The Delphi TC5614 control arm features a stamped steel construction finished in black for corrosion resistance. It is pre-greased to reduce initial maintenance and improve longevity. The assembly includes a ball joint with a 14 mm thread diameter and a 5.433 inch stud length, secured via a bolt-in mounting type. This control arm is designed for light suspension grade use and does not include bushings, which are rubber material in the original setup. The assembly comes with two mounting holes, sized 29.8 mm and 59.8 mm in diameter, and includes all necessary mounting hardware for installation.

Compatible Vehicles and Applications

This suspension control arm and ball joint assembly is compatible with the following vehicles:

• Toyota Camry (front right lower suspension)
• Toyota Avalon (front right lower suspension)
• Lexus ES300h (front right lower suspension)
• Lexus ES350 (front right lower suspension)

It is designed to replace worn or damaged front right lower suspension control arms and ball joints, restoring proper suspension geometry and vehicle handling.

Common Issues Addressed by This Control Arm Assembly

• Excessive suspension play or looseness in the front right lower control arm
• Clunking or knocking noises during driving or over bumps
• Uneven tire wear caused by misaligned suspension components
• Reduced steering responsiveness or stability
• Visible damage or corrosion on the original control arm or ball joint

Installation Notes and Tips

Installation of the Delphi TC5614 control arm assembly requires basic suspension tools and mechanical knowledge. Since the assembly is pre-greased and includes mounting hardware, it simplifies the replacement process. Ensure the vehicle is securely lifted and supported before removing the old control arm. Torque all mounting bolts to manufacturer specifications. This part is not adjustable and does not include grease fittings, so no additional lubrication is necessary after installation.

Quality Assurance and Warranty

The Delphi TC5614 is a standard replacement grade suspension component manufactured to meet OEM specifications. Delphi provides quality assurance through rigorous testing and material standards. This part is backed by Delphi's limited warranty against defects in materials and workmanship, ensuring reliable performance for your Lexus or Toyota vehicle.
