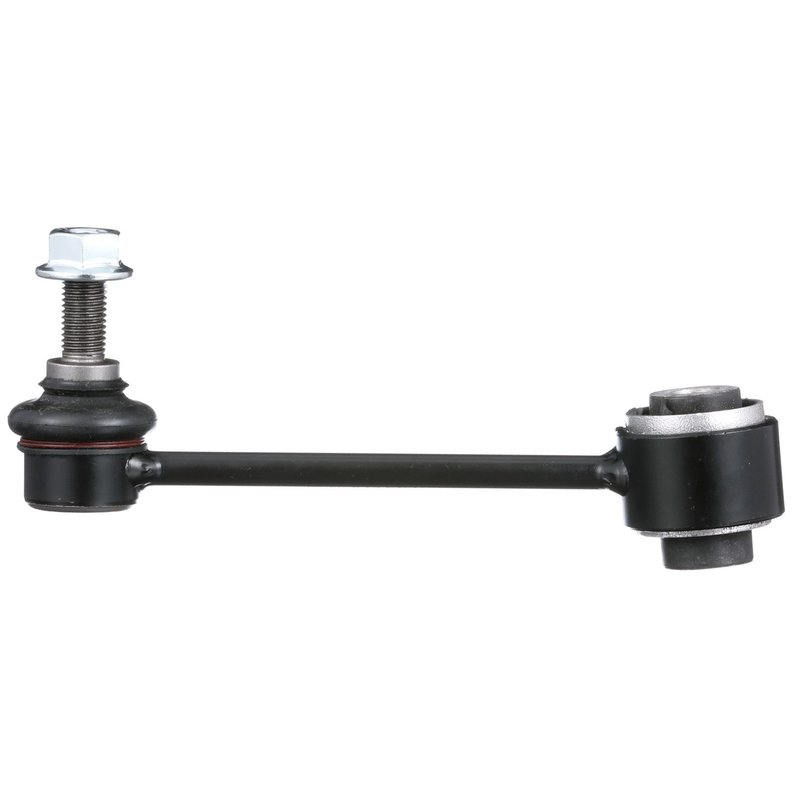

Delphi TC5624 Suspension Stabilizer Bar Link - Front

Delphi Suspension Stabilizer Bar Link for Porsche Panamera

The Delphi TC5624 suspension stabilizer bar link is engineered to restore precise handling and stability for your Porsche Panamera. Designed with durable steel ball pins and natural rubber bushings, this component ensures reliable performance under demanding driving conditions.

• Material: Steel ball pin with natural rubber bushings
• Bushing outside diameter: 1.437 inches (36.5 mm)
• Length: 7.992 inches (203.0 mm)
• End 2 type: Male M12 x 1.50 thread
• Includes bushings, dust boot, and locking nuts
• Housing made of steel for enhanced durability
• Performance grade type for improved suspension response
• Weight: 0.8 lbs
• Compatible with Porsche Panamera models

Technical Details and Construction

The Delphi TC5624 suspension stabilizer bar link features a steel ball pin paired with natural rubber bushings to provide a balance of strength and vibration dampening. The bushings have an outside diameter of 1.437 inches (36.5 mm) and an inside diameter of 0.906 inches, ensuring a secure fit. The steel housing and included dust boot protect internal components from contaminants, extending service life. The male M12 x 1.50 threaded end allows for straightforward installation and secure attachment. This performance-grade stabilizer link is designed to maintain suspension geometry and improve handling precision on Porsche Panamera vehicles.

Purpose and Problem Solving

• Reduces suspension noise and clunking during cornering
• Restores proper stabilizer bar function for improved vehicle stability
• Eliminates excessive play or looseness in suspension linkage
• Prevents uneven tire wear caused by suspension misalignment
• Enhances overall ride comfort and handling response

Installation Notes and Tips

Installation of the Delphi TC5624 stabilizer bar link requires basic suspension tools and mechanical knowledge. The included locking nuts help secure the link in place, but torque specifications should be followed according to Porsche Panamera service manuals. The dust boot should be inspected during installation to ensure it is properly seated to protect the joint from dirt and moisture. Although the link is not greaseable, the natural rubber bushings provide adequate durability for typical driving conditions.

Quality Assurance and Warranty

Delphi suspension components are manufactured to meet or exceed OEM standards for fit, form, and function. The TC5624 stabilizer bar link undergoes rigorous quality control to ensure consistent performance and durability. This part is backed by Delphi's limited warranty against defects in materials and workmanship, providing confidence in its reliability for Porsche Panamera suspension repairs.
