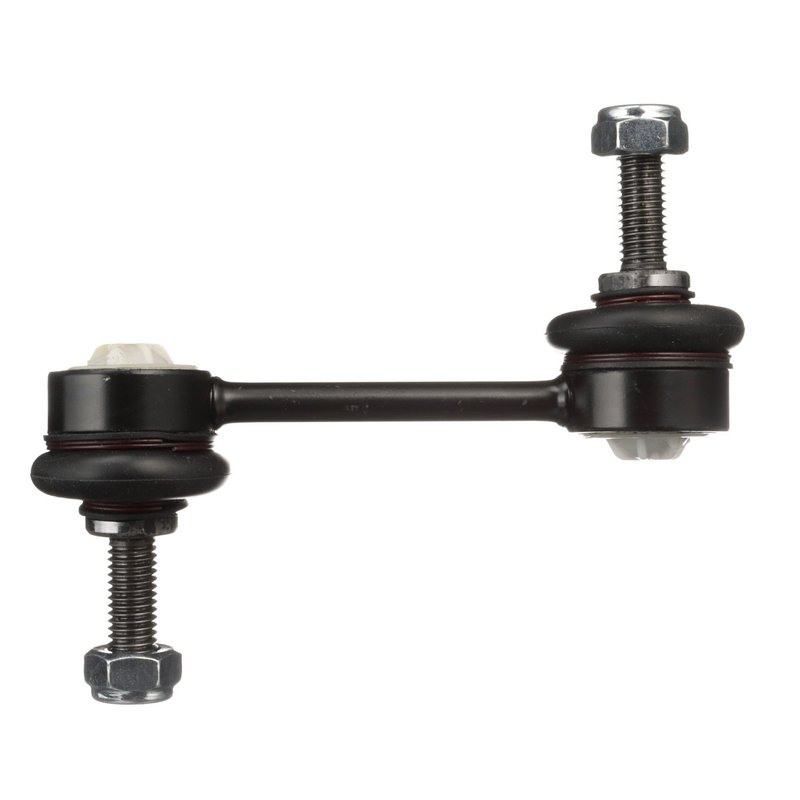

Delphi TC5634 Suspension Stabilizer Bar Link - Rear

Delphi Suspension Stabilizer Bar Link for Chevrolet Camaro

The Delphi TC5634 suspension stabilizer bar link is engineered for rear suspension systems on Chevrolet Camaro models. Designed with durable steel ball pins and a steel housing, this stabilizer bar link offers reliable performance and precise fitment for your Camaro's suspension needs.

• Material: Steel ball pin for strength and durability
• Length: 138.0 mm (5.433 inches)
• End Types: Male M10 x 1.50 on both ends for secure mounting
• Dust Boot Included: Yes, to protect internal components
• Locking Nuts Included: Yes, for secure installation
• Housing Material: Steel for enhanced structural integrity
• Bearing Material: Polyoxymethylen (POM) for smooth operation
• Position: Rear suspension stabilizer bar link
• Grade Type: Performance, suitable for standard replacement needs

Product Details and Specifications

The Delphi TC5634 suspension stabilizer bar link is specifically designed for the rear suspension of Chevrolet Camaro vehicles. Measuring 138 mm in length with a width of 38 mm and height of 111 mm, this component features male M10 x 1.50 threaded ends on both sides, ensuring compatibility with factory mounting points. The steel ball pin and housing provide durability under typical driving conditions, while the included dust boot protects the joint from dirt and debris. The bearing is made from polyoxymethylen (POM), a material known for its low friction and wear resistance. This part is not greaseable but includes locking nuts to maintain secure attachment during operation.

Common Applications and Problem Resolution

• Reduces suspension noise caused by worn or damaged stabilizer bar links
• Improves vehicle handling and stability by maintaining proper sway bar function
• Eliminates excessive play or looseness in the rear suspension system
• Prevents uneven tire wear related to suspension misalignment
• Restores original suspension geometry for safer driving dynamics

Installation Notes and Tips

Installation of the Delphi TC5634 stabilizer bar link requires basic suspension tools. The included locking nuts should be torqued to manufacturer specifications to ensure secure fitment. Use a 16 mm and 5 mm wrench for the nuts and bolts as specified. Since bushings and bolts are not included, reuse existing hardware if in good condition or source replacements as needed. The dust boot should be inspected during installation to confirm it is properly seated to prevent premature wear.

Quality Assurance and Warranty

Delphi suspension components are manufactured to meet or exceed OEM standards. The TC5634 stabilizer bar link is a standard replacement grade part designed for reliable performance in Chevrolet Camaro rear suspension systems. This product includes locking nuts for secure installation and is backed by Delphi's quality control processes. Warranty coverage details should be confirmed with the point of purchase or Delphi directly.
