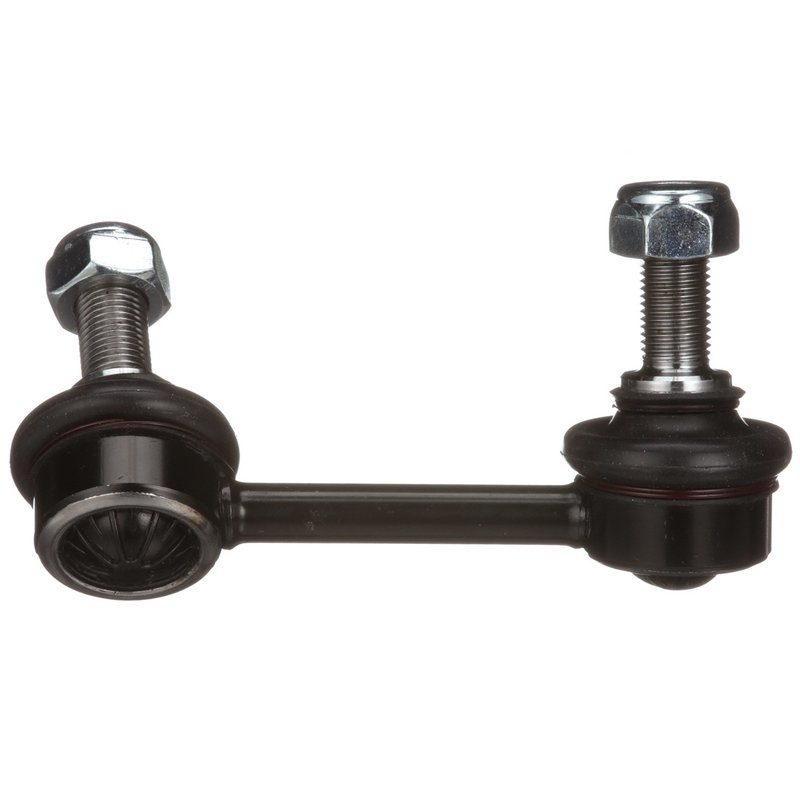

Delphi TC5690 Suspension Stabilizer Bar Link - Front Right
| Brand | Delphi TC5690 |
|---|---|
| Position | Front Right |
| Bearing Material | Plastic |
| Bolt Head Diameter | 12.0 |
| Bolt Length | 1.055 |
| Bolt Length | 26.8 |
| Bolt Thread Diameter | 12.0 |
| Bolt Thread Size | M12 x 1.25 |
| Bolts Included | No |
| Bushings Included | No |
| Dust Boot Included | Yes |
| End 1 Type | Ball Joint |
| End 2 Type | Ball Joint |
| Grade Type | Regular |
| Greaseable | No |
| Height | 2.756 |
| Height | 70.0 |
| Housing Material | Steel |
| Item Grade | Standard Replacement |
| Length | 3.543 |
| Locking Nuts Included | Yes |
| Washers Included | No |
| Weight | 0.15 |
| Width | 2.362 |
| Width | 60.0 |
| Fits | Kia · 3 vehicles |
Standard replacement. OE expertise and dimensional analysis help ensure compatibility with the aftermarket part.
Steel housing. Built with a dust boot and ball joint ends for dependable suspension articulation.
Locking nuts included. Ready for a secure install with no bushings, washers, or bolts included.
Cross-references Beck/Arnley 101-5470, QuickSteer K750165 and 54811-3E160 for the same application. See all 3.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Delphi TC5690 Front Right Stabilizer Bar Link
Delphi TC5690 is a front right suspension stabilizer bar link built for OE-style replacement on select Kia Sorento models. It uses ball joint ends, a steel housing, and a dust boot to support consistent sway bar connection and steering response.
Key Features
- Fits 2007-2009 Kia Sorento, front right
- Ball joint ends on both sides for suspension articulation
- Steel housing with dust boot included
- Standard replacement part for OE-style service
- Bolt thread size: M12 x 1.25
- Locking nuts included
- Delphi part number TC5690
Detailed Description
This Delphi suspension stabilizer bar link is engineered for the front right position on 2007-2009 Kia Sorento vehicles. Delphi applies OE-focused dimensional and material analysis to help ensure proper fit and consistent performance in the aftermarket. The TC5690 uses ball joint ends at both connections, a steel housing, and a protective dust boot to support stable sway bar operation under everyday driving conditions. Delphi TC5690 is a direct-fit suspension stabilizer bar link for Sorento owners replacing worn front suspension hardware.
This part cross-references Beck/Arnley 101-5470 and QuickSteer K750165 for the same application.
Common Problems This Part Can Help Address
- Front-end clunking or rattling from a worn stabilizer link
- Excessive sway bar movement over bumps and turns
- Loose or inconsistent steering feel at the front right corner
- Noise caused by worn ball joint-style link ends
- Suspension play from a deteriorated OE-style link assembly
Installation Notes and Tips
Install this link in the front right position only. Verify bolt thread size, mounting points, and suspension geometry before installation. Because this part uses ball joint ends and includes locking nuts, clean the mounting surfaces and inspect adjacent sway bar and control arm components for wear before final tightening. Professional installation is recommended for accurate torque and alignment checks.
Quality Assurance
Delphi subjects its OE-based steering and suspension components to extreme temperature testing and extended salt-spray exposure, along with dimensional and material validation for fit consistency. The TC5690 is built as a standard replacement part for dependable service on compatible Kia Sorento applications.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2009 | Kia | Sorento | Front Right | — |
| 2008 | Kia | Sorento | Front Right | — |
| 2007 | Kia | Sorento | Front Right | — |
