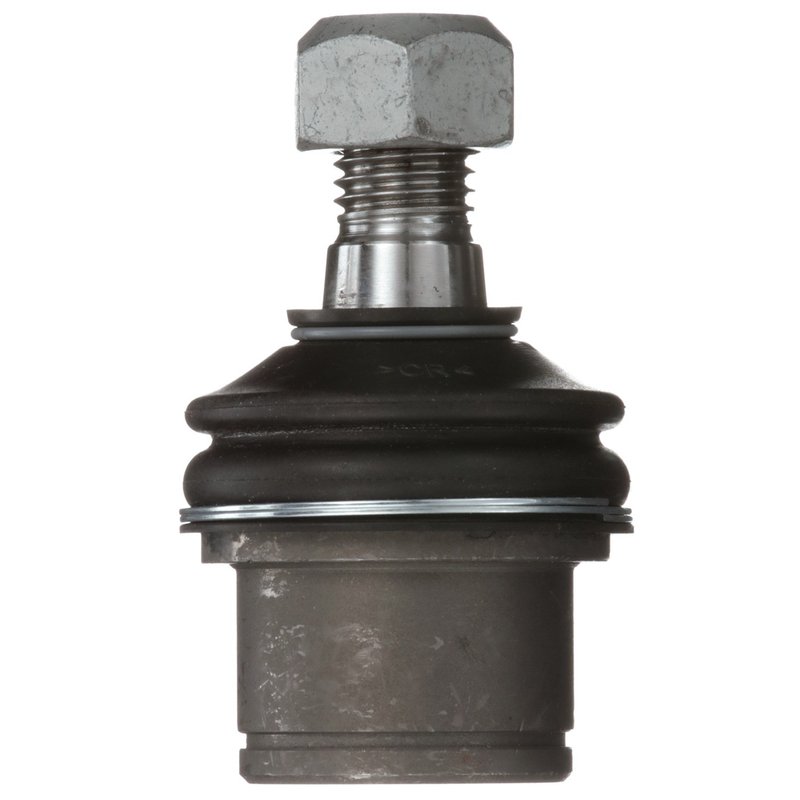

Delphi TC5696 Suspension Ball Joint - Front Lower

OE-Style Front Lower Ball Joint

Delphi TC5696 is a standard replacement suspension ball joint for select Ram and Dodge Ram front lower applications. Built with OE-focused dimensional and material analysis, it is made to match the original fit and function expected in steering and suspension service.

Compatible with front lower positions on Ram 2500, Ram 3500, Dodge Ram 2500, Dodge Ram 3500, and Dodge Ram 1500 applications listed below, Delphi TC5696 supports direct replacement service for worn or damaged ball joints.

Key Features

• Steel construction with a gray finish
• Press-in mounting type for front lower suspension use
• Ball joint assembly included
• Dust boot included with chloroprene rubber (CR) material
• Standard replacement grade
• Threaded, tapered stud design
• Mounting hardware and nuts included
• Grease fitting not included; greaseable design not used
• Adjustable design not used

Detailed Description

Delphi TC5696 is engineered for OE-style suspension service where precise fit and consistent articulation matter. Delphi applies dimensional and material analysis to help maintain compatibility between the original part and the aftermarket replacement, while its OE testing approach includes exposure to extreme temperatures and extended salt-spray conditions. For Ram 2500 and Ram 3500 front lower suspension repair, as well as Dodge Ram 1500 and Dodge Ram 2500 applications, this ball joint provides a direct-service solution for restoring front-end geometry and steering response.

This part cross-references MOOG Chassis Products (e.g., K7467, K7467T006) for the same application. Delphi TC5696 also cross-references OE numbers 5086674AB and 5086674AC.

What It Helps Fix

• Front-end looseness or play from a worn lower ball joint
• Clunking or knocking noises from the front suspension
• Uneven tire wear caused by suspension wear
• Steering wander or reduced directional stability
• Suspension service needs on high-mileage Ram and Dodge Ram trucks

Installation Notes and Tips

• Press-in installation is required for the front lower position.
• Verify vehicle application by year, make, model, and suspension configuration before installation.
• Inspect the surrounding control arm and related hardware for wear before pressing in the new ball joint.
• Use proper suspension service tools to avoid damage during removal and installation.
• Confirm the tapered, threaded stud seats correctly during assembly.

Quality Assurance

Delphi uses OE-focused engineering and validation methods for its steering and suspension portfolio. TC5696 is tested for temperature extremes and salt-spray exposure to support durability in demanding service conditions.

• Fits 2011-2013 Ram 2500, Front Lower
• Fits 2013 Ram 3500, Front Lower
• Fits 2011-2012 Ram 3500, Front Lower, Non-Adjustable Type
• Fits 2003-2010 Dodge Ram 2500, Front Lower
• Fits 2008-2010 Dodge Ram 3500, Front Lower, Non-Adjustable Type
• Fits 2006-2008 Dodge Ram 1500, Front Lower, with 8 Lug Wheels; Non-Adjustable Type
• Fits 2003-2007 Dodge Ram 3500, Front Lower
