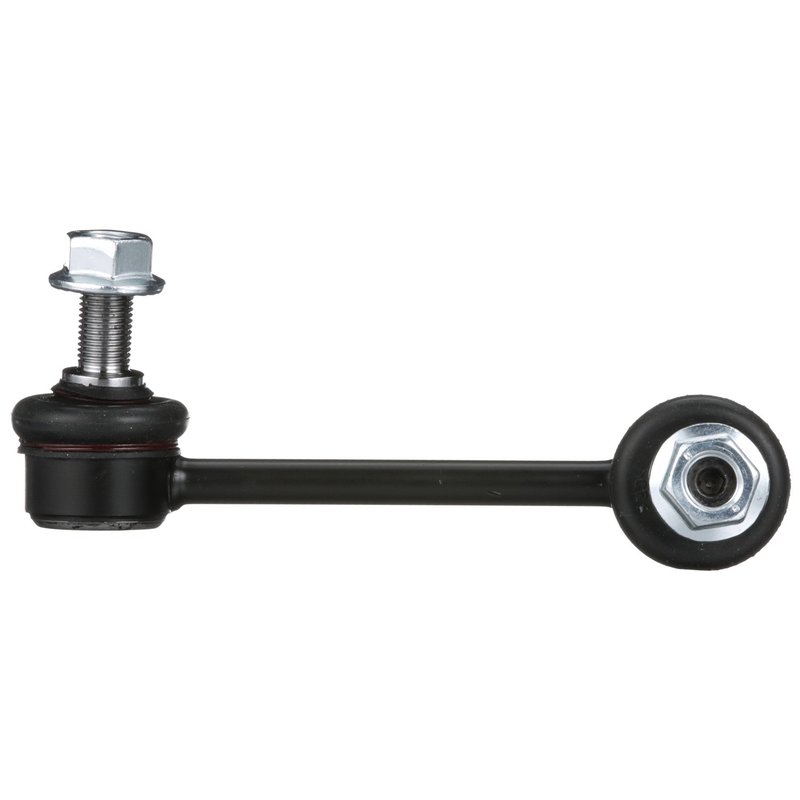

Delphi TC5716 Suspension Stabilizer Bar Link - Front Right

Delphi Front Right Stabilizer Bar Link

Delphi TC5716 is a front right suspension stabilizer bar link built as a standard replacement for select Hyundai applications. It uses a steel ball pin, steel housing, and a POM bearing material to support consistent sway bar connection performance in everyday driving.

Key Features

• Front right suspension stabilizer bar link for select Hyundai Equus and Hyundai Genesis models
• Delphi part number TC5716
• Male M12 x 1.25 ends on both sides
• Steel ball pin and steel housing construction
• Dust boot included for added joint protection
• Locking nuts included
• Standard replacement grade with performance-oriented construction
• Non-greaseable design

Detailed Description

Delphi TC5716 is a suspension stabilizer bar link for the front right position, engineered for direct replacement use on 2009-2013 Hyundai Genesis, 2014 Hyundai Genesis with leveling device - Auto(Dynamic) through 03/05/2014, and 2011-2016 Hyundai Equus. This stabilizer link helps maintain the connection between the sway bar and suspension assembly, supporting predictable front-end response and reduced looseness in the chassis linkage. Delphi applies OE-focused dimensional and material analysis to improve fit and compatibility, and the part is tested across extreme temperature and salt-spray exposure conditions to validate durability in demanding environments. This part cross-references MOOG Chassis Products K750384 for the same application.

What It Helps Address

• Front-end clunking or rattling from a worn stabilizer link
• Excessive sway bar play at the front right suspension corner
• Loose or inconsistent steering feel caused by linkage wear
• Noise over bumps from degraded ball joint or boot components
• Replacement needs after corrosion or joint fatigue

Installation Notes and Tips

Verify front right fitment before installation, especially on 2014 Hyundai Genesis models equipped with the leveling device - Auto(Dynamic) configuration through 03/05/2014. Confirm the M12 x 1.25 thread specification and mounting dimensions against the original part before assembly. Inspect the sway bar, control arm mounting points, and adjacent suspension components for wear so the new link is installed into a sound system.

Quality Assurance

Delphi uses OE-based engineering practices, dimensional checks, and material analysis to support fit accuracy and consistent replacement quality. The part is also validated through temperature and corrosion exposure testing to help confirm durability in real-world suspension service.
