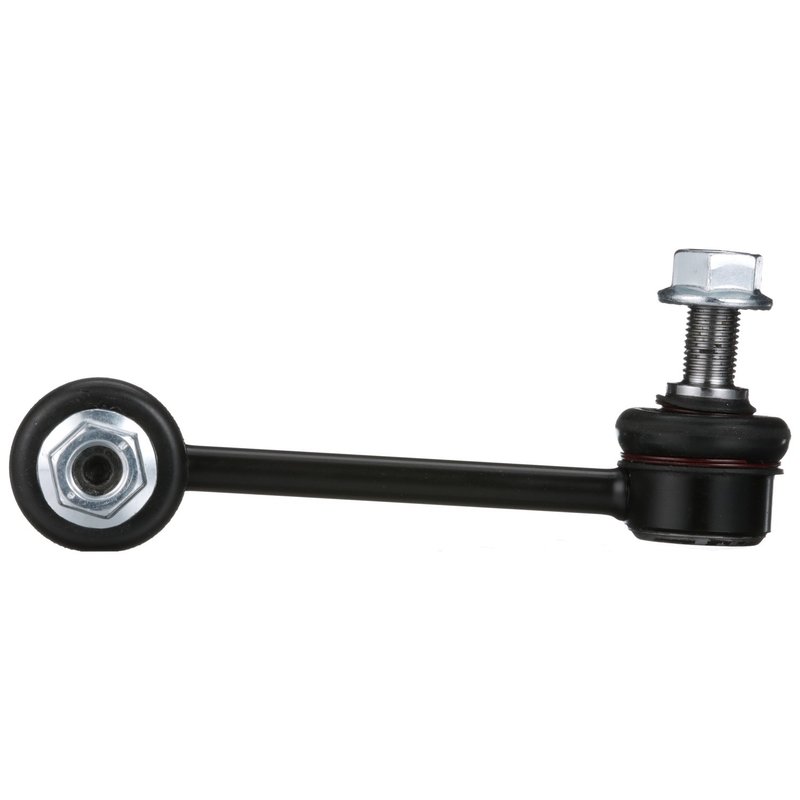

Delphi TC5719 Suspension Stabilizer Bar Link - Front Left
| Brand | Delphi TC5719 |
|---|---|
| Position | Front Left |
| Bearing Material | Polyoxymethilen (POM) |
| Bolts Included | No |
| Bushings Included | No |
| Distance Between Mounting Holes | 130.0 |
| Dust Boot Included | Yes |
| End 1 Type | Male - M12 x 1.25 |
| End 2 Type | Male - M12 x 1.25 |
| Grade Type | Performance |
| Greaseable | No |
| Height | 2.756 |
| Height | 70.0 |
| Housing Material | Steel |
| Item Grade | Standard Replacement |
| Length | 6.654 |
| Length | 169.0 |
| Locking Nuts Included | Yes |
| Material | Ball Pin - Steel |
| Washers Included | No |
| Weight | 0.85 |
| Width | 2.756 |
| Width | 70.0 |
| Wrench Size | 0.197 |
| Wrench Size | 5.0 |
| Fits | Hyundai · 12 vehicles |
Standard replacement. Delphi applies OE expertise for compatibility with the aftermarket part.
Steel construction. Built with a steel ball pin and steel housing for durable performance.
Dust boot included. Helps protect the joint from contamination and wear.
Cross-references Beck/Arnley 101-6956, MOOG Chassis Products K750383 and 54830-3M000 for the same application. See all 4.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
OE-Style Front Left Stabilizer Link
Delphi TC5719 is a front left suspension stabilizer bar link built for OE-style replacement on select Hyundai applications. It is engineered with Delphi’s aftermarket steering and suspension expertise, with dimensional and material analysis used to match OE fit and function.
- Front left suspension stabilizer bar link
- Steel ball pin and steel housing construction
- Polyoxymethylene (POM) bearing material
- Dust boot included
- Male M12 x 1.25 ends on both sides
- Locking nuts included
- Standard replacement, performance grade
- Non-greaseable design
Fitment Details
- Fits 2011-2016 Hyundai Equus, front left.
- Fits 2014 Hyundai Genesis, front left, for vehicle with leveling device - Auto(Dynamic).
- Fits 2009-2013 Hyundai Genesis, front left.
This part cross-references Beck/Arnley 101-6956 and MOOG Chassis Products K750383 for the same application. It also aligns with OE-style part numbers 54830-3M000 and 54830-3N000.
What This Part Helps Address
- Front-end clunking or rattling from a worn stabilizer link
- Excessive sway-bar play that affects steering response
- Uneven suspension movement over bumps and rough pavement
- Noise caused by deteriorated link joints or boot failure
- Restoring proper front suspension connection on Hyundai Equus and Genesis models
Installation Notes
Install on the front left position only. Verify thread size, mounting-hole spacing, and vehicle configuration before installation, especially on the 2014 Hyundai Genesis with leveling device - Auto(Dynamic). The link uses male M12 x 1.25 ends and includes locking nuts; no bushings, washers, or bolts are listed as included.
Quality Assurance
Delphi subjects this stabilizer link to extreme temperature testing from below -40 degrees C to above 120 degrees C and to 720 hours of salt spray exposure. That testing, along with OE dimensional and material analysis, supports consistent fitment and corrosion resistance for Hyundai Equus and Hyundai Genesis front left applications.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2016 | Hyundai | Equus | Front Left | — |
| 2015 | Hyundai | Equus | Front Left | — |
| 2014 | Hyundai | Equus | Front Left | — |
| 2014 | Hyundai | Genesis | Front Left | For vehicle with Leveling device - Auto(Dynamic) |
| 2013 | Hyundai | Equus | Front Left | — |
| 2013 | Hyundai | Genesis | Front Left | — |
| 2012 | Hyundai | Equus | Front Left | — |
| 2012 | Hyundai | Genesis | Front Left | — |
| 2011 | Hyundai | Equus | Front Left | — |
| 2011 | Hyundai | Genesis | Front Left | — |
| 2010 | Hyundai | Genesis | Front Left | — |
| 2009 | Hyundai | Genesis | Front Left | — |
