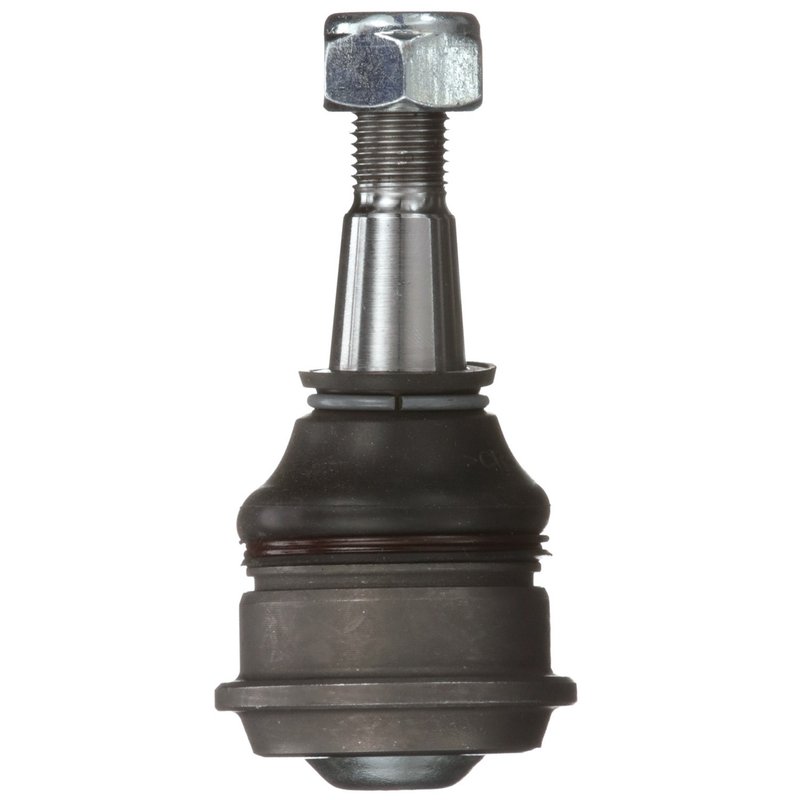

Delphi TC5732 Suspension Ball Joint - Front Right Lower
| Brand | Delphi TC5732 |
|---|---|
| Position | Front Right Lower |
| Material | Steel |
| Maximum Outside Diameter | 1.555 |
| Maximum Outside Diameter | 39.5 |
| Length | 85 |
| Color | Gray |
| Stud Thread Diameter | 12.0 |
| Castle Nut Included | No |
| Grease Fitting Included | No |
| Suspension Grade Type | Standard |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 39.5 |
| Cotter Pin Included | No |
| Cotter Pin Hole | No |
| Mounting Hardware Included | Yes |
| Washers Included | No |
| Height | 3.346 |
| Nuts Included | Yes |
| Adjustable | No |
| Greaseable | No |
| Stud Thread Length | 0.748 |
| Stud Type | Threaded |
| Mounting Type | Press in |
| Dust Boot Material | Choloroprene rubber (cr) |
| Mounting Bolts Included | No |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| Stud Taper Per Foot | 0.167 |
| Stud Tapered End 2 Diameter | 0.531 |
| Fits | Toyota · 3 vehicles |
OE-focused fit. Delphi applies dimensional and material analysis for consistent aftermarket matching.
Press-in design. Built for suspension service with a threaded, tapered stud.
Protected joint. Includes a dust boot for added coverage at the joint.
Cross-references Beck/Arnley 101-7695, Beck/Arnley 101-7697 and Beck/Arnley 101-7716 for the same application. See all 21.
OE-Style Front Right Lower Ball Joint
Delphi TC5732 is a standard replacement suspension ball joint built for the front right lower position. It uses a press-in mounting design with a threaded, tapered stud and includes a dust boot for added joint protection.
Fits 2003-2005 Toyota Echo, front right lower. Delphi applies OE-focused dimensional and material analysis to help match the aftermarket part to the original application. The steel construction and standard replacement grade make this a direct service part for worn suspension joints.
Key Features
- Steel construction with a gray finish
- Press-in mounting type for the front right lower suspension location
- Threaded, tapered stud with 12.0 mm thread diameter
- Dust boot included; grease fitting not included
- Mounting hardware and nuts included
- Standard replacement grade for routine suspension service
What It Helps Fix
- Excessive looseness in the suspension joint
- Clunking or knocking from the lower control arm area
- Uneven steering response caused by joint wear
- Play at the wheel end from a deteriorated ball joint
Installation Notes and Tips
Verify the front right lower position and confirm the 2003-2005 Toyota Echo fitment before installation. This part uses a press-in design, so proper suspension service tools are typically required for removal and installation. Check the tapered stud and thread specifications against the original part before final assembly.
Quality Assurance
Delphi subjects its OE-focused steering components to temperature extremes below -40 degrees C and above 120 degrees C, along with 720 hours of salt spray testing. Part number TC5732 is built using dimensional and material analysis to support OE-level fit consistency.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2005 | Toyota | Echo | Front Right Lower | From 05/2003 |
| 2004 | Toyota | Echo | Front Right Lower | From 05/2003 |
| 2003 | Toyota | Echo | Front Right Lower | From 05/2003 |
