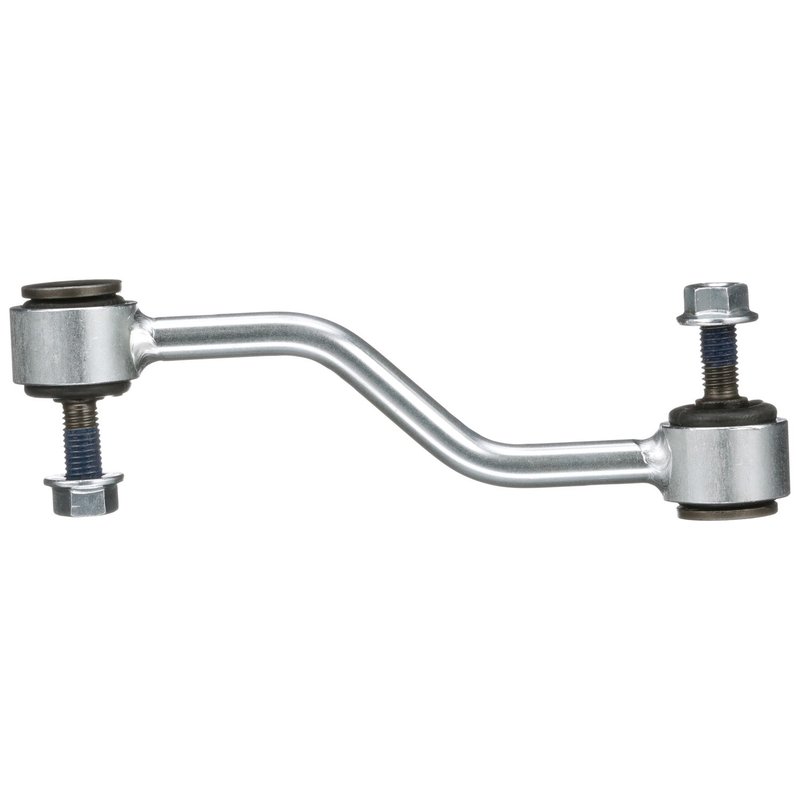

Delphi TC5742 Suspension Stabilizer Bar Link - Rear
| Brand | Delphi TC5742 |
|---|---|
| Position | Rear |
| Bolt Head Diameter | 12.0 |
| Bolt Thread Diameter | 12.0 |
| Bolt Thread Size | 12 |
| Bolts Included | No |
| Bushing Color | Black |
| Bushings Included | Yes |
| Dust Boot Included | No |
| End 1 Type | Bushing |
| End 2 Type | Bushing |
| Grade Type | Regular |
| Greaseable | No |
| Height | 3.937 |
| Height | 100.0 |
| Housing Material | Steel |
| Item Grade | Standard Replacement |
| Length | 7.815 |
| Length | 198.5 |
| Locking Nuts Included | No |
| Material | Steel |
| Washers Included | No |
| Weight | 0.34 |
| Width | 1.772 |
| Width | 45.0 |
| Fits | Ford · 42 vehicles |
Standard replacement. OE expertise and dimensional analysis help ensure compatibility with the aftermarket part.
Steel construction. Built with steel material and housing for dependable suspension performance.
Bushing ends. Both ends use bushings, with bushings included for a complete link assembly.
Cross-references Dorman - Premium SL85565XL, MOOG Chassis Products K80268 and F81Z 5K484-BA for the same application. See all 4.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Rear Suspension Stabilizer Bar Link for Ford Super Duty
Delphi TC5742 is a rear suspension stabilizer bar link built for Ford heavy-duty truck and SUV applications that need precise sway bar connection and OE-style fit. It uses steel construction with black bushings and a standard replacement design for dependable rear suspension service.
Compatible with rear applications on the Ford F-250 Super Duty, Ford F-350 Super Duty, and Ford Excursion, Delphi TC5742 is engineered using dimensional and material analysis to match OE requirements. The part number TC5742 is also referenced in aftermarket cross listings for the same application.
Key Features
- Steel stabilizer bar link construction
- Black bushings included
- Bushing-to-bushing end design
- Rear position application
- Standard replacement grade
- Non-greaseable design
- Delphi OE-focused aftermarket steering and suspension engineering
Detailed Product Overview
Delphi TC5742 is a rear suspension stabilizer bar link designed to connect the sway bar to the suspension on select Ford trucks and SUVs. It measures 198.5 mm (7.815 in) in length and uses 12 mm bolt thread sizing with steel housing and regular-grade construction. The link is built with bushings at both ends and no dust boot, washers, bolts, or locking nuts included.
This part is a direct-fit style replacement for rear suspension service on 2021-2022 Ford F-250 Super Duty, 2021-2022 Ford F-350 Super Duty, 2017-2020 Ford F-250 Super Duty with 7.91 in stud-to-stud specification, 2008-2020 Ford F-350 Super Duty with 7.91 in stud-to-stud specification, 1999-2007 Ford F-350 Super Duty with the listed wheelbase and axle requirements, 2004-2005 Ford Excursion with 7.91 in stud-to-stud specification, and 2003 Ford Excursion with 7.91 in stud-to-stud specification from 03/10/2003. This part cross-references MOOG Chassis Products K80268 for the same application.
What It Helps Address
- Rear sway bar looseness or reduced stability
- Clunking or rattling from worn stabilizer link bushings
- Uneven body roll control during cornering
- Suspension noise caused by worn OE-style link components
- Restoration of rear stabilizer bar connection on Ford Super Duty and Excursion models
Installation Notes and Tips
Verify rear fitment by year, model, and any listed configuration notes before installation. Confirm stud-to-stud length and bolt thread size match the original part, especially on Ford F-350 Super Duty and Excursion applications with specific axle, wheelbase, or production-date requirements. Inspect adjacent sway bar hardware and bushings for wear before replacing the link.
Quality Assurance
Delphi applies OE-focused dimensional and material analysis to support fit and function across aftermarket replacement applications. The part is tested for extreme temperature exposure and salt-spray resistance as part of Delphi’s validation process for steering and suspension components.
| Year | Make | Model | Body Type | Drive Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2022 | Ford | F-250 Super Duty | — | — | 6.2L | V8 | Rear | — |
| 2022 | Ford | F-350 Super Duty | — | — | 6.2L | V8 | Rear | — |
| 2021 | Ford | F-250 Super Duty | — | — | 6.2L | V8 | Rear | — |
| 2021 | Ford | F-350 Super Duty | — | — | 6.2L | V8 | Rear | — |
| 2020 | Ford | F-250 Super Duty | — | — | — | — | Rear | 7.91in Stud to Stud |
| 2020 | Ford | F-350 Super Duty | — | — | — | — | Rear | 7.91in Stud to Stud |
| 2019 | Ford | F-250 Super Duty | — | — | — | — | Rear | 7.91in Stud to Stud |
| 2019 | Ford | F-350 Super Duty | — | — | — | — | Rear | 7.91in Stud to Stud |
| 2018 | Ford | F-250 Super Duty | — | — | — | — | Rear | 7.91in Stud to Stud |
| 2018 | Ford | F-350 Super Duty | — | — | — | — | Rear | 7.91in Stud to Stud |
| 2017 | Ford | F-250 Super Duty | — | — | — | — | Rear | 7.91in Stud to Stud |
| 2017 | Ford | F-350 Super Duty | — | — | — | — | Rear | 7.91in Stud to Stud |
| 2016 | Ford | F-350 Super Duty | — | — | — | — | Rear | 7.91in Stud to Stud |
| 2015 | Ford | F-350 Super Duty | — | — | — | — | Rear | 7.91in Stud to Stud |
| 2014 | Ford | F-350 Super Duty | — | — | — | — | Rear | 7.91in Stud to Stud |
| 2013 | Ford | F-350 Super Duty | — | — | — | — | Rear | 7.91in Stud to Stud |
| 2012 | Ford | F-350 Super Duty | — | — | — | — | Rear | 7.91in Stud to Stud |
| 2011 | Ford | F-350 Super Duty | — | — | — | — | Rear | 7.91in Stud to Stud |
| 2010 | Ford | F-350 Super Duty | — | — | — | — | Rear | 7.91in Stud to Stud |
| 2009 | Ford | F-350 Super Duty | — | — | — | — | Rear | 7.91in Stud to Stud |
| 2008 | Ford | F-350 Super Duty | — | — | — | — | Rear | 7.91in Stud to Stud |
| 2007 | Ford | F-350 Super Duty | Cab & Chassis | RWD | — | — | Rear | With 141, 162, 165, 176, 189, or 200in Wheelbase; 7.91in Stud to Stud; with Forged Axle; with Single Rear Wheels (SRW) |
| 2007 | Ford | F-350 Super Duty | — | 4WD | — | — | Rear | With 141, 162, 165, 176, 189, or 200in Wheelbase; 7.91in Stud to Stud; with Forged Axle; with Single Rear Wheels (SRW) |
| 2006 | Ford | F-350 Super Duty | Cab & Chassis | RWD | — | — | Rear | With 141, 162, 165, 176, 189, or 200in Wheelbase; 7.91in Stud to Stud; with Forged Axle; with Single Rear Wheels (SRW) |
| 2006 | Ford | F-350 Super Duty | — | 4WD | — | — | Rear | With 141, 162, 165, 176, 189, or 200in Wheelbase; 7.91in Stud to Stud; with Forged Axle; with Single Rear Wheels (SRW) |
| 2005 | Ford | Excursion | — | — | — | — | Rear | 7.91in Stud to Stud |
| 2005 | Ford | F-350 Super Duty | Cab & Chassis | RWD | — | — | Rear | With 141, 162, 165, 176, 189, or 200in Wheelbase; 7.91in Stud to Stud; with Forged Axle; with Single Rear Wheels (SRW) |
| 2005 | Ford | F-350 Super Duty | — | 4WD | — | — | Rear | With 141, 162, 165, 176, 189, or 200in Wheelbase; 7.91in Stud to Stud; with Forged Axle; with Single Rear Wheels (SRW) |
| 2004 | Ford | Excursion | — | — | — | — | Rear | 7.91in Stud to Stud |
| 2004 | Ford | F-350 Super Duty | Cab & Chassis | RWD | — | — | Rear | With 141, 162, 165, 176, 189, or 200in Wheelbase; 7.91in Stud to Stud; with Forged Axle; with Single Rear Wheels (SRW) |
| 2004 | Ford | F-350 Super Duty | — | 4WD | — | — | Rear | With 141, 162, 165, 176, 189, or 200in Wheelbase; 7.91in Stud to Stud; with Forged Axle; with Single Rear Wheels (SRW) |
| 2003 | Ford | Excursion | — | — | — | — | Rear | 7.91in Stud to Stud; From 03/10/2003 |
| 2003 | Ford | F-350 Super Duty | Cab & Chassis | RWD | — | — | Rear | With 141, 162, 165, 176, 189, or 200in Wheelbase; 7.91in Stud to Stud; with Forged Axle; with Single Rear Wheels (SRW) |
| 2003 | Ford | F-350 Super Duty | — | 4WD | — | — | Rear | With 141, 162, 165, 176, 189, or 200in Wheelbase; 7.91in Stud to Stud; with Forged Axle; with Single Rear Wheels (SRW) |
| 2002 | Ford | F-350 Super Duty | Cab & Chassis | RWD | — | — | Rear | With 141, 162, 165, 176, 189, or 200in Wheelbase; 7.91in Stud to Stud; with Forged Axle; with Single Rear Wheels (SRW) |
| 2002 | Ford | F-350 Super Duty | — | 4WD | — | — | Rear | With 141, 162, 165, 176, 189, or 200in Wheelbase; 7.91in Stud to Stud; with Forged Axle; with Single Rear Wheels (SRW) |
| 2001 | Ford | F-350 Super Duty | Cab & Chassis | RWD | — | — | Rear | With 141, 162, 165, 176, 189, or 200in Wheelbase; 7.91in Stud to Stud; with Forged Axle; with Single Rear Wheels (SRW) |
| 2001 | Ford | F-350 Super Duty | — | 4WD | — | — | Rear | With 141, 162, 165, 176, 189, or 200in Wheelbase; 7.91in Stud to Stud; with Forged Axle; with Single Rear Wheels (SRW) |
| 2000 | Ford | F-350 Super Duty | Cab & Chassis | RWD | — | — | Rear | With 141, 162, 165, 176, 189, or 200in Wheelbase; 7.91in Stud to Stud; with Forged Axle; with Single Rear Wheels (SRW) |
| 2000 | Ford | F-350 Super Duty | — | 4WD | — | — | Rear | With 141, 162, 165, 176, 189, or 200in Wheelbase; 7.91in Stud to Stud; with Forged Axle; with Single Rear Wheels (SRW) |
| 1999 | Ford | F-350 Super Duty | Cab & Chassis | RWD | — | — | Rear | With 141, 162, 165, 176, 189, or 200in Wheelbase; 7.91in Stud to Stud; with Forged Axle; with Single Rear Wheels (SRW) |
| 1999 | Ford | F-350 Super Duty | — | 4WD | — | — | Rear | With 141, 162, 165, 176, 189, or 200in Wheelbase; 7.91in Stud to Stud; with Forged Axle; with Single Rear Wheels (SRW) |
