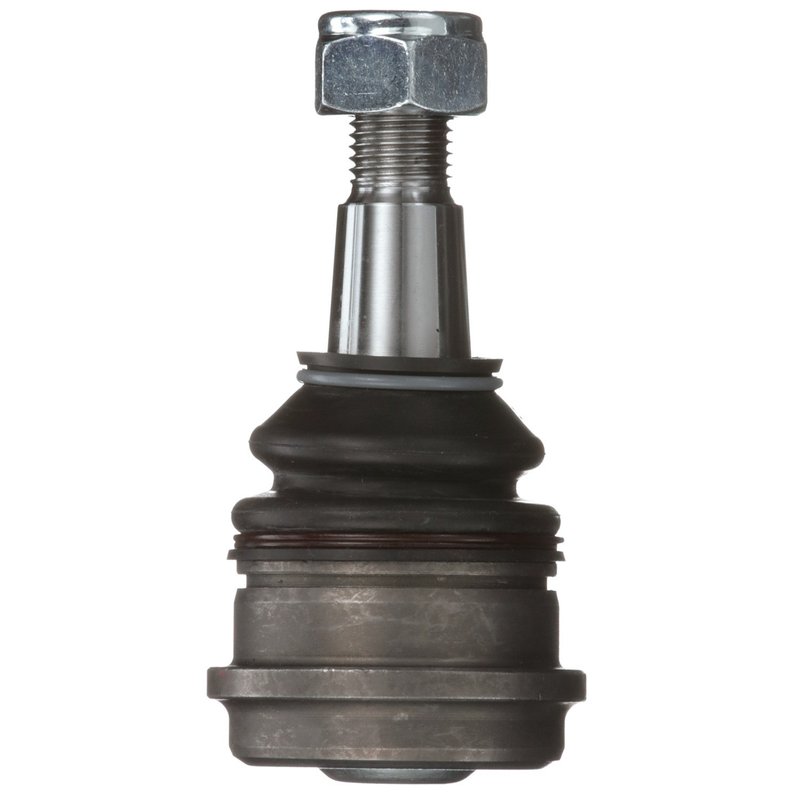

Delphi TC5759 Suspension Ball Joint - Front Lower
| Brand | Delphi TC5759 |
|---|---|
| Position | Front Lower |
| Adjustable | No |
| Ball Joint Assembly | Yes |
| Bushings Included | No |
| Castle Nut Included | No |
| Color | Gray |
| Cotter Pin Hole | No |
| Cotter Pin Included | No |
| Dust Boot Included | Yes |
| Dust Boot Material | Choloroprene Rubber (CR) |
| Grease Fitting Included | No |
| Greaseable | No |
| Height | 3.839 |
| Item Grade | Standard Replacement |
| Material | Steel |
| Maximum Outside Diameter | 1.969 |
| Maximum Outside Diameter | 50.0 |
| Mount Plate Included | No |
| Mounting Bolts Included | No |
| Mounting Hardware Included | Yes |
| Mounting Type | Press In |
| Nuts Included | Yes |
| Stud Taper Per Foot | 0.125 |
| Stud Tapered End 1 Diameter | 0.787 |
| Stud Tapered End 1 Diameter | 20.0 |
| Stud Tapered End 2 Diameter | 0.654 |
| Stud Tapered End 2 Diameter | 16.6 |
| Stud Thread Diameter | 14.0 |
| Stud Thread Length | 0.906 |
| Stud Thread Pitch | 1.5 |
| Stud Type | Threaded |
| Suspension Grade Type | Standard |
| Tapered Stud | Yes |
| Washers Included | No |
| Width | 50.0 |
| Fits | Mitsubishi · 16 vehicles |
Standard replacement. OE expertise and dimensional analysis help ensure compatibility with the aftermarket part.
Press-in design. Includes mounting hardware for a straightforward suspension ball joint install.
Steel construction. With a dust boot and chloroprene rubber protection for added durability.
Cross-references Beck/Arnley 102-6323, Beck/Arnley 102-6324 and Dorman - OE Solutions 520-563 for the same application. See all 15.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Delphi TC5759 Front Lower Ball Joint
Delphi TC5759 is a standard replacement suspension ball joint for front lower applications on select Mitsubishi models. Built with a steel body, press-in mounting, and a tapered threaded stud, it is engineered for OE-style fit and consistent steering and suspension articulation.
Fits 2004-2012 Mitsubishi Galant, front lower. Fits 2006-2010 Mitsubishi Eclipse, front lower. Fits 2011 Mitsubishi Eclipse, front lower, to 08/03/2011.
Key Features
- Part number: TC5759
- Front lower suspension ball joint assembly
- Steel construction with gray finish
- Press-in mounting type
- Tapered stud with 14.0 mm thread diameter and 1.5 pitch
- Dust boot included; grease fitting not included
- Mounting hardware included
- Standard replacement grade
Detailed Description
Delphi applies OE engineering knowledge to its aftermarket steering and suspension line, and TC5759 reflects that approach with dimensional and material analysis for proper part matching. The ball joint is designed for front lower use on Mitsubishi Galant and Mitsubishi Eclipse models listed in the fitment data, including the 2011 Eclipse through 08/03/2011. If you are searching for a front lower ball joint for a 2004-2012 Mitsubishi Galant or a 2006-2010 Mitsubishi Eclipse, Delphi TC5759 is the direct replacement reference to review.
This part cross-references MOOG Chassis Products RK621004 for the same application.
Common Repair Symptoms
- Front-end clunking or popping over bumps
- Loose or wandering steering feel
- Uneven tire wear from worn suspension joints
- Excessive play in the lower control arm connection
- Inspection failure due to ball joint wear
Installation Notes
Press-in installation requires proper suspension service tools and correct alignment procedures after replacement. Verify the tapered stud, thread size, and front lower position before installation. Inspect the surrounding control arm, knuckle, and related bushings for wear so the new ball joint is not installed into a damaged assembly.
Quality Assurance
Delphi tests steering and suspension components for extreme temperature exposure and salt-spray resistance, and uses dimensional and material analysis to support OE-level part matching. That focus helps TC5759 deliver consistent fitment for Mitsubishi Galant and Mitsubishi Eclipse front lower service.
| Year | Make | Model | Submodel | Position | Notes |
|---|---|---|---|---|---|
| 2012 | Mitsubishi | Galant | — | Front Lower | — |
| 2011 | Mitsubishi | Eclipse | — | Front Lower | To 08/03/2011 |
| 2011 | Mitsubishi | Galant | — | Front Lower | — |
| 2010 | Mitsubishi | Eclipse | — | Front Lower | — |
| 2010 | Mitsubishi | Galant | — | Front Lower | — |
| 2009 | Mitsubishi | Eclipse | — | Front Lower | — |
| 2009 | Mitsubishi | Galant | Sport Edition | Front Lower | — |
| 2009 | Mitsubishi | Galant | ES | Front Lower | — |
| 2008 | Mitsubishi | Eclipse | — | Front Lower | — |
| 2008 | Mitsubishi | Galant | — | Front Lower | — |
| 2007 | Mitsubishi | Eclipse | — | Front Lower | — |
| 2007 | Mitsubishi | Galant | — | Front Lower | — |
| 2006 | Mitsubishi | Eclipse | — | Front Lower | — |
| 2006 | Mitsubishi | Galant | — | Front Lower | — |
| 2005 | Mitsubishi | Galant | — | Front Lower | — |
| 2004 | Mitsubishi | Galant | — | Front Lower | — |
