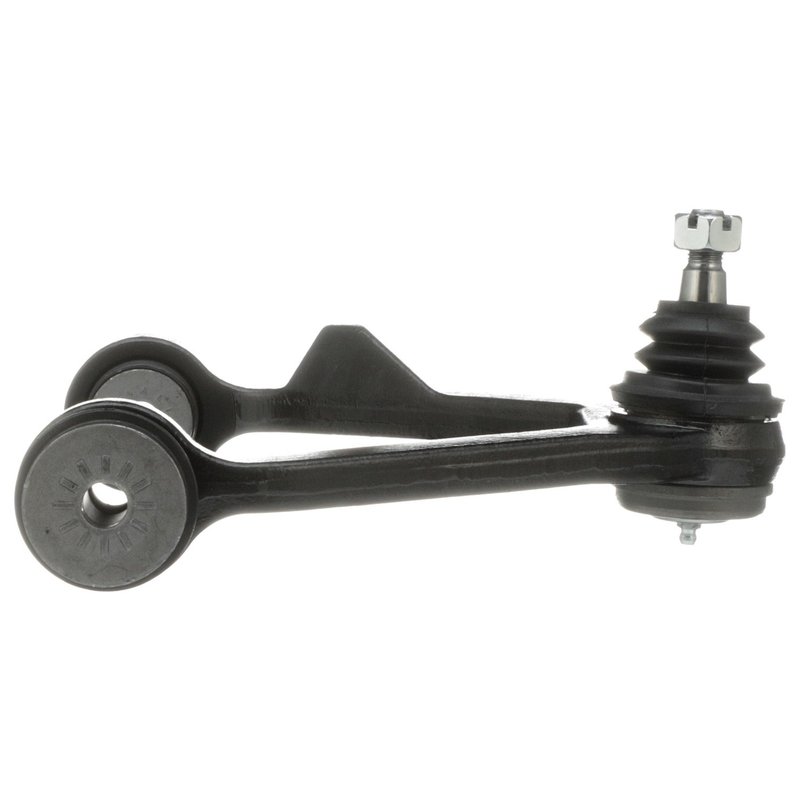

Delphi TC5813 Suspension Control Arm and Ball Joint Assembly - Front Right Upper

Delphi Suspension Control Arm and Ball Joint Assembly Overview

The Delphi TC5813 suspension control arm and ball joint assembly is designed for front right upper positioning on select Ford and Lincoln trucks and SUVs. Engineered with durable steel construction and pre-greased components, this assembly offers reliable suspension performance for vehicles like the Ford F-150, F-250, Expedition, and Lincoln Navigator.

• Pre-greased for immediate installation
• Includes rubber bushings and mounting hardware
• Steel control arm with casting and forged construction
• Bolt-in ball joint with threaded stud (0.551 inch diameter, 0.61 inch length)
• Compatible with front right upper suspension position
• Control arm dimensions: 13.78 inches length, 2.15 inches width
• Standard replacement grade for reliable durability

Durable Construction and Design Features

The TC5813 control arm assembly features a robust steel control arm constructed through casting and forging processes to ensure strength and longevity. The assembly comes pre-greased, eliminating the need for additional lubrication during installation. Rubber bushings are included to provide effective vibration dampening and reduce noise. The ball joint is a bolt-in type with a threaded stud, designed for secure mounting and compatibility with factory suspension components. This assembly is finished in black for corrosion resistance and a clean appearance.

Compatible Vehicles and Applications

This suspension control arm and ball joint assembly is compatible with the following vehicles:

• Ford F-150 and F-150 Heritage models
• Ford F-250 and F-250 HD trucks
• Ford Expedition SUV
• Lincoln Navigator SUV

Specifically designed for the front right upper suspension position, the Delphi TC5813 part number ensures proper fitment and function for these Ford and Lincoln models.

Common Suspension Issues Addressed

• Worn or damaged control arm bushings causing steering instability
• Loose or failing ball joints leading to uneven tire wear
• Suspension noise or vibrations from deteriorated components
• Alignment problems due to bent or weakened control arms
• Reduced handling performance and vehicle safety concerns

Installation Notes and Tips

Installation of the Delphi TC5813 control arm assembly requires basic suspension knowledge and tools. Since the part comes pre-greased and includes bushings and mounting hardware, it simplifies the replacement process. Ensure the vehicle is securely lifted and supported before removing the old control arm. Torque all bolts to manufacturer specifications and verify proper ball joint seating. Alignment should be checked and adjusted after installation to maintain optimal handling.

Quality Assurance and Warranty

Delphi suspension components meet standard replacement grade requirements, providing dependable performance for Ford and Lincoln vehicles. The TC5813 assembly undergoes rigorous quality control to ensure durability and fitment accuracy. While specific warranty details may vary, Delphi typically offers limited warranties covering defects in materials and workmanship for their suspension parts.
