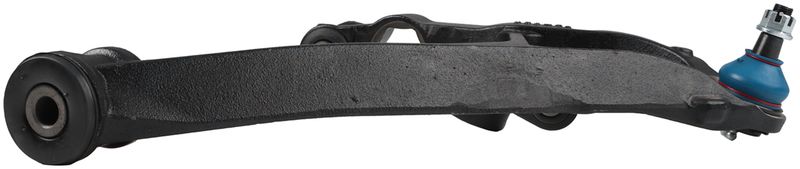

Delphi TC5823PX Suspension Control Arm and Ball Joint Assembly - Front Right Lower

OE Quality 60-Day Returns

Professional+

Delphi TC5823PX Suspension Control Arm and Ball Joint Assembly - Front Right Lower

Brand	Delphi TC5823PX
Position	Front Right Lower
Thread Direction	Clockwise (right)
Bushing Color	Black
Length	20.394
Length	518.00
Finish	Painted
Pre-Greased	Yes
Castle Nut Included	Yes
Grease Fitting Included	Yes
Bushings Included	Yes
Dust Boot Included	Yes
Ball Joint Mounting Type	Press in
Ball Joint Stud Type	Threaded
Ball Joint Included	Yes
Control Arm Construction	Casting/forged
Control Arm Material	Cast iron
Cotter Pin Included	Yes
Mounting Hardware Included	No
Grade Type	Improved design
Mounting Hole Quantity	3
Boot Material	Chloroprene rubber (cr)
Adjustable	No
Greaseable	Yes
Length Center Bore To Center Bore	16.988
Length Center Bore To Center Bore	431.50
Control Arm Maximum Width	17649
Control Arm Maximum Width	448.30
Control Arm Color	Black
Ball Joint Stud Length	1.004
Ball Joint Stud Length	25.50
Control Arm Maximum Length	20.394
Product line	Professional+
Fits	Cadillac, Chevrolet, and GMC · 95 vehicles

Serviceable design. Greaseable construction with a pre-greased joint helps extend part life.

Improved chassis control. Built to minimize axial deflection under load for steadier handling.

Durable materials. Cast iron construction and a painted finish handle harsh road conditions.

Cross-references Dorman - Premium CB90064PR, Mevotech Original Grade GS20343 and Mevotech Supreme CMS20343 for the same application. See all 4.

$223.26Free shipping

In stock · usually ships same day before 1pm CST

Step 1 — Confirm fitment

Free return shipping if it doesn't fit when you check fitment here first.

Confirm position

Select your vehicle to confirm fitment

Verify this part fits before purchasing — free returns if it doesn't

Step 2 — Quantity

Free shipping to the continental U.S.

Free returns within 60 days if it doesn't fit when fitment is verified.

Not what you need? See all Suspension Control Arm and Ball Joint Assembly options

Professional+ chassis control arm

Delphi Professional+ control arm and ball joint assembly TC5823PX is built for demanding suspension service on fleet and working vehicles. It is a front right lower application with a greaseable design, pre-greased components, and serviceable features that support long-term performance.

Key features

Cast iron control arm with casting/forged construction and painted finish
Press-in ball joint with threaded stud for secure suspension service
Grease fitting, dust boot, bushings, castle nut, and cotter pin included
Pre-greased and greaseable for service access
Improved design focused on reduced axial deflection under load

Detailed description

Delphi Professional+ TC5823PX is engineered for suspension applications that see frequent use and harsh road exposure. The Professional+ line is built to minimize axial deflection under load, which helps maintain alignment and handling while supporting longer service life. Its cast iron arm, rubber bushings, and chloroprene rubber boot are selected for durability in demanding conditions. This part cross-references MOOG Chassis Products (e.g., CK620380) for the same application.

Compatible with Chevrolet Silverado 1500, GMC Sierra 1500, Chevrolet Tahoe, GMC Yukon, and related full-size truck and SUV applications, TC5823PX is a fitment-based replacement for front right lower suspension service. It also fits Chevrolet Express 1500 and GMC Savana 1500 applications, along with Cadillac Escalade and Chevrolet Avalanche 1500 listings in the same position. The part number TC5823PX is useful when matching the correct control arm and ball joint assembly for these chassis configurations.

What it helps address

Excessive suspension play from worn control arm bushings or ball joint wear
Alignment drift caused by deflection under load
Handling looseness from degraded front suspension components
Noise or movement from aging greaseable joints and bushings
Downtime from replacing a worn control arm and ball joint assembly

Installation notes and tips

Verify the front right lower position and compare the existing arm geometry, mounting hole layout, and steering configuration before installation. The assembly uses a press-in ball joint and threaded stud, so proper suspension service procedures and alignment checks are recommended after replacement. Confirm fitment against the vehicle listing for Chevrolet Silverado 1500, GMC Sierra 1500, and other supported applications before ordering. Part number TC5823PX should be matched to the original component for correct application.

Quality assurance

Delphi Professional+ chassis parts are built with premium materials for harsh road and weather conditions and are designed for serviceable, regreasable operation to extend part life and reduce downtime.

This part fits 95 vehicles

Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.

Year	Make	Model	Drive Type	Liters	Cylinders	Position	Notes
2014	Chevrolet	Express 1500	AWD	—	—	Front Right Lower	Professional+
2014	GMC	Savana 1500	AWD	—	—	Front Right Lower	Professional+
2013	Chevrolet	Express 1500	AWD	—	—	Front Right Lower	Professional+
2013	GMC	Savana 1500	AWD	—	—	Front Right Lower	Professional+
2012	Chevrolet	Express 1500	AWD	—	—	Front Right Lower	Professional+
2012	GMC	Savana 1500	AWD	—	—	Front Right Lower	Professional+
2011	Chevrolet	Express 1500	AWD	—	—	Front Right Lower	Professional+
2011	GMC	Savana 1500	AWD	—	—	Front Right Lower	Professional+
2010	Chevrolet	Express 1500	AWD	—	—	Front Right Lower	Professional+
2010	GMC	Savana 1500	AWD	—	—	Front Right Lower	Professional+
2009	Chevrolet	Express 1500	AWD	—	—	Front Right Lower	Professional+
2009	GMC	Savana 1500	AWD	—	—	Front Right Lower	Professional+
2008	Chevrolet	Express 1500	AWD	—	—	Front Right Lower	Professional+
2008	GMC	Savana 1500	AWD	—	—	Front Right Lower	Professional+
2007	Chevrolet	Express 1500	AWD	—	—	Front Right Lower	Professional+
2007	Chevrolet	Silverado 1500 Classic	—	—	—	Front Right Lower	Professional+
2007	GMC	Savana 1500	AWD	—	—	Front Right Lower	Professional+
2007	GMC	Sierra 1500 Classic	—	—	—	Front Right Lower	Professional+
2006	Cadillac	Escalade	—	—	—	Front Right Lower	Professional+
2006	Cadillac	Escalade ESV	—	—	—	Front Right Lower	Professional+
2006	Cadillac	Escalade EXT	—	—	—	Front Right Lower	Professional+
2006	Chevrolet	Avalanche 1500	—	—	—	Front Right Lower	Professional+
2006	Chevrolet	Express 1500	AWD	—	—	Front Right Lower	Professional+
2006	Chevrolet	Silverado 1500	—	—	—	Front Right Lower	Professional+
2006	Chevrolet	Suburban 1500	—	—	—	Front Right Lower	Professional+
2006	Chevrolet	Tahoe	—	—	—	Front Right Lower	Professional+
2006	GMC	Savana 1500	AWD	—	—	Front Right Lower	Professional+
2006	GMC	Sierra 1500	—	—	—	Front Right Lower	Professional+
2006	GMC	Yukon	—	—	—	Front Right Lower	Professional+
2006	GMC	Yukon XL 1500	—	—	—	Front Right Lower	Professional+
2005	Cadillac	Escalade	—	—	—	Front Right Lower	Professional+
2005	Cadillac	Escalade ESV	—	—	—	Front Right Lower	Professional+
2005	Cadillac	Escalade EXT	—	—	—	Front Right Lower	Professional+
2005	Chevrolet	Avalanche 1500	—	—	—	Front Right Lower	Professional+
2005	Chevrolet	Express 1500	AWD	—	—	Front Right Lower	Professional+
2005	Chevrolet	Express 2500	AWD	—	—	Front Right Lower	Professional+
2005	Chevrolet	Silverado 1500	—	—	—	Front Right Lower	Professional+
2005	Chevrolet	Suburban 1500	—	—	—	Front Right Lower	Professional+
2005	Chevrolet	Tahoe	—	—	—	Front Right Lower	Professional+
2005	GMC	Savana 1500	AWD	—	—	Front Right Lower	Professional+
2005	GMC	Savana 2500	AWD	—	—	Front Right Lower	Professional+
2005	GMC	Sierra 1500	—	—	—	Front Right Lower	Professional+
2005	GMC	Yukon	—	—	—	Front Right Lower	Professional+
2005	GMC	Yukon XL 1500	—	—	—	Front Right Lower	Professional+
2004	Cadillac	Escalade	—	—	—	Front Right Lower	Professional+
2004	Cadillac	Escalade ESV	—	—	—	Front Right Lower	Professional+
2004	Cadillac	Escalade EXT	—	—	—	Front Right Lower	Professional+
2004	Chevrolet	Avalanche 1500	—	—	—	Front Right Lower	Professional+
2004	Chevrolet	Express 1500	AWD	—	—	Front Right Lower	Professional+
2004	Chevrolet	Express 2500	AWD	—	—	Front Right Lower	Professional+
2004	Chevrolet	Silverado 1500	—	—	—	Front Right Lower	Professional+
2004	Chevrolet	Suburban 1500	—	—	—	Front Right Lower	Professional+
2004	Chevrolet	Tahoe	—	—	—	Front Right Lower	Professional+
2004	GMC	Savana 1500	AWD	—	—	Front Right Lower	Professional+
2004	GMC	Savana 2500	AWD	—	—	Front Right Lower	Professional+
2004	GMC	Sierra 1500	—	—	—	Front Right Lower	Professional+
2004	GMC	Yukon	—	—	—	Front Right Lower	Professional+
2004	GMC	Yukon XL 1500	—	—	—	Front Right Lower	Professional+
2003	Cadillac	Escalade	—	—	—	Front Right Lower	Professional+
2003	Cadillac	Escalade ESV	—	—	—	Front Right Lower	Professional+
2003	Cadillac	Escalade EXT	—	—	—	Front Right Lower	Professional+
2003	Chevrolet	Avalanche 1500	—	—	—	Front Right Lower	Professional+
2003	Chevrolet	Express 1500	AWD	—	—	Front Right Lower	Professional+
2003	Chevrolet	Express 2500	AWD	—	—	Front Right Lower	Professional+
2003	Chevrolet	Silverado 1500	4WD	—	—	Front Right Lower	Professional+
2003	Chevrolet	Suburban 1500	—	—	—	Front Right Lower	Professional+
2003	Chevrolet	Tahoe	—	—	—	Front Right Lower	Professional+
2003	GMC	Savana 1500	AWD	—	—	Front Right Lower	Professional+
2003	GMC	Savana 2500	AWD	—	—	Front Right Lower	Professional+
2003	GMC	Sierra 1500	4WD	—	—	Front Right Lower	Professional+
2003	GMC	Yukon	—	—	—	Front Right Lower	Professional+
2003	GMC	Yukon XL 1500	—	—	—	Front Right Lower	Professional+
2002	Cadillac	Escalade	—	—	—	Front Right Lower	Professional+
2002	Cadillac	Escalade EXT	—	—	—	Front Right Lower	Professional+
2002	Chevrolet	Avalanche 1500	—	—	—	Front Right Lower	Professional+
2002	Chevrolet	Silverado 1500	4WD	—	—	Front Right Lower	Professional+
2002	Chevrolet	Suburban 1500	—	—	—	Front Right Lower	Professional+
2002	Chevrolet	Tahoe	—	—	—	Front Right Lower	Professional+
2002	GMC	Sierra 1500	4WD	—	—	Front Right Lower	Professional+
2002	GMC	Yukon	—	—	—	Front Right Lower	Professional+
2002	GMC	Yukon XL 1500	—	—	—	Front Right Lower	Professional+
2001	Chevrolet	Silverado 1500	4WD	—	—	Front Right Lower	Professional+
2001	Chevrolet	Suburban 1500	—	—	—	Front Right Lower	Professional+
2001	Chevrolet	Tahoe	—	—	—	Front Right Lower	Professional+
2001	GMC	Sierra 1500	4WD	—	—	Front Right Lower	Professional+
2001	GMC	Yukon	—	—	—	Front Right Lower	Professional+
2001	GMC	Yukon XL 1500	—	—	—	Front Right Lower	Professional+
2000	Chevrolet	Silverado 1500	4WD	—	—	Front Right Lower	Professional+
2000	Chevrolet	Suburban 1500	—	—	—	Front Right Lower	Professional+
2000	Chevrolet	Tahoe	—	5.3L	V8	Front Right Lower	Professional+
2000	GMC	Sierra 1500	4WD	—	—	Front Right Lower	Professional+
2000	GMC	Yukon	—	5.3L	V8	Front Right Lower	Professional+
2000	GMC	Yukon XL 1500	—	—	—	Front Right Lower	Professional+
1999	Chevrolet	Silverado 1500	4WD	—	—	Front Right Lower	Professional+
1999	GMC	Sierra 1500	4WD	—	—	Front Right Lower	Professional+
No rows match your filter.

Directly replaces or cross-references 4 part numbers

Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.

Dorman - Premium — CB90064PRMevotech Original Grade — GS20343Mevotech Supreme — CMS20343MOOG Chassis Products — CK620380
