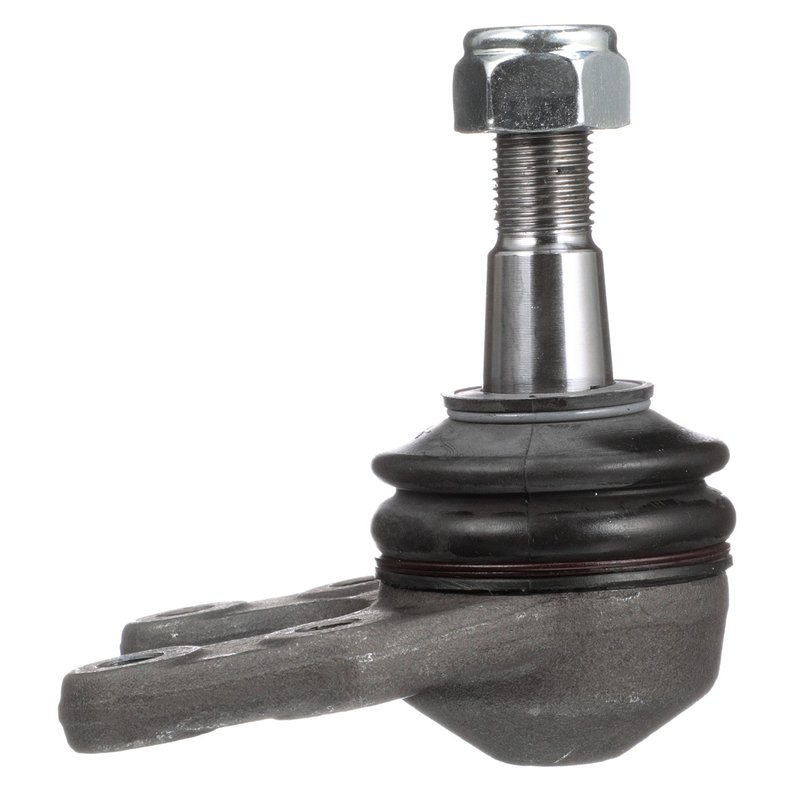

Delphi TC587 Suspension Ball Joint - Front Lower

Delphi Suspension Ball Joint for Mazda B-Series Trucks

The Delphi TC587 suspension ball joint is engineered to provide reliable steering and suspension performance for Mazda B2000, B2200, and B2600 models. Constructed from durable steel with a gray finish, this standard-grade ball joint assembly is designed to maintain vehicle stability and control.

• Made from high-strength steel for durability
• Compatible with Mazda B2000, B2200, and B2600 models
• Includes dust boot to protect internal components
• Mounting hardware and nuts included for installation
• Standard suspension grade type for everyday driving conditions

Technical Specifications and Features

The Delphi TC587 suspension ball joint features a maximum outside diameter of approximately 104 mm (4.094 inches) and a length of 104 mm (4.94 inches). The stud thread diameter measures 16 mm (0.63 inches) with a stud thread length of 27.5 mm (1.083 inches). The assembly includes four mounting holes and mounting bolts with a length of 25 mm (0.984 inches). This ball joint comes with a dust boot to prevent dirt and debris from compromising the joint's integrity. While it does not include a grease fitting or bushings, the assembly is designed for standard suspension applications and is not greaseable or adjustable.

Application and Problem Solving

This suspension ball joint is specifically compatible with Mazda B2000, B2200, and B2600 trucks, ensuring proper fit and function. It is used to connect the control arm to the steering knuckle, allowing for smooth pivoting and suspension movement. Common issues addressed by replacing this ball joint include:

• Excessive play or looseness in the steering
• Uneven tire wear due to suspension misalignment
• Clunking or knocking noises during driving
• Reduced vehicle stability and handling performance
• Worn or damaged dust boot leading to contamination

Installation Notes and Tips

Installation of the Delphi TC587 ball joint requires basic suspension knowledge and appropriate tools. The included mounting hardware and nuts simplify the replacement process. It is important to verify the correct orientation and torque specifications during installation. Since this ball joint does not include a cotter pin or castle nut, ensure that the mounting hardware is securely fastened. Inspect the dust boot for proper seating to maintain protection against contaminants.

Quality Assurance and Warranty

Delphi suspension components are manufactured to meet industry standards for durability and performance. The TC587 ball joint assembly undergoes quality control inspections to ensure fitment accuracy and material integrity. While specific warranty details are not provided, Delphi products typically come with manufacturer-backed warranties covering defects in materials and workmanship.
