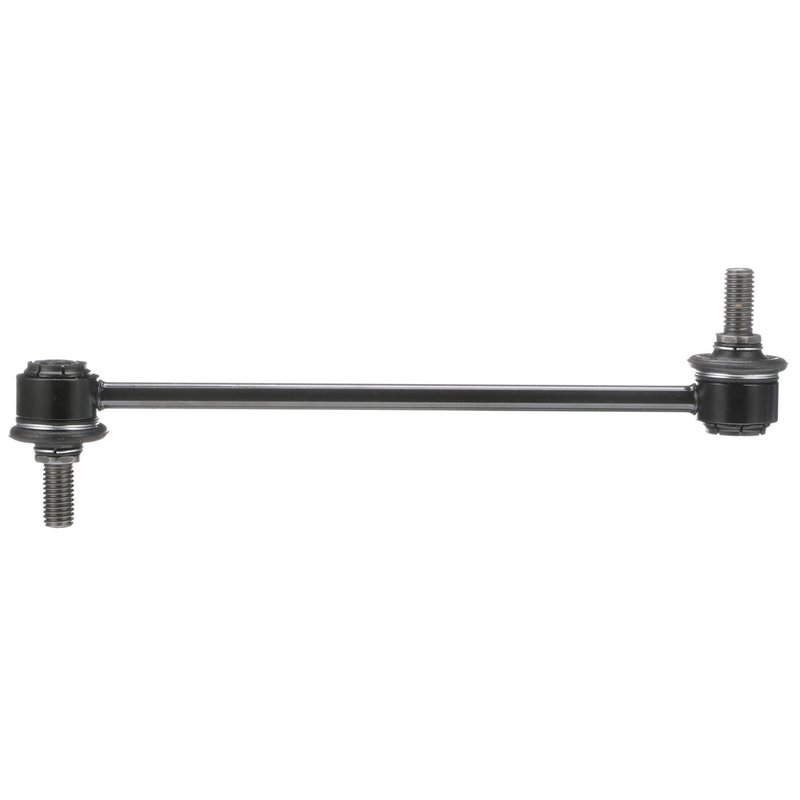

Delphi TC6025 Suspension Stabilizer Bar Link - Front

Delphi Suspension Stabilizer Bar Link Overview

The Delphi TC6025 Suspension Stabilizer Bar Link is engineered for reliable front suspension performance on Chevrolet and Pontiac vehicles. Designed specifically for models like the Chevrolet Cobalt, HHR, and Pontiac Pursuit, this steel stabilizer bar link ensures consistent handling and stability.

• Constructed from durable steel for strength and longevity
• Compatible with front suspension systems on Chevrolet Cobalt, HHR, and Pontiac Pursuit
• Includes male threaded ends (M12 bolt thread size) for secure attachment
• Equipped with a dust boot to protect internal components from debris
• Comes with bolts and locking nuts for complete installation
• Standard replacement grade for dependable performance
• Polyoxymethylen (POM) bearing material for smooth operation

Detailed Product Description

The Delphi TC6025 Suspension Stabilizer Bar Link is a critical component designed to connect the stabilizer bar to the suspension system, reducing body roll and improving vehicle handling. Made from high-quality steel, this link features male threaded ends with an M12 bolt thread size, ensuring a secure and precise fit. The included dust boot protects the joint from dirt and moisture, extending the part's service life. With a length of approximately 250 mm (9.843 inches) and a width of 36 mm (1.417 inches), this stabilizer bar link fits the front suspension of select Chevrolet and Pontiac models. The bearing is made from polyoxymethylen (POM), a durable plastic that provides smooth articulation without the need for greasing. Installation hardware, including bolts and locking nuts, is included to facilitate a straightforward replacement process.

Compatible Vehicles and Applications

This suspension stabilizer bar link is compatible with the following vehicles:

• Chevrolet Cobalt front suspension
• Chevrolet HHR front suspension
• Pontiac Pursuit front suspension

Common Issues Addressed by the Delphi TC6025

• Excessive body roll during cornering
• Clunking or knocking noises from the front suspension
• Uneven tire wear due to poor stabilizer bar connection
• Loose or worn stabilizer bar link affecting vehicle stability
• Reduced steering responsiveness and control

Installation Notes and Tips

When installing the Delphi TC6025 stabilizer bar link, ensure the vehicle is securely lifted and supported. Remove the old stabilizer bar link by loosening the M12 bolts at both male threaded ends. The included bolts and locking nuts should be used to secure the new link in place. The dust boot must be inspected for proper seating to prevent contamination. No greasing is required due to the POM bearing material. Torque specifications should be followed according to the vehicle manufacturer’s guidelines to ensure safe and effective installation.

Quality Assurance and Warranty

Delphi suspension components, including the TC6025 stabilizer bar link, are manufactured to meet standard replacement grade specifications. The steel construction and quality materials provide reliable performance consistent with OEM standards. This part includes a warranty that covers defects in materials and workmanship, offering peace of mind for professional and DIY installers alike.
