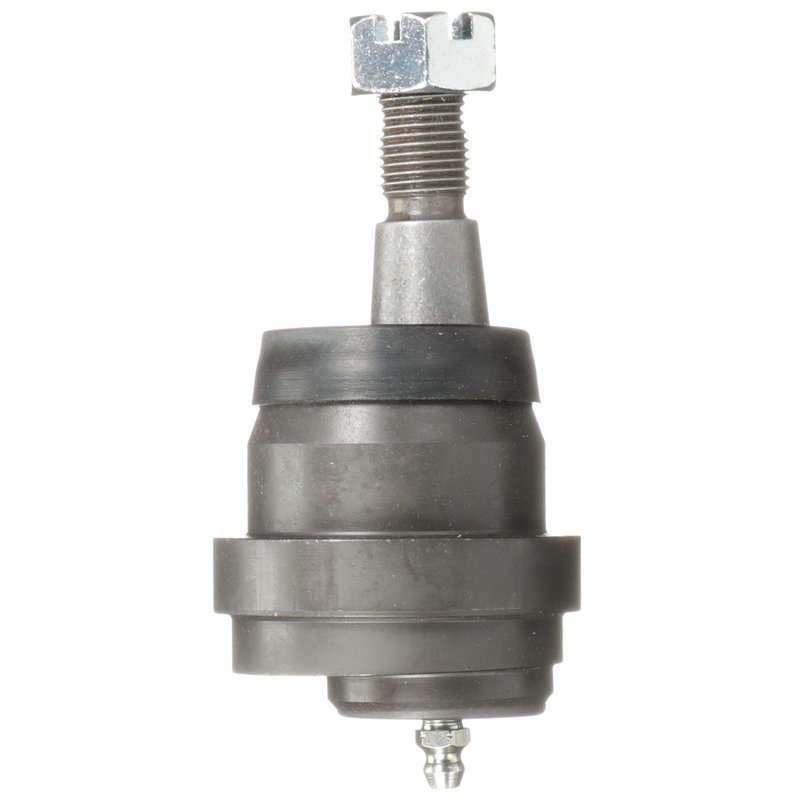

Delphi TC6134 Suspension Ball Joint - Front Upper

Delphi Suspension Ball Joint TC6134 Overview

The Delphi Suspension Ball Joint TC6134 is engineered for front upper suspension applications on select Dodge and Jeep models. Constructed from durable steel with a black finish, this standard replacement ball joint offers greaseability and includes essential hardware for secure installation.

Key Features of Delphi TC6134 Suspension Ball Joint

• Material: High-strength steel construction for durability
• Includes castle nut, cotter pin, and grease fitting for maintenance
• Dust boot made from chloroprene rubber to protect against contaminants
• Press-in mounting type with tapered stud design for secure fit
• Greaseable ball joint assembly to extend service life
• Compatible with front upper suspension positions
• Stud thread diameter: 14.25 mm with 17.7 mm thread length
• Maximum outside diameter and width: 56.1 mm; height: 96.6 mm

Detailed Description of Delphi TC6134 Ball Joint

The Delphi TC6134 suspension ball joint is designed as a standard replacement part for front upper suspension on Dodge and Jeep vehicles, including Cherokee, Comanche, Grand Cherokee, Grand Wagoneer, Ram 1500, Ram 2500, TJ, Wagoneer, Wrangler, and Wrangler JK models. Its steel construction ensures structural integrity under typical driving conditions. The ball pin stud features a tapered design with a taper per foot of 0.046, providing a precise fit and reliable performance. The included grease fitting allows for routine lubrication, helping to maintain smooth suspension articulation and reduce wear. A chloroprene rubber dust boot protects the joint from dirt and moisture, enhancing durability. The assembly comes with a castle nut and cotter pin to secure the stud safely in place, while the press-in mounting type facilitates straightforward installation.

Common Suspension Issues Addressed by TC6134 Ball Joint

• Eliminates excessive play or looseness in front upper suspension
• Reduces uneven tire wear caused by worn ball joints
• Prevents clunking noises during steering or over bumps
• Restores proper suspension alignment and handling
• Protects suspension components from dirt and moisture ingress

Installation Notes and Tips

• Compatible with front upper suspension on specified Dodge and Jeep models only
• Press-in mounting requires appropriate tools for removal and installation
• Ensure grease fitting is accessible for periodic lubrication
• Use included castle nut and cotter pin to secure the ball joint stud
• Inspect dust boot for damage during installation to maintain protection

Quality Assurance and Warranty

Delphi suspension components meet standard replacement grade specifications to ensure reliable performance and fitment. The TC6134 ball joint is manufactured to OEM standards with quality materials and includes essential hardware for installation. While specific warranty details vary, Delphi products typically come with a limited warranty covering defects in material and workmanship under normal use.
