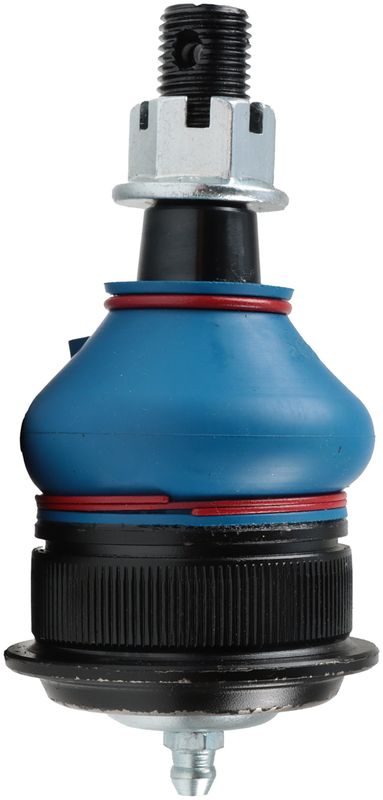

Delphi TC6205PX Suspension Ball Joint - Front Upper
| Brand | Delphi TC6205PX |
|---|---|
| Position | Front Upper |
| Material | Steel |
| Maximum Outside Diameter | 2.12 |
| Maximum Outside Diameter | 54.00 |
| Length | 2.12 |
| Length | 54.00 |
| Color | Black |
| Pre-Greased | Yes |
| Castle Nut Included | Yes |
| Grease Fitting Included | Yes |
| Suspension Grade Type | Standard replacement |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 2.12 |
| Width | 54.00 |
| Outside Diameter | 2.12 |
| Outside Diameter | 54.00 |
| Type | Premium |
| Cotter Pin Included | Yes |
| Cotter Pin Hole | Yes |
| Mounting Hardware Included | Yes |
| Washers Included | Yes |
| Height | 103.4 |
| Height | 4.07 |
| Grade Type | Improved design |
| Mounting Hole Quantity | 0 |
| Adjustable | No |
| Bearing Type | Plastic |
| Greaseable | Yes |
| Stud Thread Length | 1.16 |
| Stud Thread Length | 29.50 |
| Product line | Professional+ |
| Fits | Dodge and Ram · 19 vehicles |
OE-style service part. Standard replacement ball joint assembly with press-in mounting.
Greaseable design. Serviceable components can be regreased for longer part life.
Built for hard use. Steel construction and a dust boot suit demanding chassis service.
Cross-references Dorman - OE Solutions 521-033, Dorman - OE Solutions 521-034 and Dorman - OE Solutions BJ81106RD for the same application. See all 24.
Delphi Professional+ Front Upper Ball Joint
Delphi Professional+ ball joint TC6205PX is built for demanding suspension service on Ram and Dodge Ram applications. It is a press-in, greaseable replacement with a pre-greased design, dust boot, and serviceable components for long-term maintenance.
- Steel construction with an improved design for suspension service
- Pre-greased and greaseable for ongoing maintenance
- Press-in mounting with tapered stud and cotter pin hole
- Dust boot, castle nut, cotter pin, washers, and mounting hardware included
- Standard replacement ball joint assembly for front upper suspension service
Professional+ is Delphi’s chassis line for fleet and working vehicles. The line is engineered to minimize axial deflection under load, which helps maintain alignment and handling while reducing wear in the suspension. TC6205PX is built with premium materials for harsh road and weather exposure and includes serviceable components that can be regreased to support longer part life. This part cross-references MOOG Chassis Products (e.g., CK620174, CK620175) for the same application.
Common Repair Uses
- Restores looseness or play in the front upper suspension joint
- Addresses alignment drift caused by worn joint movement
- Helps reduce clunking or popping from the suspension
- Supports more consistent steering response under load
- Replaces a worn press-in ball joint on Ram and Dodge Ram trucks
Installation Notes
Compatible With 2006-2010 Dodge Ram 1500, front upper; 2006-2010 Dodge Ram 2500, front upper; 2007-2010 Dodge Ram 3500, front upper; 2011-2013 Ram 2500, front upper; and 2011-2012 Ram 3500, front upper. Verify press-in fitment, stud taper, and suspension configuration before installation. Use the included cotter pin hole and grease fitting during service, and follow the vehicle service procedure for alignment after replacement.
Quality Assurance
Delphi Professional+ chassis parts are developed for fleet and working-vehicle duty, with materials and serviceable construction intended to support extended service life and reduced downtime.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2013 | Ram | 2500 | RWD | Front Upper | Professional+ |
| 2012 | Ram | 2500 | RWD | Front Upper | Professional+ |
| 2012 | Ram | 3500 | — | Front Upper | Professional+ |
| 2011 | Ram | 2500 | RWD | Front Upper | Professional+ |
| 2011 | Ram | 3500 | — | Front Upper | Professional+ |
| 2010 | Dodge | Ram 1500 | RWD | Front Upper | Professional+ |
| 2010 | Dodge | Ram 2500 | RWD | Front Upper | Professional+ |
| 2010 | Dodge | Ram 3500 | — | Front Upper | Professional+ |
| 2009 | Dodge | Ram 1500 | RWD | Front Upper | Professional+ |
| 2009 | Dodge | Ram 2500 | RWD | Front Upper | Professional+ |
| 2009 | Dodge | Ram 3500 | — | Front Upper | Professional+ |
| 2008 | Dodge | Ram 1500 | RWD | Front Upper | Professional+ |
| 2008 | Dodge | Ram 2500 | RWD | Front Upper | Professional+ |
| 2008 | Dodge | Ram 3500 | — | Front Upper | Professional+ |
| 2007 | Dodge | Ram 1500 | RWD | Front Upper | Professional+ |
| 2007 | Dodge | Ram 2500 | RWD | Front Upper | Professional+ |
| 2007 | Dodge | Ram 3500 | — | Front Upper | Professional+ |
| 2006 | Dodge | Ram 1500 | RWD | Front Upper | Professional+ |
| 2006 | Dodge | Ram 2500 | RWD | Front Upper | Professional+ |
