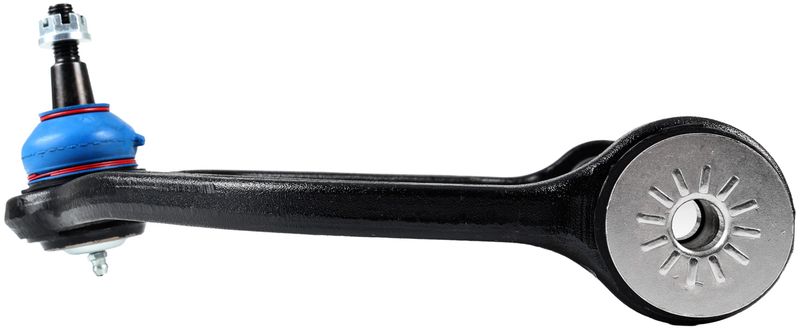

Delphi TC6235PX Suspension Control Arm and Ball Joint Assembly - Front Left Upper

OE Quality 60-Day Returns

Professional+

Delphi TC6235PX Suspension Control Arm and Ball Joint Assembly - Front Left Upper

Brand	Delphi TC6235PX
Position	Front Left Upper
Thread Direction	Clockwise (right)
Bushing Color	Black
Length	14.961
Length	380.00
Finish	Painted
Pre-Greased	Yes
Castle Nut Included	Yes
Grease Fitting Included	Yes
Bushings Included	Yes
Dust Boot Included	Yes
Ball Joint Mounting Type	Press in
Ball Joint Stud Type	Threaded
Ball Joint Included	Yes
Control Arm Construction	Casting/forged
Control Arm Material	Steel
Cotter Pin Included	Yes
Mounting Hardware Included	Yes
Grade Type	Improved design
Mounting Hole Quantity	2
Boot Material	Chloroprene rubber (cr)
Adjustable	No
Locking Nut Included	No
Greaseable	Yes
Length Center Bore To Center Bore	12.815
Length Center Bore To Center Bore	325.50
Control Arm Maximum Width	11476
Control Arm Maximum Width	291.50
Control Arm Color	Black
Ball Joint Stud Length	1.004
Ball Joint Stud Length	25.50
Product line	Professional+
Fits	Chevrolet and GMC · 124 vehicles

Serviceable design. Greaseable components and a pre-greased assembly support easier maintenance.

Steel construction. Casting/forged control arm design built for demanding chassis service.

Professional+ line. Created for fleet and working vehicles that see frequent road use.

Cross-references Dorman - OE Solutions CB90497RD, Mevotech Original Grade GS50188 and Mevotech Supreme CMS50188 for the same application. See all 8.

$98.38Free shipping

In stock · usually ships same day before 1pm CST

Step 1 — Confirm fitment

Free return shipping if it doesn't fit when you check fitment here first.

Confirm position

Select your vehicle to confirm fitment

Verify this part fits before purchasing — free returns if it doesn't

Step 2 — Quantity

Free shipping to the continental U.S.

Free returns within 60 days if it doesn't fit when fitment is verified.

Not what you need? See all Suspension Control Arm and Ball Joint Assembly options

Delphi Professional+ Control Arm Assembly

Delphi TC6235PX is a suspension control arm and ball joint assembly built for demanding service on work vehicles. It is a front left upper application with a steel casting/forged construction, greaseable service points, and a pre-greased design for easier maintenance.

Compatible with Chevrolet Express 2500, Chevrolet Express 3500, Chevrolet Express 4500, GMC Savana 2500, GMC Savana 3500, GMC Savana 4500, Chevrolet Silverado 2500, Chevrolet Suburban 2500, GMC Sierra 2500, and GMC Yukon XL 2500 applications listed below. The TC6235PX part number is also referenced by several OE-style aftermarket cross numbers for the same application.

Key Features

Steel control arm with casting/forged construction for chassis service use
Pre-greased and greaseable design with a serviceable grease fitting
Press-in ball joint with threaded stud, castle nut, cotter pin, and dust boot
Painted finish with rubber bushings and chloroprene rubber dust boot material
Improved design grade for front left upper suspension service

Detailed Description

Delphi Professional+ chassis parts are engineered for fleet and working vehicles that see frequent road use and harsh conditions. This assembly is built to minimize axial deflection under load, which helps maintain alignment and supports more consistent handling over time. The serviceable construction also allows regreasing, which can extend part life and reduce downtime in demanding Chevrolet Express and GMC Savana service applications. This part number, TC6235PX, is a direct-fit suspension service component for the listed vehicles and positions.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

What It Helps Address

Excess suspension play from a worn upper control arm assembly
Alignment drift caused by deflection under load
Handling looseness in high-mileage work vehicles
Noise or wear related to aging bushings and ball joint components
Downtime from non-serviceable suspension parts

Installation Notes and Tips

Verify the front left upper position and confirm fitment by year, make, and model before installation. The assembly uses a press-in ball joint and threaded stud design, so proper suspension service procedures and alignment checks are recommended after replacement. The TC6235PX includes mounting hardware, a grease fitting, and serviceable components as listed in the product data.

Quality Assurance

Delphi Professional+ chassis parts are developed for fleet-duty service and built with premium materials for harsh road and weather exposure. The serviceable, regreasable design supports long-term performance in demanding suspension applications.

This part fits 124 vehicles

Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.

Year	Make	Model	Drive Type	Liters	Cylinders	Position	Notes
2024	Chevrolet	Express 2500	—	—	—	Front Left Upper	Professional+
2024	Chevrolet	Express 3500	—	—	—	Front Left Upper	Professional+
2024	Chevrolet	Express 4500	—	—	—	Front Left Upper	Professional+
2024	GMC	Savana 2500	—	—	—	Front Left Upper	Professional+
2024	GMC	Savana 3500	—	—	—	Front Left Upper	Professional+
2023	Chevrolet	Express 2500	—	—	—	Front Left Upper	Professional+
2023	Chevrolet	Express 3500	—	—	—	Front Left Upper	Professional+
2023	Chevrolet	Express 4500	—	—	—	Front Left Upper	Professional+
2023	GMC	Savana 2500	—	—	—	Front Left Upper	Professional+
2023	GMC	Savana 3500	—	—	—	Front Left Upper	Professional+
2023	GMC	Savana 4500	—	—	—	Front Left Upper	Professional+
2022	Chevrolet	Express 2500	—	—	—	Front Left Upper	Professional+
2022	Chevrolet	Express 3500	—	—	—	Front Left Upper	Professional+
2022	Chevrolet	Express 4500	—	—	—	Front Left Upper	Professional+
2022	GMC	Savana 2500	—	—	—	Front Left Upper	Professional+
2022	GMC	Savana 3500	—	—	—	Front Left Upper	Professional+
2022	GMC	Savana 4500	—	—	—	Front Left Upper	Professional+
2021	Chevrolet	Express 2500	—	—	—	Front Left Upper	Professional+
2021	Chevrolet	Express 3500	—	—	—	Front Left Upper	Professional+
2021	Chevrolet	Express 4500	—	—	—	Front Left Upper	Professional+
2021	GMC	Savana 2500	—	—	—	Front Left Upper	Professional+
2021	GMC	Savana 3500	—	—	—	Front Left Upper	Professional+
2021	GMC	Savana 4500	—	—	—	Front Left Upper	Professional+
2020	Chevrolet	Express 2500	—	—	—	Front Left Upper	Professional+
2020	Chevrolet	Express 3500	—	—	—	Front Left Upper	Professional+
2020	Chevrolet	Express 4500	—	—	—	Front Left Upper	Professional+
2020	GMC	Savana 2500	—	—	—	Front Left Upper	Professional+
2020	GMC	Savana 3500	—	—	—	Front Left Upper	Professional+
2020	GMC	Savana 4500	—	—	—	Front Left Upper	Professional+
2019	Chevrolet	Express 2500	—	—	—	Front Left Upper	Professional+
2019	Chevrolet	Express 3500	—	—	—	Front Left Upper	Professional+
2019	Chevrolet	Express 4500	—	—	—	Front Left Upper	Professional+
2019	GMC	Savana 2500	—	—	—	Front Left Upper	Professional+
2019	GMC	Savana 3500	—	—	—	Front Left Upper	Professional+
2019	GMC	Savana 4500	—	—	—	Front Left Upper	Professional+
2018	Chevrolet	Express 2500	—	—	—	Front Left Upper	Professional+
2018	Chevrolet	Express 3500	—	—	—	Front Left Upper	Professional+
2018	Chevrolet	Express 4500	—	—	—	Front Left Upper	Professional+
2018	GMC	Savana 2500	—	—	—	Front Left Upper	Professional+
2018	GMC	Savana 3500	—	6.0L	V8	Front Left Upper	Professional+
2018	GMC	Savana 4500	—	—	—	Front Left Upper	Professional+
2017	Chevrolet	Express 2500	—	—	—	Front Left Upper	Professional+
2017	Chevrolet	Express 3500	—	—	—	Front Left Upper	Professional+
2017	Chevrolet	Express 4500	—	—	—	Front Left Upper	Professional+
2017	GMC	Savana 2500	—	—	—	Front Left Upper	Professional+
2017	GMC	Savana 4500	—	—	—	Front Left Upper	Professional+
2016	Chevrolet	Express 2500	—	—	—	Front Left Upper	Professional+
2016	Chevrolet	Express 3500	—	—	—	Front Left Upper	Professional+
2016	Chevrolet	Express 4500	—	—	—	Front Left Upper	Professional+
2016	GMC	Savana 2500	—	—	—	Front Left Upper	Professional+
2016	GMC	Savana 3500	—	—	—	Front Left Upper	Professional+
2016	GMC	Savana 4500	—	—	—	Front Left Upper	Professional+
2015	Chevrolet	Express 2500	—	—	—	Front Left Upper	Professional+
2015	Chevrolet	Express 3500	—	—	—	Front Left Upper	Professional+
2015	Chevrolet	Express 4500	—	—	—	Front Left Upper	Professional+
2015	GMC	Savana 2500	—	—	—	Front Left Upper	Professional+
2015	GMC	Savana 3500	—	—	—	Front Left Upper	Professional+
2015	GMC	Savana 4500	—	—	—	Front Left Upper	Professional+
2014	Chevrolet	Express 2500	—	—	—	Front Left Upper	Professional+
2014	Chevrolet	Express 3500	—	—	—	Front Left Upper	Professional+
2014	Chevrolet	Express 4500	—	—	—	Front Left Upper	Professional+
2014	GMC	Savana 2500	—	—	—	Front Left Upper	Professional+
2014	GMC	Savana 3500	—	—	—	Front Left Upper	Professional+
2014	GMC	Savana 4500	—	—	—	Front Left Upper	Professional+
2013	Chevrolet	Express 2500	—	—	—	Front Left Upper	Professional+
2013	Chevrolet	Express 3500	—	—	—	Front Left Upper	Professional+
2013	Chevrolet	Express 4500	—	—	—	Front Left Upper	Professional+
2013	GMC	Savana 2500	—	—	—	Front Left Upper	Professional+
2013	GMC	Savana 3500	—	—	—	Front Left Upper	Professional+
2013	GMC	Savana 4500	—	—	—	Front Left Upper	Professional+
2012	Chevrolet	Express 2500	—	—	—	Front Left Upper	Professional+
2012	Chevrolet	Express 3500	—	—	—	Front Left Upper	Professional+
2012	Chevrolet	Express 4500	—	—	—	Front Left Upper	Professional+
2012	GMC	Savana 2500	—	—	—	Front Left Upper	Professional+
2012	GMC	Savana 3500	—	—	—	Front Left Upper	Professional+
2012	GMC	Savana 4500	—	—	—	Front Left Upper	Professional+
2011	Chevrolet	Express 2500	—	—	—	Front Left Upper	Professional+
2011	Chevrolet	Express 3500	—	—	—	Front Left Upper	Professional+
2011	Chevrolet	Express 4500	—	—	—	Front Left Upper	Professional+
2011	GMC	Savana 2500	—	—	—	Front Left Upper	Professional+
2011	GMC	Savana 3500	—	—	—	Front Left Upper	Professional+
2011	GMC	Savana 4500	—	—	—	Front Left Upper	Professional+
2010	Chevrolet	Express 2500	—	—	—	Front Left Upper	Professional+
2010	Chevrolet	Express 3500	—	—	—	Front Left Upper	Professional+
2010	Chevrolet	Express 4500	—	—	—	Front Left Upper	Professional+
2010	GMC	Savana 2500	—	—	—	Front Left Upper	Professional+
2010	GMC	Savana 3500	—	—	—	Front Left Upper	Professional+
2010	GMC	Savana 4500	—	—	—	Front Left Upper	Professional+
2009	Chevrolet	Express 2500	—	—	—	Front Left Upper	Professional+
2009	Chevrolet	Express 3500	—	—	—	Front Left Upper	Professional+
2009	Chevrolet	Express 4500	—	—	—	Front Left Upper	Professional+
2009	GMC	Savana 2500	—	—	—	Front Left Upper	Professional+
2009	GMC	Savana 3500	—	—	—	Front Left Upper	Professional+
2009	GMC	Savana 4500	—	—	—	Front Left Upper	Professional+
2008	Chevrolet	Express 2500	—	—	—	Front Left Upper	Professional+
2008	Chevrolet	Express 3500	—	—	—	Front Left Upper	Professional+
2008	GMC	Savana 2500	—	—	—	Front Left Upper	Professional+
2008	GMC	Savana 3500	—	—	—	Front Left Upper	Professional+
2007	Chevrolet	Express 2500	—	—	—	Front Left Upper	Professional+
2007	Chevrolet	Express 3500	—	—	—	Front Left Upper	Professional+
2007	GMC	Savana 2500	—	—	—	Front Left Upper	Professional+
2007	GMC	Savana 3500	—	—	—	Front Left Upper	Professional+
2006	Chevrolet	Express 2500	—	—	—	Front Left Upper	Professional+
2006	Chevrolet	Express 3500	—	—	—	Front Left Upper	Professional+
2006	GMC	Savana 2500	—	—	—	Front Left Upper	Professional+
2006	GMC	Savana 3500	—	—	—	Front Left Upper	Professional+
2005	Chevrolet	Express 2500	RWD	—	—	Front Left Upper	Professional+
2005	Chevrolet	Express 3500	—	—	—	Front Left Upper	Professional+
2005	GMC	Savana 2500	RWD	—	—	Front Left Upper	Professional+
2005	GMC	Savana 3500	—	—	—	Front Left Upper	Professional+
2004	Chevrolet	Express 2500	RWD	—	—	Front Left Upper	Professional+
2004	Chevrolet	Express 3500	—	—	—	Front Left Upper	Professional+
2004	GMC	Savana 2500	RWD	—	—	Front Left Upper	Professional+
2004	GMC	Savana 3500	—	—	—	Front Left Upper	Professional+
2003	Chevrolet	Express 2500	RWD	—	—	Front Left Upper	Professional+
2003	Chevrolet	Express 3500	—	—	—	Front Left Upper	Professional+
2003	GMC	Savana 2500	RWD	—	—	Front Left Upper	Professional+
2003	GMC	Savana 3500	—	—	—	Front Left Upper	Professional+
2000	Chevrolet	Silverado 2500	RWD	—	—	Front Left Upper	Professional+
2000	Chevrolet	Suburban 2500	RWD	—	—	Front Left Upper	Professional+
2000	GMC	Sierra 2500	RWD	—	—	Front Left Upper	Professional+
2000	GMC	Yukon XL 2500	RWD	—	—	Front Left Upper	Professional+
1999	Chevrolet	Silverado 2500	RWD	—	—	Front Left Upper	Professional+
1999	GMC	Sierra 2500	RWD	—	—	Front Left Upper	Professional+
No rows match your filter.

Directly replaces or cross-references 8 part numbers

Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.

Dorman - OE Solutions — CB90497RDMevotech Original Grade — GS50188Mevotech Supreme — CMS50188Mevotech TTX — CTXMS50188MOOG Chassis Products — CK623014150498792342856925793550
