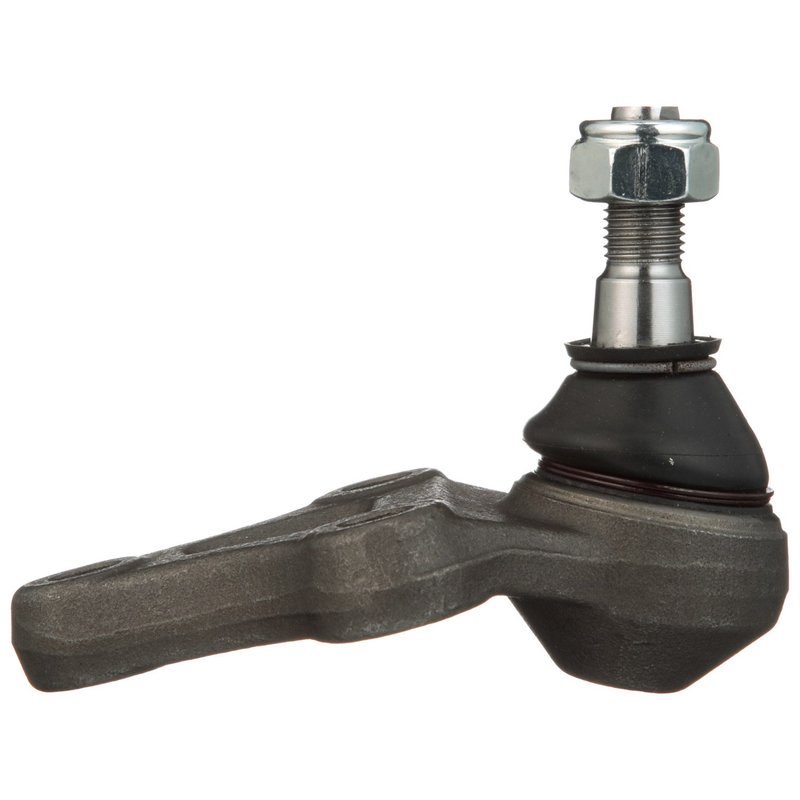

Delphi TC630 Suspension Ball Joint - Front Lower

Delphi Suspension Ball Joint TC630 Overview

The Delphi TC630 suspension ball joint is engineered for reliable performance in Chevrolet, Geo, GMC, and Suzuki vehicles. Designed specifically for models like the Sidekick, Tracker, Vitara, and X-90, this steel ball joint assembly offers a durable and precise fit to maintain suspension integrity.

• Constructed from high-quality steel for strength and durability
• Maximum outside diameter of 1.984 inches (50.4 mm)
• Length of 140 mm with a width of 90 mm and height of 96 mm (3.78 inches)
• Threaded stud with a diameter of 0.551 inches (14.0 mm) and thread length of 0.906 inches (23.0 mm)
• Includes mounting hardware and nuts for bolt-on installation
• Equipped with a dust boot to protect the ball joint assembly
• Standard suspension grade type for everyday driving conditions

Detailed Product Description

The Delphi TC630 suspension ball joint is a critical component designed to connect the control arm to the steering knuckle, allowing for smooth and controlled movement of the suspension system. Made from durable steel, this ball joint withstands the stresses of daily driving and road conditions. Its gray finish and integrated dust boot help protect internal components from dirt and debris, extending service life. The bolt-on mounting type with three mounting holes spaced 50 mm apart ensures a secure and precise fit. The threaded stud and included nuts facilitate straightforward installation without the need for additional cotter pins or grease fittings.

Compatible Vehicles and Applications

This suspension ball joint is compatible with the following makes and models:

• Chevrolet Sidekick
• Geo Tracker
• GMC Tracker
• Suzuki Sidekick
• Suzuki Vitara
• Suzuki X-90

Common Suspension Issues Addressed

• Excessive play or looseness in the suspension linkage
• Uneven tire wear caused by worn ball joints
• Clunking or knocking noises during steering or over bumps
• Steering instability or wandering
• Vibration or rough ride quality

Installation Notes and Tips

Installation of the Delphi TC630 ball joint requires basic suspension tools and mechanical knowledge. The included mounting hardware and nuts simplify the bolt-on process. Ensure the vehicle is securely lifted and supported before removal of the old ball joint. Verify the stud thread diameter and length match the vehicle specifications. Since this ball joint does not include a grease fitting, it is pre-lubricated and sealed for maintenance-free operation. Always torque mounting bolts to manufacturer specifications for safety and performance.

Quality Assurance and Warranty

Delphi suspension components are manufactured to meet or exceed OEM standards. The TC630 ball joint undergoes rigorous quality control to ensure durability and fitment accuracy. While specific warranty details may vary, Delphi typically offers coverage against defects in materials and workmanship. Consult product documentation or authorized sources for exact warranty terms.
