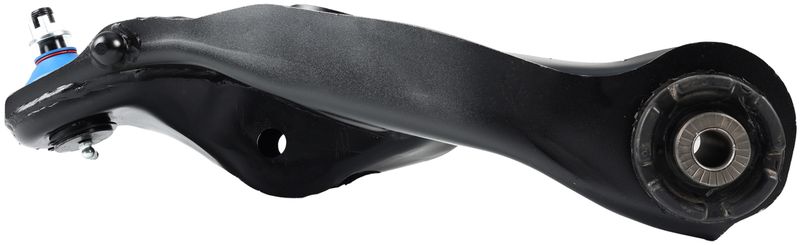

Delphi TC6357PX Suspension Control Arm and Ball Joint Assembly - Front Left Lower or Front Right Lower
| Brand | Delphi TC6357PX |
|---|---|
| Position | Front Right Lower and Front Left Lower |
| Thread Direction | Clockwise (right) |
| Bushing Color | Black |
| Length | 22.46 |
| Length | 570.50 |
| Finish | Painted |
| Pre-Greased | Yes |
| Castle Nut Included | Yes |
| Grease Fitting Included | Yes |
| Bushings Included | Yes |
| Dust Boot Included | Yes |
| Ball Joint Mounting Type | Press in |
| Ball Joint Stud Type | Threaded |
| Ball Joint Included | Yes |
| Control Arm Construction | Casting/forged |
| Control Arm Material | Steel |
| Cotter Pin Included | Yes |
| Mounting Hardware Included | Yes |
| Grade Type | Improved design |
| Mounting Hole Quantity | 2 |
| Boot Material | Chloroprene rubber (cr) |
| Adjustable | No |
| Greaseable | Yes |
| Length Center Bore To Center Bore | 18.228 |
| Length Center Bore To Center Bore | 463.00 |
| Control Arm Maximum Width | 16405 |
| Control Arm Maximum Width | 461.70 |
| Control Arm Color | Black |
| Ball Joint Stud Length | 0.984 |
| Ball Joint Stud Length | 25.00 |
| Control Arm Maximum Length | 22.460 |
| Product line | Professional+ |
| Fits | Ford and Lincoln · 19 vehicles |
Serviceable design. Greaseable construction supports routine maintenance and longer part life.
Heavy-duty materials. Steel casting/forged construction is built for demanding chassis service.
Professional+ line. Built for fleet and working vehicles that see frequent road exposure.
Cross-references Dorman - OE Solutions CB85274RD, Mevotech Original Grade GS40171 and Mevotech Supreme CMS40171 for the same application. See all 7.
Overview
Delphi Professional+ TC6357PX is a suspension control arm and ball joint assembly built for demanding service in working vehicles. It combines a steel casting/forged construction with a greaseable design to support alignment stability, handling response, and longer service life.
Fits 2009-2013 Ford Expedition, front left lower; 2009-2013 Ford F-150, front left lower; 2009-2013 Lincoln Navigator, front left lower; 2007-2008 Ford Expedition, front right lower; 2007-2008 Lincoln Navigator, front right lower.
Key Features
- Steel control arm with casting/forged construction for strength in chassis service.
- Pre-greased and greaseable design for serviceable maintenance.
- Press-in ball joint with threaded stud for secure assembly.
- Includes bushings, dust boot, castle nut, cotter pin, and mounting hardware.
- Painted black finish with chloroprene rubber boot material for added protection.
- Part number TC6357PX for accurate ordering and service matching.
Detailed Description
Delphi Professional+ TC6357PX is engineered for fleet and working-vehicle use where suspension parts see frequent load and road exposure. The design is focused on minimizing axial deflection under load, which helps maintain alignment and supports consistent handling. Its serviceable construction includes grease fittings and a pre-greased setup, while the steel arm, rubber bushings, and protected boot materials are selected for durability in harsh conditions. This part cross-references MOOG Chassis Products CK621266 for the same application.
For Ford Expedition, Ford F-150, and Lincoln Navigator applications, TC6357PX provides a direct-fit suspension service solution for the specified front lower position. The part number TC6357PX is also useful when matching replacement components during chassis repair or maintenance planning.
Common Issues This Part Can Address
- Excessive suspension play from a worn control arm and ball joint assembly.
- Alignment instability caused by deflection under load.
- Handling looseness or wandering from degraded bushings or joint wear.
- Noise from damaged suspension pivot components.
- Reduced service life in harsh road and weather conditions.
Installation Notes and Tips
Verify the vehicle position and lower control arm application before installation. Confirm the threaded stud, press-in ball joint style, and mounting hole dimensions match the original setup. Because this assembly is greaseable, follow the vehicle service procedure for lubrication after installation and during routine maintenance. Use the part number TC6357PX to confirm the correct replacement before beginning suspension work.
Quality Assurance
Delphi Professional+ chassis parts are built for fleet and working vehicles and are designed to support long-term service in demanding conditions. The Professional+ line emphasizes serviceable components and durable materials to help extend part life and reduce downtime.
| Year | Make | Model | Submodel | Position | Notes |
|---|---|---|---|---|---|
| 2013 | Ford | Expedition | — | Front Left Lower | Professional+ |
| 2013 | Ford | F-150 | XLT | Front Left Lower | Professional+ |
| 2013 | Lincoln | Navigator | — | Front Left Lower | Professional+ |
| 2012 | Ford | Expedition | — | Front Left Lower | Professional+ |
| 2012 | Ford | F-150 | XLT | Front Left Lower | Professional+ |
| 2012 | Lincoln | Navigator | — | Front Left Lower | Professional+ |
| 2011 | Ford | Expedition | — | Front Left Lower | Professional+ |
| 2011 | Ford | F-150 | XLT | Front Left Lower | Professional+ |
| 2011 | Lincoln | Navigator | — | Front Left Lower | Professional+ |
| 2010 | Ford | Expedition | — | Front Left Lower | Professional+ |
| 2010 | Ford | F-150 | XLT | Front Left Lower | Professional+ |
| 2010 | Lincoln | Navigator | — | Front Left Lower | Professional+ |
| 2009 | Ford | Expedition | — | Front Left Lower | Professional+ |
| 2009 | Ford | F-150 | XLT | Front Left Lower | Professional+ |
| 2009 | Lincoln | Navigator | — | Front Left Lower | Professional+ |
| 2008 | Ford | Expedition | — | Front Right Lower | Professional+ |
| 2008 | Lincoln | Navigator | — | Front Right Lower | Professional+ |
| 2007 | Ford | Expedition | — | Front Right Lower | Professional+ |
| 2007 | Lincoln | Navigator | — | Front Right Lower | Professional+ |
