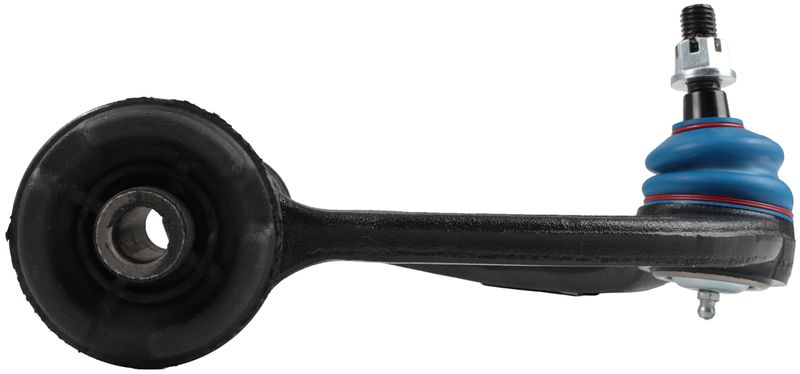

Delphi TC6369PX Suspension Control Arm and Ball Joint Assembly - Front Left Upper

OE Quality 60-Day Returns

Professional+

Delphi TC6369PX Suspension Control Arm and Ball Joint Assembly - Front Left Upper

Brand	Delphi TC6369PX
Position	Front Left Upper
Thread Direction	Clockwise (right)
Bushing Color	Black
Length	13.720
Length	348.50
Finish	Painted
Pre-Greased	Yes
Castle Nut Included	Yes
Grease Fitting Included	Yes
Bushings Included	Yes
Dust Boot Included	Yes
Ball Joint Mounting Type	Machined
Ball Joint Stud Type	Threaded
Ball Joint Included	Yes
Control Arm Construction	Casting/forged
Control Arm Material	Steel
Cotter Pin Included	Yes
Mounting Hardware Included	Yes
Grade Type	Improved design
Mounting Hole Quantity	2
Boot Material	Chloroprene rubber (cr)
Adjustable	No
Locking Nut Included	No
Greaseable	Yes
Length Center Bore To Center Bore	11.279
Length Center Bore To Center Bore	286.50
Control Arm Maximum Width	10161
Control Arm Maximum Width	258.10
Control Arm Color	Black
Ball Joint Stud Length	1.338
Ball Joint Stud Length	34.00
Product line	Professional+
Fits	Ford and Lincoln · 36 vehicles

OE-style serviceability. Greaseable design with a pre-greased assembly for easier maintenance.

Heavy-duty construction. Steel arm with casting/forged construction for demanding chassis service.

Service parts included. Ball joint, bushings, dust boot, and mounting hardware are part of the assembly.

Cross-references Dorman - OE Solutions CB85187RD, Mevotech Original Grade GK80306 and Mevotech Supreme CMK80306 for the same application. See all 9.

$133.30Free shipping

In stock · usually ships same day before 1pm CST

Step 1 — Confirm fitment

Free return shipping if it doesn't fit when you check fitment here first.

Confirm position

Select your vehicle to confirm fitment

Verify this part fits before purchasing — free returns if it doesn't

Step 2 — Quantity

Free shipping to the continental U.S.

Free returns within 60 days if it doesn't fit when fitment is verified.

Not what you need? See all Suspension Control Arm and Ball Joint Assembly options

Overview

Delphi Professional+ TC6369PX is a suspension control arm and ball joint assembly built for demanding service in working vehicles. It is engineered to reduce axial deflection under load, helping maintain alignment and steering response in heavy-use applications.

Compatible With Ford F-150, Ford Expedition, Lincoln Navigator, and Lincoln Mark LT applications that use the front left upper position. The Delphi TC6369PX combines a steel control arm, greaseable service points, and a pre-greased design for long-term suspension service.

Key Features

Steel control arm with casting/forged construction for strength in chassis service.
Pre-greased and greaseable design with a serviceable grease fitting.
Includes ball joint, bushings, dust boot, castle nut, cotter pin, and mounting hardware.
Painted finish and chloroprene rubber boot material for added protection.
Improved design grade for fleet and working vehicle use.

Detailed Description

Delphi Professional+ TC6369PX is built for front suspension service where load control and alignment stability matter. The assembly uses a machined ball joint mounting type, threaded ball joint stud, rubber bushings, and a steel arm construction to support consistent operation under road stress. Delphi’s Professional+ line is aimed at chassis parts that see frequent use and benefit from serviceable components that can be regreased over time. This part cross-references MOOG Chassis Products CK80306 and Mevotech Original Grade GK80306 for the same application.

For Ford Expedition, Ford F-150, Lincoln Navigator, and Lincoln Mark LT fitments, TC6369PX provides a direct replacement format for the front left upper suspension position. The part number TC6369PX is useful when matching the correct assembly for these applications, and Delphi TC6369PX is a practical choice for suspension repair where durability and serviceability are priorities.

Common Repair Uses

Restores worn suspension control arm and ball joint function.
Addresses looseness or play in the front suspension.
Helps correct alignment issues caused by worn chassis components.
Reduces noise from deteriorated bushings or ball joint wear.
Supports stable steering response under load.

Installation Notes

Install in the front left upper suspension position only for the listed applications. Verify thread direction, mounting hole dimensions, and steering configuration before installation. Because this assembly is greaseable, service the fitting according to the vehicle maintenance schedule after installation. Confirm all fasteners are torqued to manufacturer specifications during suspension service.

Quality Assurance

Delphi Professional+ chassis parts are engineered for fleet and working vehicle demands, with serviceable components that can be regreased to extend part life. The TC6369PX is built with premium materials for harsh road and weather exposure and is intended to support long service intervals in demanding suspension use.

This part fits 36 vehicles

Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.

Year	Make	Model	Submodel	Position	Notes
2017	Ford	Expedition	—	Front Left Upper	Professional+
2017	Lincoln	Navigator	—	Front Left Upper	Professional+
2016	Ford	Expedition	—	Front Left Upper	Professional+
2016	Lincoln	Navigator	—	Front Left Upper	Professional+
2015	Ford	Expedition	—	Front Left Upper	Professional+
2015	Lincoln	Navigator	—	Front Left Upper	Professional+
2014	Ford	Expedition	—	Front Left Upper	Professional+
2014	Ford	F-150	XLT	Front Left Upper	Professional+
2014	Lincoln	Navigator	—	Front Left Upper	Professional+
2013	Ford	Expedition	—	Front Left Upper	Professional+
2013	Ford	F-150	XLT	Front Left Upper	Professional+
2013	Lincoln	Navigator	—	Front Left Upper	Professional+
2012	Ford	Expedition	—	Front Left Upper	Professional+
2012	Ford	F-150	XLT	Front Left Upper	Professional+
2012	Lincoln	Navigator	—	Front Left Upper	Professional+
2011	Ford	Expedition	—	Front Left Upper	Professional+
2011	Ford	F-150	XLT	Front Left Upper	Professional+
2011	Lincoln	Navigator	—	Front Left Upper	Professional+
2010	Ford	Expedition	—	Front Left Upper	Professional+
2010	Ford	F-150	XLT	Front Left Upper	Professional+
2010	Lincoln	Navigator	—	Front Left Upper	Professional+
2009	Ford	Expedition	—	Front Left Upper	Professional+
2009	Ford	F-150	—	Front Left Upper	Professional+
2009	Lincoln	Navigator	—	Front Left Upper	Professional+
2008	Ford	Expedition	—	Front Left Upper	Professional+
2008	Ford	F-150	—	Front Left Upper	Professional+
2008	Lincoln	Mark LT	—	Front Left Upper	Professional+
2008	Lincoln	Navigator	—	Front Left Upper	Professional+
2007	Ford	Expedition	—	Front Left Upper	Professional+
2007	Ford	F-150	—	Front Left Upper	Professional+
2007	Lincoln	Mark LT	—	Front Left Upper	Professional+
2007	Lincoln	Navigator	—	Front Left Upper	Professional+
2006	Ford	F-150	—	Front Left Upper	Professional+
2006	Lincoln	Mark LT	—	Front Left Upper	Professional+
2005	Ford	F-150	—	Front Left Upper	Professional+
2004	Ford	F-150	—	Front Left Upper	Professional+
No rows match your filter.

Directly replaces or cross-references 9 part numbers

Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.

Dorman - OE Solutions — CB85187RDMevotech Original Grade — GK80306Mevotech Supreme — CMK80306Mevotech TTX — CTXK80306MOOG Chassis Products — CK803064L3Z 3085-AA4L3Z 3085-AB6L1Z 3085-BR6L3Z 3085-AL
