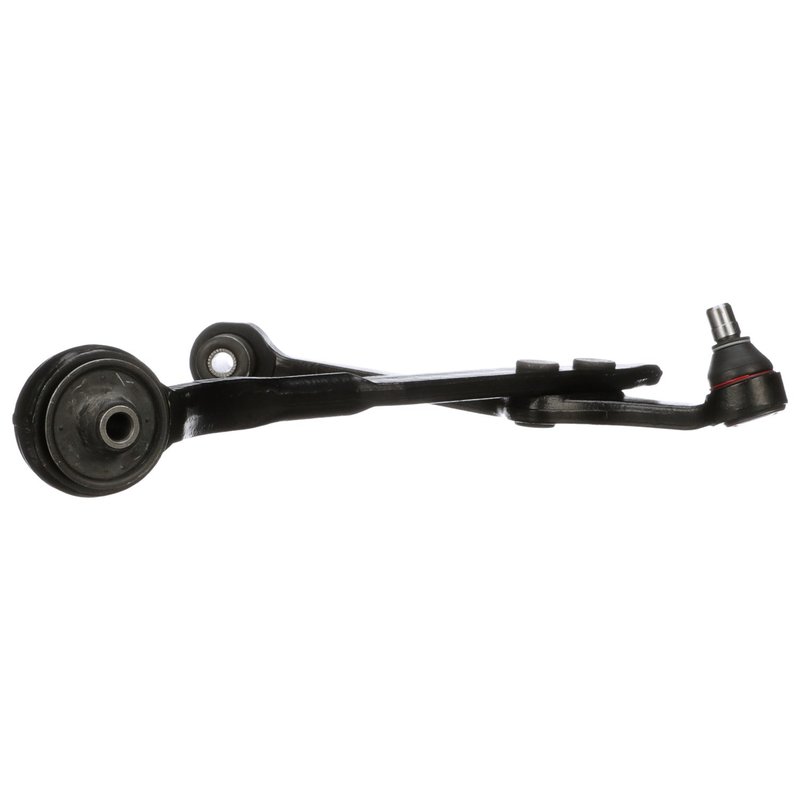

Delphi TC6385 Suspension Control Arm and Ball Joint Assembly - Front Right

Delphi Suspension Control Arm and Ball Joint Assembly Overview

The Delphi TC6385 suspension control arm and ball joint assembly is designed specifically for the front right position of Ford Windstar vehicles. This pre-greased, steel control arm assembly offers a reliable replacement option for maintaining proper suspension performance and vehicle handling.

• Pre-greased for immediate installation
• Includes rubber bushings and mounting hardware
• Machined ball joint with grooved stud for secure fit
• Constructed from durable cast and forged steel
• Compatible with Ford Windstar front right suspension

Detailed Product Features and Specifications

The Delphi TC6385 control arm assembly features a suspension grade light type design, suitable for standard replacement needs. The control arm is constructed from cast and forged steel, finished in black for corrosion resistance. It includes rubber bushings to absorb vibrations and reduce noise. The ball joint is machined with a grooved stud type, measuring 0.7 inches (17.8 mm) in thread diameter and 2.2 inches (56 mm) in stud length, ensuring a precise and secure connection. This assembly comes with all necessary mounting hardware, although it does not include a grease fitting and is not greaseable beyond the factory pre-greased condition. The control arm measures approximately 18.11 inches (460 mm) in length and 16.34 inches (415 mm) in maximum width.

Compatible Vehicles and Application

This suspension control arm and ball joint assembly is compatible with Ford Windstar models requiring a front right suspension component. The part number TC6385 ensures correct fitment and function for this specific application, making it a suitable replacement for worn or damaged control arms in these vehicles.

Common Suspension Issues Addressed

• Excessive play or looseness in the front right suspension
• Uneven tire wear caused by worn control arm bushings
• Clunking or knocking noises during driving or turning
• Poor vehicle handling or alignment problems
• Vibration or instability at higher speeds

Installation Notes and Tips

Installation of the Delphi TC6385 control arm assembly should be performed by a qualified technician familiar with Ford Windstar suspension systems. Since the part is pre-greased and includes bushings and mounting hardware, it can be installed without additional lubrication or parts. Ensure proper torque specifications are followed for mounting bolts and ball joint connections. Alignment should be checked and adjusted after installation to maintain optimal vehicle handling.

Quality Assurance and Warranty Information

Delphi provides this suspension control arm and ball joint assembly as a standard replacement grade part, manufactured to meet OEM specifications. The pre-greased ball joint and durable steel construction contribute to reliable performance. Warranty coverage details should be confirmed at the point of purchase, as they may vary by distributor or region.
