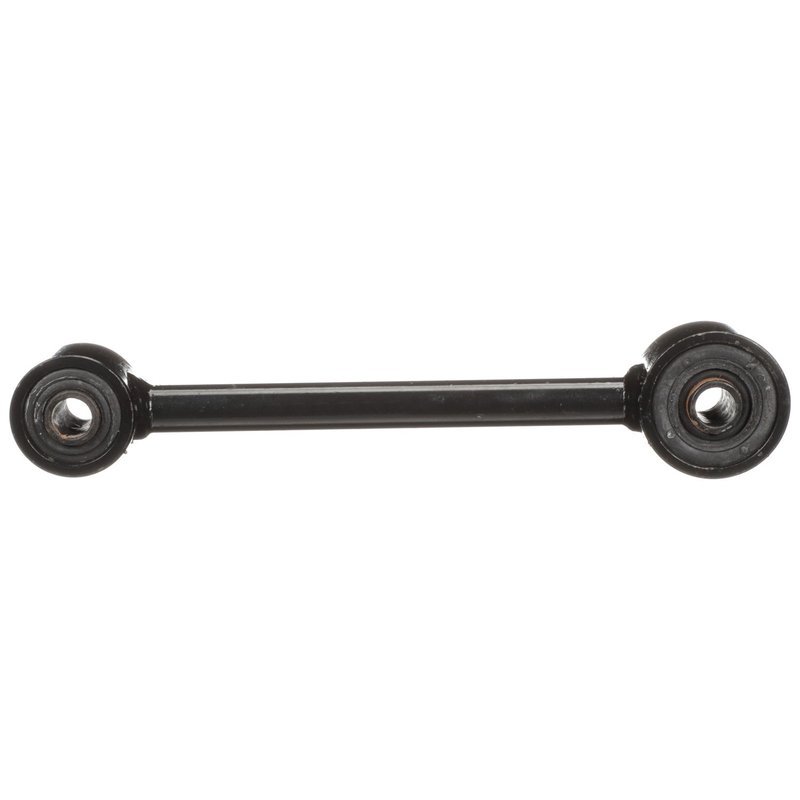

Delphi TC6412 Suspension Stabilizer Bar Link - Rear

Delphi TC6412 Rear Stabilizer Bar Link

The Delphi TC6412 rear suspension stabilizer bar link is a standard replacement part for select Chevrolet S10 and GMC Sonoma applications. Built with steel construction and natural rubber bushings, it is designed to match OE-style dimensions and material requirements for dependable rear suspension service.

Key Features

• Steel construction for durable suspension support
• Natural rubber bushings with black finish
• Rear position stabilizer bar link
• OE-focused dimensional and material analysis for fit consistency
• Tested for extreme temperature exposure and salt spray resistance
• Standard replacement part for everyday repair work

Detailed Description

Delphi TC6412 is a rear suspension stabilizer bar link engineered for 1996-2003 Chevrolet S10 and 1996-2003 GMC Sonoma models. It uses bushing ends at both sides, with a 206.5 length, 40.0 width, 36.0 height, and a 169.5 distance between mounting holes. The steel housing and natural rubber bushings are selected to support consistent suspension connection and OE-style dimensional match. Delphi applies OE expertise from its safety technology background to its aftermarket steering and suspension portfolio, with testing that includes temperatures below -40 degrees C, above 120 degrees C, and 720 hours of salt spray. This part cross-references MOOG Chassis Products K700036 for the same application.

Common Repair Symptoms

• Rear suspension clunking or rattling over bumps
• Excessive sway or loose rear-end feel
• Worn or cracked stabilizer bar link bushings
• Uneven suspension response during cornering
• Noise from the rear suspension on Chevrolet S10 or GMC Sonoma trucks

Installation Notes and Tips

Verify rear-position fitment before installation and compare the original link length, bushing diameter, and mounting-hole spacing to the removed part. The Delphi TC6412 uses bushing ends on both sides and does not include grease fittings, so inspect the surrounding sway bar and mounting points for wear before assembly. For 1996-2003 Chevrolet S10 rear suspension service or 1996-2003 GMC Sonoma rear suspension repair, confirm all mounting surfaces are clean and free of corrosion to help ensure proper seating.

Quality Assurance

Delphi subjects this stabilizer bar link to dimensional and material analysis to support OE-style compatibility, along with environmental testing for heat, cold, and corrosion exposure. The TC6412 is a standard replacement suspension component built to meet the demands of daily driving and routine chassis repair.
