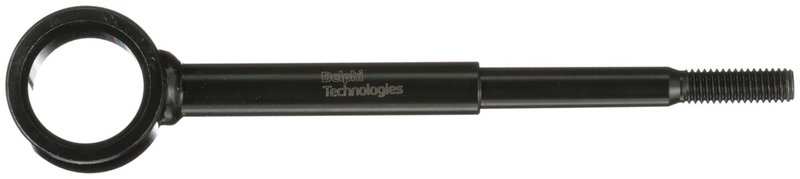

Delphi TC6441 Suspension Stabilizer Bar Link - Front

Delphi Suspension Stabilizer Bar Link Overview

The Delphi TC6441 Suspension Stabilizer Bar Link is designed to maintain vehicle stability and handling by connecting the sway bar to the suspension system. Engineered with durable rubber bushings and precise dimensions, this front-position stabilizer link supports consistent performance for various vehicle makes and models.

• Bushing Outside Diameter: 1.24 inches
• Black rubber bushing material for durability and noise reduction
• Sleeve Inside Diameter: 0.51 inches with a 1.26-inch sleeve length
• Standard grade replacement part suitable for front suspension applications
• Bolt Thread Diameter: 0.375 inches for secure mounting
• Non-greaseable design for maintenance-free operation

Technical Details and Specifications

The Delphi TC6441 features rubber bushings with an outside diameter of 1.24 inches, providing effective vibration dampening and noise isolation. The black bushings are paired with a metal sleeve measuring 0.51 inches inside diameter and 1.26 inches in length, ensuring a precise fit and reliable connection to the stabilizer bar. This standard grade replacement part is designed for front suspension use and includes a 0.375-inch bolt thread diameter for compatibility with factory mounting points. The non-greaseable design reduces maintenance requirements while maintaining consistent performance under typical driving conditions.

Common Applications and Problem Resolution

• Reduces sway and body roll during cornering
• Eliminates clunking noises caused by worn stabilizer links
• Restores proper suspension alignment and handling
• Prevents premature tire wear due to suspension instability
• Improves overall vehicle control and safety on uneven roads

Installation Notes and Tips

When installing the Delphi TC6441 stabilizer bar link, ensure the vehicle is securely lifted and supported. Remove the old stabilizer link carefully, noting the orientation of the bushings and sleeves. The 0.375-inch bolt thread diameter requires appropriate tools for tightening to factory torque specifications. Since this part is non-greaseable, no additional lubrication is necessary. Verify proper alignment after installation to maintain suspension geometry and handling characteristics.

Quality Assurance and Warranty

Delphi suspension components are manufactured to meet or exceed OEM standards, providing reliable performance and durability. The TC6441 stabilizer bar link is a standard replacement part backed by Delphi's quality control processes. While specific warranty details are not provided, Delphi products typically come with limited warranties covering defects in materials and workmanship.
