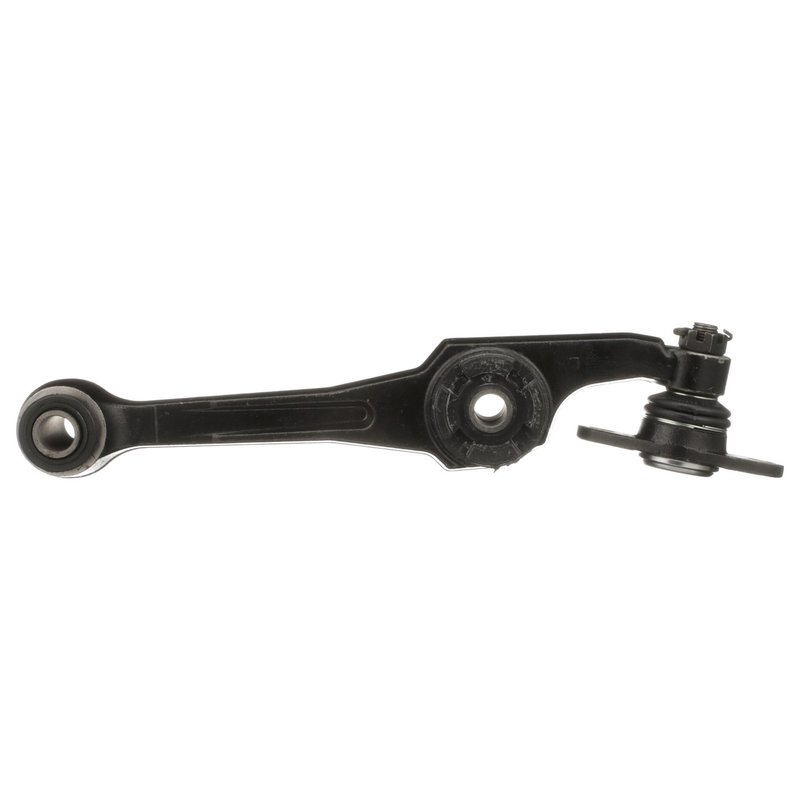

Delphi TC6564 Suspension Control Arm and Ball Joint Assembly - Front Left Lower

Delphi Suspension Control Arm and Ball Joint Assembly Overview

The Delphi TC6564 suspension control arm and ball joint assembly is designed for front left lower suspension on select Lexus and Toyota models. Engineered with durable steel construction and pre-greased components, this assembly provides reliable performance for vehicles like the Toyota Camry and Lexus ES250.

• Pre-greased for immediate installation
• Includes rubber bushings and mounting hardware
• Steel control arm with casting and forged construction
• Bolt-in ball joint with threaded stud
• Standard replacement grade for light suspension use
• Compatible with front left lower position on Lexus and Toyota vehicles

Durable Construction and Design Features

The TC6564 control arm assembly features a robust steel construction combining casting and forging methods to ensure strength and longevity. The black finish adds corrosion resistance, while the included rubber bushings help absorb road vibrations and reduce noise. The ball joint is mounted using a bolt-in design with a threaded stud, allowing secure attachment and straightforward replacement. This assembly is pre-greased, eliminating the need for additional lubrication during installation, although it does not include a grease fitting or allow for greasing after installation.

Compatible Vehicles and Fitment Details

This suspension control arm and ball joint assembly is specifically compatible with the front left lower suspension of Lexus and Toyota vehicles, including the Toyota Camry and Lexus ES250. The part number TC6564 ensures precise fitment and performance for these models, making it a suitable replacement part for maintaining suspension integrity and vehicle handling.

Common Suspension Issues Addressed

• Worn or damaged control arm bushings causing steering instability
• Loose or failing ball joints leading to uneven tire wear
• Corroded or weakened control arm structure affecting suspension alignment
• Excessive vibration or noise from front suspension components
• Difficulty maintaining proper wheel alignment and handling

Installation Notes and Tips

Installation of the Delphi TC6564 control arm assembly requires removal of the existing front left lower control arm. Since the assembly comes pre-greased and includes mounting hardware, additional lubrication or parts are generally not necessary. Ensure all mounting bolts are torqued to manufacturer specifications. The bolt-in ball joint with threaded stud simplifies replacement, but alignment should be checked and adjusted after installation to maintain proper suspension geometry.

Quality Assurance and Warranty

Delphi suspension components meet standard replacement grade requirements, providing reliable performance for light suspension applications. The TC6564 assembly is manufactured to OEM specifications, ensuring compatibility and durability. While specific warranty details may vary, Delphi products typically come with a limited warranty covering defects in materials and workmanship.
