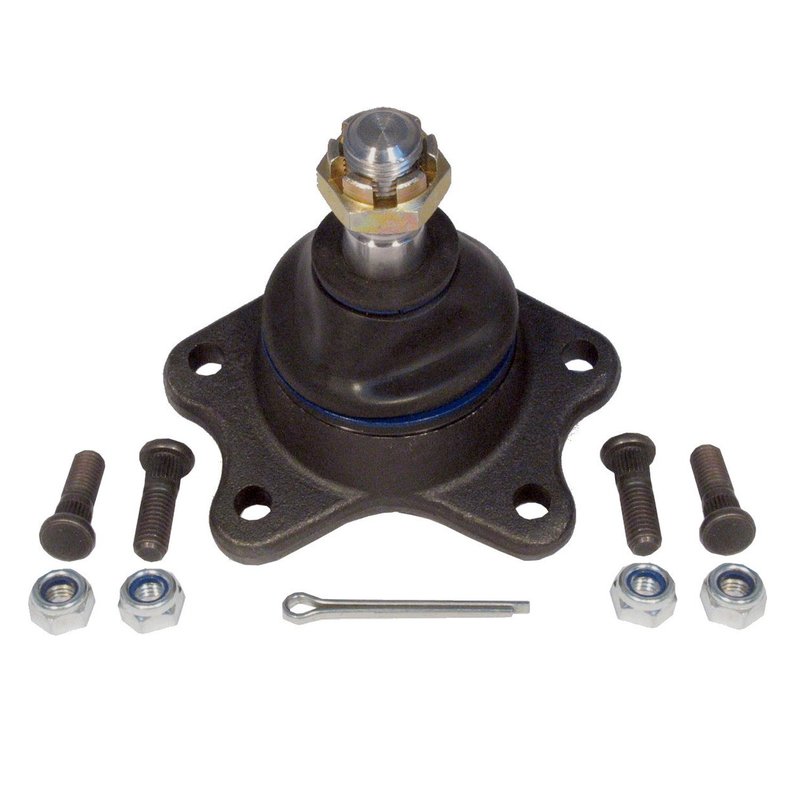

Delphi TC660 Suspension Ball Joint - Front Upper

Delphi TC660 Suspension Ball Joint Overview

The Delphi TC660 suspension ball joint is engineered for reliable performance in Toyota 4Runner, Pickup, and T100 models. Constructed from durable steel with a gray finish, this standard suspension grade ball joint assembly offers essential components for secure and stable vehicle suspension.

• Material: Steel construction for strength and durability
• Maximum outside diameter: 103.0 mm (4.055 inches)
• Length: 351 mm
• Includes castle nut, cotter pin, mounting hardware, and dust boot
• Stud thread diameter: 16.0 mm (0.63 inches) with 26.0 mm (1.024 inches) thread length
• Mounting hole quantity: 4 for secure installation
• Standard suspension grade type, non-adjustable and non-greaseable
• Wrench size: 24.0 mm (0.945 inches)

Detailed Product Description

The Delphi TC660 suspension ball joint is designed to meet the suspension needs of Toyota 4Runner, Pickup, and T100 vehicles. This ball joint assembly features a robust steel construction with a protective gray coating to resist corrosion and wear. The unit includes a dust boot to protect the joint from dirt and debris, extending its service life. The package comes complete with essential mounting hardware, including a castle nut, cotter pin, and nuts, ensuring a secure and proper fit. With four mounting holes and precise dimensions, the TC660 provides a reliable connection between the suspension components and the steering knuckle.

Common Applications and Problem Solving

• Replaces worn or damaged suspension ball joints in Toyota 4Runner, Pickup, and T100 models
• Addresses suspension noise caused by loose or failing ball joints
• Improves steering stability and control by restoring proper joint function
• Eliminates excessive play or vibration in the front suspension
• Prevents premature tire wear related to suspension issues

Installation Notes and Tips

Installation of the Delphi TC660 suspension ball joint requires basic mechanical skills and appropriate tools. The included mounting hardware simplifies the replacement process. Ensure the vehicle is securely lifted and supported before beginning work. Use a 24 mm wrench to tighten the castle nut to the manufacturer’s torque specifications. Verify the cotter pin is properly installed through the cotter pin hole to secure the nut. Since this ball joint is non-greaseable, no additional lubrication is necessary beyond the factory-installed dust boot protection.

Quality Assurance and Warranty

Delphi suspension components are manufactured to meet or exceed OEM standards for fit, form, and function. The TC660 ball joint undergoes rigorous quality control to ensure durability and performance in Toyota 4Runner, Pickup, and T100 applications. While specific warranty details may vary, Delphi typically offers coverage against defects in materials and workmanship to provide confidence in your suspension repair.
