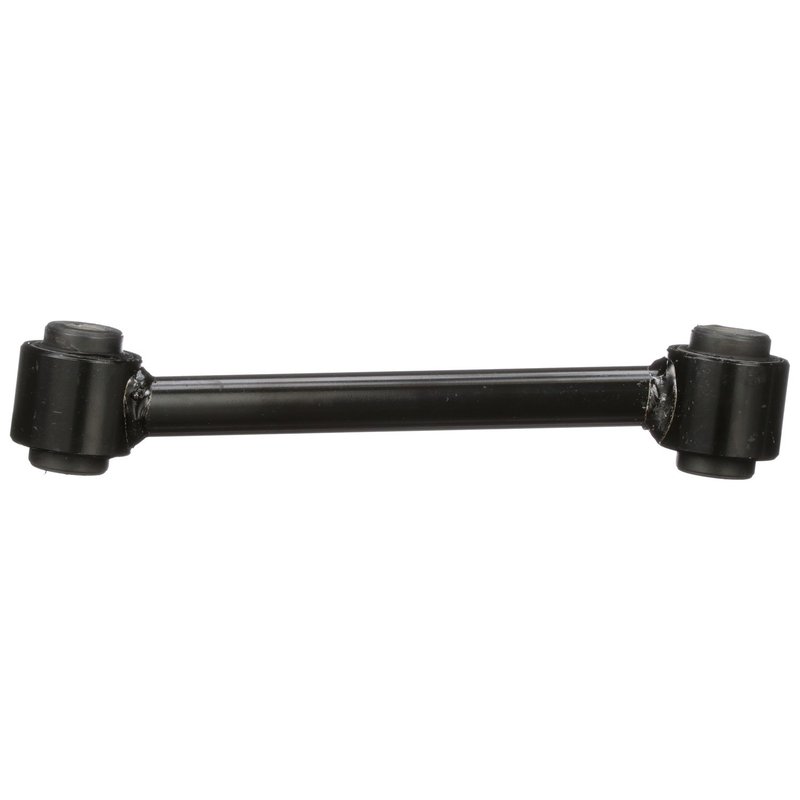

Delphi TC6616 Suspension Control Arm - Rear
| Brand | Delphi TC6616 |
|---|---|
| Position | Rear |
| Adjustable | No |
| Bushing Color | Black |
| Bushing Material | Natural Rubber (NR) |
| Bushings Included | Yes |
| Color | Black |
| Construction | Casting/Forged |
| Distance Between Mounting Holes | 229.0 |
| Friction Material Thickness | E-Coat |
| Grade Type | Regular |
| Height | 82.4 |
| Item Grade | Standard Replacement |
| Length | 273.0 |
| Material | Steel |
| Shape | Straight |
| Width | 44.0 |
| Fits | Mazda · 9 vehicles |
Standard replacement. OE expertise helps ensure compatibility with the original part.
Steel construction. Casting and forging add strength for dependable suspension support.
E-Coat finish. Helps resist corrosion through harsh temperature and salt exposure.
Cross-references TD11-28-500A for the same application. See all 1.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Rear Suspension Control Arm for Mazda CX-9
Delphi TC6616 is a rear suspension control arm built as a standard replacement for select Mazda CX-9 models. It uses steel construction with an e-coat finish, natural rubber bushings, and a straight, non-adjustable design for OE-style fitment and suspension geometry.
Fits 2007-2015 Mazda CX-9, rear. This rear control arm is engineered for drivers looking for a direct replacement part for Mazda CX-9 rear suspension service, including Delphi TC6616 applications.
Key Features
- Steel construction with casting/forged design
- E-coat finish for added corrosion resistance
- Natural rubber bushings included
- Straight, non-adjustable control arm design
- Standard replacement grade for rear suspension service
- Dimensions: 273.0 length, 44.0 width, 82.4 height
- Distance between mounting holes: 229.0
Detailed Description
Delphi TC6616 is a rear suspension control arm for the 2007-2015 Mazda CX-9. Delphi applies OE-focused dimensional and material analysis to help ensure proper fit and consistent suspension performance in aftermarket service. The steel arm, black e-coat finish, and rubber bushings are selected for everyday durability and factory-style replacement needs. This part cross-references Monroe Shocks & Struts (e.g., 172286) for the same application.
Common Repair Uses
- Rear suspension noise from worn bushings
- Excessive play or looseness in the rear suspension
- Uneven tire wear related to worn control arm components
- Restoring rear suspension alignment stability
- Replacing a bent or corroded rear control arm
Installation Notes and Tips
Verify rear position and match the part number TC6616 to the vehicle application before installation. Inspect adjacent suspension components, mounting points, and alignment settings during service. Because this control arm is non-adjustable, final alignment should be checked after installation on the Mazda CX-9.
Quality Assurance
Delphi tests suspension components under extreme temperature conditions and salt-spray exposure to evaluate durability and corrosion resistance. The brand also uses dimensional and material analysis to support OE-style compatibility between the original part and the aftermarket replacement.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2015 | Mazda | CX-9 | Rear | — |
| 2014 | Mazda | CX-9 | Rear | — |
| 2013 | Mazda | CX-9 | Rear | — |
| 2012 | Mazda | CX-9 | Rear | — |
| 2011 | Mazda | CX-9 | Rear | — |
| 2010 | Mazda | CX-9 | Rear | — |
| 2009 | Mazda | CX-9 | Rear | — |
| 2008 | Mazda | CX-9 | Rear | — |
| 2007 | Mazda | CX-9 | Rear | — |
