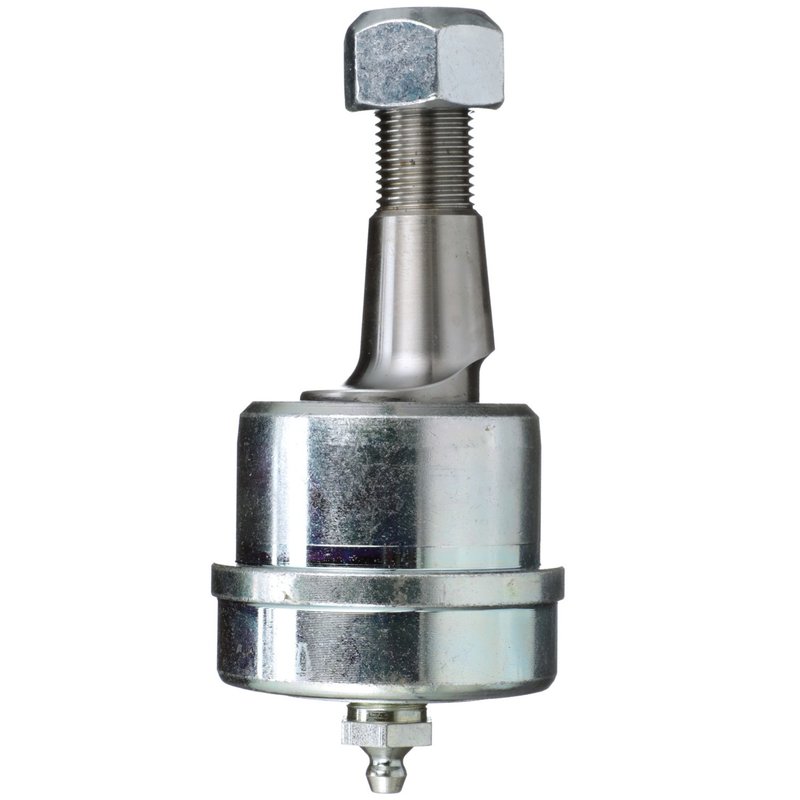

Delphi TC6731 Suspension Ball Joint - Front Upper
| Brand | Delphi TC6731 |
|---|---|
| Position | Front Upper |
| Adjustable | No |
| Ball Joint Assembly | Yes |
| Color | Black |
| Cotter Pin Hole | No |
| Dust Boot Included | No |
| Dust Boot Material | Rubber |
| Greaseable | Yes |
| Height | 3.62 |
| Item Grade | Standard Replacement |
| Material | Steel |
| Maximum Outside Diameter | 2.13 |
| Maximum Outside Diameter | 54.102 |
| Mount Plate Included | No |
| Mounting Type | Press In |
| Nuts Included | Yes |
| Stud Thread Diameter | 16.0 |
| Stud Thread Length | 1.05 |
| Stud Type | Threaded |
| Suspension Grade Type | Standard |
| Tapered Stud | Yes |
| Washers Included | No |
| Fits | Dodge · 9 vehicles |
Standard replacement. Press-in ball joint with OE-style compatibility.
Greaseable design. Helps simplify maintenance and extend service life.
Steel construction. Built with a rubber dust boot and tapered stud.
Cross-references K100313 for the same application. See all 1.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Delphi TC6731 Front Upper Ball Joint
Delphi TC6731 is a standard replacement suspension ball joint for the front upper position on select Dodge Ram heavy-duty trucks. Built with a steel body, threaded tapered stud, and greaseable design, it supports precise steering and suspension movement in demanding service conditions.
Key Features
- Front upper suspension ball joint assembly
- Steel construction with black finish
- Press-in mounting type for OE-style service
- Greaseable design for routine lubrication
- Threaded, tapered stud with 16.0 mm stud thread diameter
- Rubber dust boot material
- Nuts included; dust boot, washers, and mount plate not included
- Standard replacement grade
Detailed Description
Delphi TC6731 is engineered for the front upper suspension position on 2000-2002 Dodge Ram 2500 and 2000-2002 Dodge Ram 3500 applications. It cross-references Monroe Shocks & Struts 172286 for the same application. Delphi applies OE-focused dimensional and material analysis to help ensure proper fit and consistent suspension performance, and the part is tested for extreme temperature exposure and salt-spray resistance to support long-term durability in harsh road conditions. This part number, TC6731, is a practical choice for drivers servicing Dodge Ram 2500 front upper suspension or Dodge Ram 3500 front upper suspension components.
Common Repair Uses
- Restores worn front upper ball joint movement
- Addresses looseness or play in the front suspension
- Helps correct steering feel affected by joint wear
- Supports alignment stability on Ram 2500 and Ram 3500 trucks
- Replaces a damaged press-in upper ball joint assembly
Installation Notes
Compatible with 2000-2002 Dodge Ram 2500, front upper, adjustable type with camber/caster plus or minus 1-1/2 degrees. Compatible with 2000-2002 Dodge Ram 3500, front upper, minus 1-1/2 degree to plus 1-1/2 degree camber/toe, including solid front axle applications where listed. Press-in installation requires proper suspension service tools and a professional alignment after replacement. Verify stud thread diameter, mounting style, and position before installation. Part number TC6731 should be matched to the vehicle’s exact front upper application.
Quality Assurance
Delphi uses OE-oriented engineering and validation methods for its steering and suspension portfolio. This ball joint is evaluated across temperature extremes and salt-spray exposure, with dimensional and material checks used to support OE-to-aftermarket compatibility.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2002 | Dodge | Ram 2500 | 4WD | Front Upper | Adjustable Type; Camber / Caster Plus or Minus 1-1/2 Degrees |
| 2002 | Dodge | Ram 3500 | RWD | Front Upper | Minus 1-1/2 Degree To Plus 1-1/2 Degree Camber/Toe; with Solid Front Axle |
| 2002 | Dodge | Ram 3500 | 4WD | Front Upper | Minus 1-1/2 Degree To Plus 1-1/2 Degree Camber/Toe |
| 2001 | Dodge | Ram 2500 | 4WD | Front Upper | Adjustable Type; Camber / Caster Plus or Minus 1-1/2 Degrees |
| 2001 | Dodge | Ram 3500 | RWD | Front Upper | Minus 1-1/2 Degree To Plus 1-1/2 Degree Camber/Toe; with Solid Front Axle |
| 2001 | Dodge | Ram 3500 | 4WD | Front Upper | Minus 1-1/2 Degree To Plus 1-1/2 Degree Camber/Toe |
| 2000 | Dodge | Ram 2500 | 4WD | Front Upper | Adjustable Type; Camber / Caster Plus or Minus 1-1/2 Degrees |
| 2000 | Dodge | Ram 3500 | RWD | Front Upper | Minus 1-1/2 Degree To Plus 1-1/2 Degree Camber/Toe; with Solid Front Axle |
| 2000 | Dodge | Ram 3500 | 4WD | Front Upper | Minus 1-1/2 Degree To Plus 1-1/2 Degree Camber/Toe |
