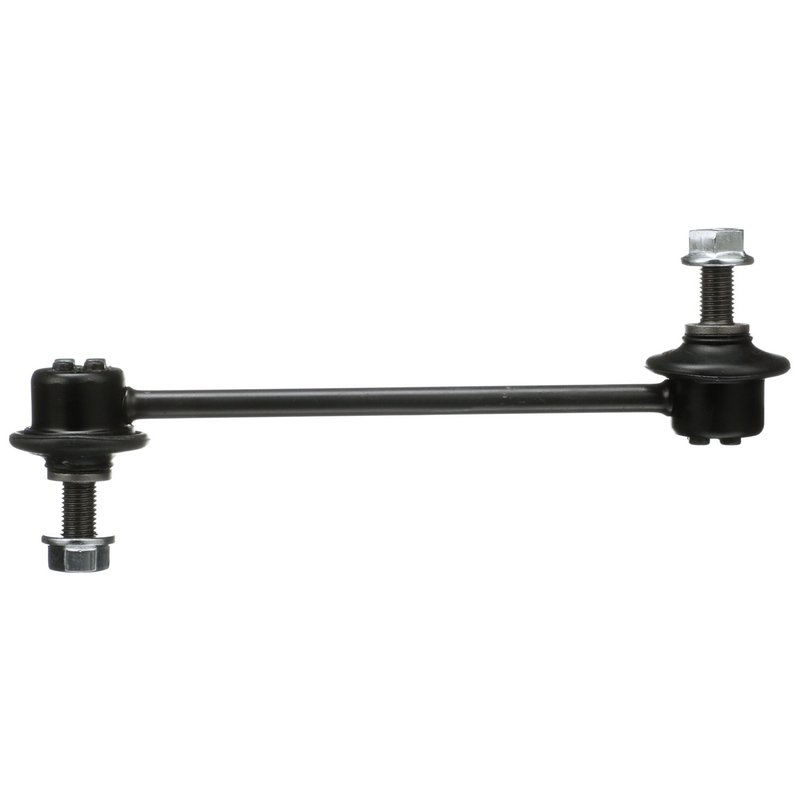

Delphi TC6749 Suspension Stabilizer Bar Link - Rear
| Brand | Delphi TC6749 |
|---|---|
| Position | Rear |
| Bearing Material | Polyoxymethilen (POM) |
| Bolts Included | No |
| Bushings Included | No |
| Distance Between Mounting Holes | 176.0 |
| Dust Boot Included | Yes |
| End 1 Type | Male |
| End 2 Type | Male |
| Grade Type | Performance |
| Greaseable | No |
| Height | 3.425 |
| Height | 87.0 |
| Housing Material | Steel |
| Item Grade | Standard Replacement |
| Length | 8.268 |
| Length | 210.0 |
| Locking Nuts Included | Yes |
| Material | Ball Pin - Steel |
| Washers Included | No |
| Weight | 0.55 |
| Width | 1.339 |
| Width | 34.0 |
| Wrench Size | 0.197 |
| Wrench Size | 5.0 |
| Fits | Mazda · 2 vehicles |
Standard replacement. OE expertise helps ensure compatibility with the aftermarket part.
Steel construction. Ball pin and housing materials are built for dependable suspension performance.
Dust boot included. Helps protect the joint from contamination and wear.
Cross-references MOOG Chassis Products K80489, 101-5720 and T001-28-170B for the same application. See all 5.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Rear Stabilizer Bar Link for Mazda Millenia
Delphi TC6749 is a rear suspension stabilizer bar link built for OE-style replacement on select Mazda Millenia applications. It uses a steel ball pin and steel housing with a POM bearing material and a dust boot to support consistent sway bar connection performance.
Fits 2001-2002 Mazda Millenia, rear. Delphi applies OE-focused dimensional and material analysis to help match the original part geometry and fitment requirements for this application.
Key Features
- Part number: TC6749
- Rear suspension stabilizer bar link
- Steel ball pin and steel housing
- POM bearing material for the link assembly
- Dust boot included
- Male end 1 and male end 2 configuration
- Standard replacement grade
- Locking nuts included
- Non-greaseable design
Detailed Description
This Delphi stabilizer bar link is engineered for rear suspension service on the 2001-2002 Mazda Millenia. The link connects the sway bar to the suspension assembly, helping maintain proper chassis response and steering feel over uneven road surfaces. Delphi validates its aftermarket steering and suspension components with extreme temperature exposure and salt spray testing, along with dimensional and material analysis to support OE-style fit and durability. This part cross-references MOOG Chassis Products K80489 for the same application.
Common Issues This Part Can Address
- Clunking or rattling from the rear suspension
- Excessive sway bar movement at the rear axle
- Loose or worn stabilizer link joints
- Uneven handling response during cornering
- Noise caused by deteriorated rear suspension linkage
Installation Notes and Tips
Verify rear position and match the original link length, end type, and mounting-hole spacing before installation. Inspect adjacent sway bar bushings, control arm bushings, and mounting points for wear, since related suspension play can affect the new link’s performance. Use the included locking nuts during installation and torque fasteners to the vehicle manufacturer’s specification.
Quality Assurance
Delphi uses OE-based engineering practices for its aftermarket steering and suspension portfolio. This TC6749 stabilizer bar link is tested for temperature extremes and salt spray exposure, with material and dimensional checks used to support proper fit and consistent performance on the Mazda Millenia rear suspension.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2002 | Mazda | Millenia | Rear | — |
| 2001 | Mazda | Millenia | Rear | — |
